Trail Gear Tube Clamps – 180128-KIT

Trail Gear

Shop Trail Gear Tubing Clamp on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

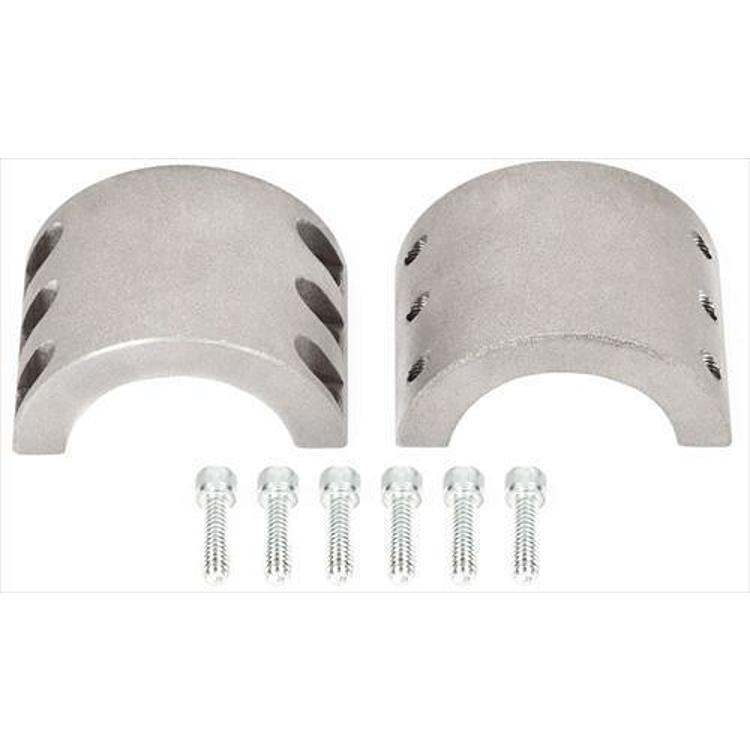

  • Trail Gear 1.25 in tube clamp, kit 180128-KIT
  • 1020 steel with clamping force up to 8,600 lb
  • Two clamp halves with zinc plated screws
  • Universal fit, sold individually

Description

Overview

The Trail Gear 1.25 in tube clamp, kit 180128-KIT, is a two-half 1020 steel clamp for mounting suspension and steering brackets onto tubing without welding. The short copy lists zinc plated screws and two clamp halves in the kit.

The clamp is designed for situations where a bracket must be adjusted or removed later. It suits aluminum suspension links and steering rods that cannot take welded steel brackets, and it provides a clamping force of up to 8,600 lb. It is sold individually and fits 1.25 inch tubing as a universal fit.

Key features

  • Two clamp halves with zinc plated screws
  • 1020 steel construction
  • 1.25 inch size
  • Clamping force up to 8,600 lb.
  • Lets steel brackets attach to aluminum links and rods without welding

Tube clamp basics

A tube clamp holds a bracket to round tubing by tightening two halves around the tube, so the bracket can be moved or taken off later without cutting or welding. That makes it useful on aluminum links and steering rods, where heat from welding can weaken the metal or change its finish. Clamps like this work by friction, so the tube surface and the clamp bore both need to be clean and free of paint, grease and loose scale before assembly.

Check the clamp after the first few drives. Vibration can loosen the screws, and the tube can settle slightly under load. Retighten the screws evenly, alternating between them, and look for any movement of the bracket on the tube. Replace a clamp that shows cracks, deep gouges or a bore that no longer grips the tube.

  • Confirm the tube is round and free of dents at the clamp location
  • Use a bracket rated for the loads on that link or rod
  • Keep the bracket clear of moving parts and exhaust heat

Specifications

Brand Trail Gear
Part number 180128-KIT
UPC 70000621428
Tube size 1.25 in
Material 1020 steel
Clamping force Up to 8,600 lb
Hardware Zinc plated screws
Pieces 2 clamp halves

Vehicle fitment

It is a universal fit at 1.25 inches, so it is not made for a particular vehicle. Match it to your tube diameter and bracket.

No vehicle years, makes or models are given for this clamp, so confirm the tube size before ordering.

What’s included

The short copy lists two clamp halves and zinc plated screws.

Not included: Plan to supply your own mounting bracket, and check the package contents against your installation before starting.

SKU: TGI180128-KIT Category:

Specification

Shipping weight 2.00 lbs
Package dimensions 7.50 × 7.50 × 3.50 in
brands

Questions & Answers

What tube diameter is the 180128-KIT clamp?

The clamp is listed at 1.25 inches. Confirm your tube's outside diameter before ordering, because the clamp is sized to tubing rather than to a vehicle.

What hardware is included with the 1.25 in clamp?

The kit includes two clamp halves and zinc plated screws. Plan to supply your own bracket for the suspension or steering component you are mounting, and check the contents against your installation before starting.

Is the clamp made from steel or aluminum?

The clamp is manufactured from 1020 steel. It is designed to hold steel brackets to aluminum suspension links and steering rods.

Is the 180128-KIT vehicle specific?

No vehicle years, makes or models are listed. The clamp is universal fit, so choose it by the 1.25 inch tube size and the bracket you are mounting.

Should the clamp be retightened after installation?

Yes. Recheck the screws after the first few drives, since vibration and settling can loosen a clamp. Tighten them evenly, working back and forth between the two screws, and inspect the tube for scratches or movement.
