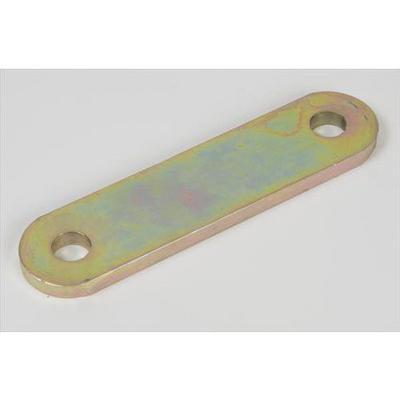

Trail Gear 5″ Greasable Shackle Plate – 111311-1-KIT

Trail Gear

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5 inch greasable shackle plate for 1979-1995 Toyota pickups and 1984-1995 4Runners
  • Threaded zerk fittings and 18 mm factory size bolts with crimp nuts
  • Polly bushings included
  • Zinc plated plates
  • Part number 111311-1-KIT from Trail Gear

Description

Overview

The Trail Gear 5 Inch Greasable Shackle Plate, part 111311-1-KIT, is a 5 inch greasable shackle plate for the 1979-1995 Toyota Pickup and the 1984-1995 Toyota 4Runner. It can be used at the front or rear.

The plate is intended for use with Trail Gear leaf springs and is not an OEM replacement. Its length is measured center of hole to center of hole, and stock shackles measure 3.5 inch between holes.

Check the spring eye centers before ordering so the plate lines up.

Key features

  • 5 inch center-to-center length
  • Threaded zerk fittings for greasing
  • Factory size 18 mm bolts with crimp nuts
  • Polly bushings included
  • Zinc plated plates
  • Front or rear position

Spring eye spacing

Shackle length sets how far the spring ends reach and how the rear of the truck sits at rest. Measuring the spring eye centers before installation helps confirm that a new plate lines up with the spring and does not pull the spring out of position. Greasing the joints regularly keeps the polly bushings from wearing into the sleeve.

After installation, drive over a few bumps and then recheck the crimp nut torque and the bolt condition. Look for cracked bushings, grease leaking from the zerk fittings, and binding at the pivot. A longer shackle can also change driveline angle, so inspect the rear driveshaft and brake lines after the first few drives.

  • Measure spring eye centers before ordering
  • Recheck crimp nuts after the first drives
  • Inspect polly bushings for cracking

Specifications

Brand Trail Gear
Part number 111311-1-KIT
Length 5 inch, center to center of holes
Stock shackle length 3.5 inch between holes
Bolts Factory size 18 mm with crimp nuts
Bushings Polly bushings included
Finish Zinc plated

Vehicle fitment

It fits the 1984-1995 Toyota 4Runner in DLX and SR5 trims, and the 1979-1995 Toyota Pickup in Base, Base Turbo, DLX, DLX Turbo, SR5 and SR5 Turbo trims.

Confirm fit for your vehicle’s year, model and trim before ordering, since the plate is sized for the Toyota pickup and 4Runner years covered.

What’s included

One 5 inch greasable shackle plate with its polly bushings and threaded zerk fittings.

Fitment

VehicleYearsTrims
Toyota 4Runner1984–1995DLX, SR5
Toyota Pickup1979–1995Base, Base Turbo, DLX, DLX Turbo, SR5, SR5 Turbo

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will 111311-1-KIT fit a 1990 Toyota pickup?

Yes, 1990 falls within the 1979-1995 Toyota Pickup range. Trims such as DLX, SR5 and Base are covered. Confirm your trim before ordering.

Is this an OEM replacement?

No. The plate is intended for use with Trail Gear leaf springs and is not an OEM replacement. Fitting it to other springs requires a separate check of spring eye centers.

Does the plate come with bushings?

Yes. The kit includes polly bushings and threaded zerk fittings for greasing the joints. The bolts are factory size 18 mm with crimp nuts.

Will a longer shackle change ride height?

Yes. A longer shackle changes the angle of the spring, which can raise the rear of the vehicle and alter the driveline angle. Check the driveline and brake lines after installation and recheck the axle alignment.
