Overview

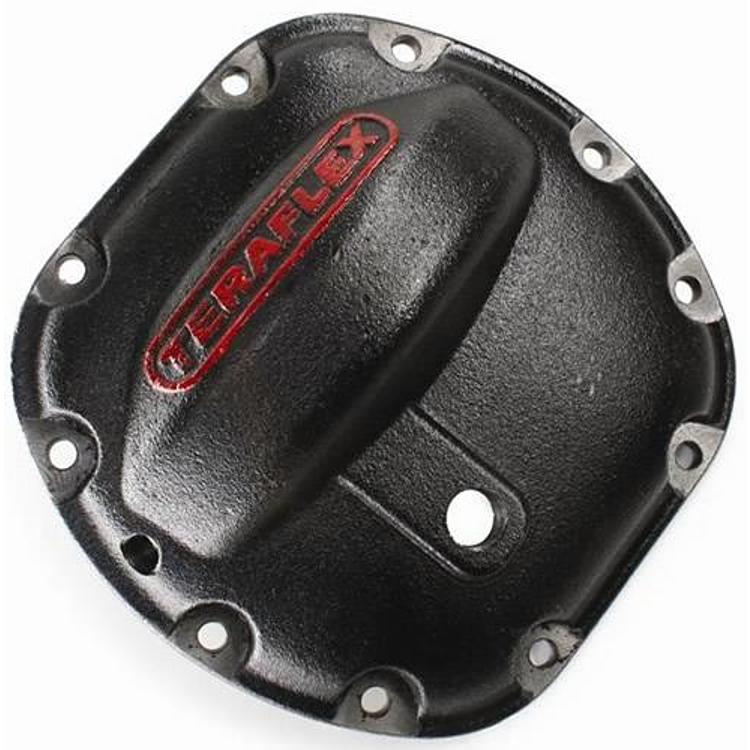

The TeraFlex 3990630 is a Dana 30 differential cover in the HD30 range, built to protect the differential from rocks, obstacles and trail debris. Its walls are more than 3/8in. thick.
Listed axle locations are front and rear. The named axle types include Dana 30 Standard, Dana 25, Dana 30 JK, Dana 27, Dana 30 Reverse and Dana 30 TJ, and no vehicle is named.
Key features
- Built for protection from rocks, obstacles and trail debris
- Walls more than 3/8in. thick
- Iron construction with a powder-coated finish
- Extra oil capacity listed
Trail protection and oil level
A differential cover acts as a shield between the carrier and rocks, stumps and trail debris, so a thick iron cover can save the housing from damage on rough routes. Heavier covers add weight low on the axle, which some drivers accept for the added protection, while others prefer a lighter option for daily use.
Extra oil capacity on a cover can help keep gears cool under heavy use, but the fill level should still be set at the fill plug. Drain and inspect the fluid at each service, and replace the gasket whenever the cover is removed, since a reused gasket is a common leak point.
- Set fill level at the fill plug
- Replace the gasket with each removal
- Look for dents near the flange
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 3990630 |
| UPC | 843885002666 |
| Axle location | Front and rear |
| Axle types | Dana 25; Dana 27; Dana 30 Standard; Dana 30 Reverse; Dana 30 TJ; Dana 30 JK |
| Material | Iron |
| Wall thickness | More than 3/8in. |
| Finish | Powder coated |
| Oil capacity | Extra capacity |
Vehicle fitment
The TJ and JK labels are axle types, so compare the axle housing on your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Look over the package contents before you begin the install.
