Overview
The TeraFlex 1451400 is a 4 inch suspension system for the Jeep Wrangler JK, with 4 inch extended length coils, shocks, and upper and lower FlexArms for both the front and rear. The short details list it for four-door models.
The system allows up to 37 inch tires, and aftermarket wheels with 4.5 inch backspacing or less suit it best. The kit also includes front sway bar disconnects, a rear track bar bracket, bump stops and all necessary hardware.
Driveline modifications are required with this system. Confirm the shock package before ordering.
Key features
- 4 inch lift with extended length coils
- Upper and lower FlexArms at the front and rear
- Front sway bar disconnects
- Rear track bar bracket
- Bump stops
- All necessary hardware included
- Up to 37 inch tires
Driveline and control arm checks
A four inch system changes the angles of the driveshafts and the control arms more than a small lift does. Steeper driveline angles can cause vibration, and a worn u-joint may show up sooner. Check the driveshaft length and joint condition before the lift is installed, and again after the first highway trip.
Upper and lower arms hold the axle in position, so their bushings and ends carry the load of bigger tires and rough trails. Inspect the bushings for cracking, grease leaks and play. Sway bar disconnects should also be checked for free movement, since a stuck link limits articulation.
Bump stops take on more work with a taller ride, so their condition matters on uneven ground. Keep the steering components, tie rod ends and brake lines in view after big trail days. A simple inspection at each oil change catches most early wear.
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1451400 |
| UPC | 843885021643 |
| Lift | 4 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Short arm |
| Rear lift method | Coil springs |
| Body style | Four-door models |
| Tire clearance | Up to 37 inches |
Vehicle fitment
The Jeep Wrangler JK generation covers 2007–2018 models, and this system fits four-door bodies.
Two-door Wranglers and other generations are not covered by the four-door configuration in the short details. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Driveline modifications are required with this suspension system, so check the driveshaft and the driveline angles before installing the kit. The upper and lower FlexArms change the control arm geometry, so the alignment should be checked afterward.
What’s included

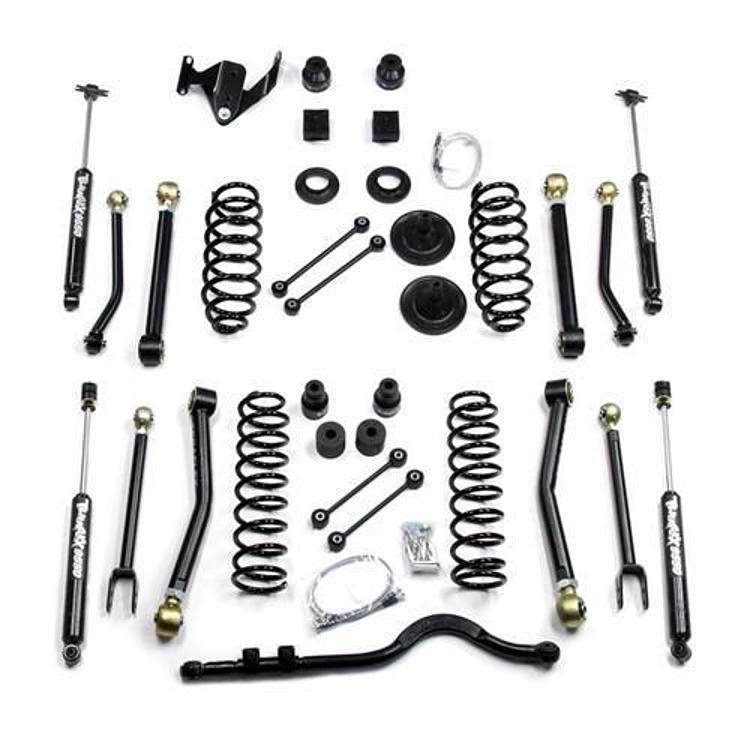

The kit includes 4 inch extended length coils, shocks, upper and lower FlexArms for the front and rear, front sway bar disconnects, a rear track bar bracket, bump stops and all necessary hardware.
