Overview
The K3100B is a 3.5-inch stage 1 coil spring lift with ES9000 front and rear shocks for the Jeep Wrangler JK. It covers 2007–2018 two-door and Unlimited four-door bodies in the Sport S, X, Sport, Sahara, Rubicon, 75th Anniversary and 70th Anniversary trims.
The kit uses coil springs at the front and rear, and all hardware needed for installation is included. ES9000 shocks are fitted at both ends. The lift height range is 3 to 4.99 inches.
The maximum tire size is 35×12.50, and the kit calls for a wheel size of 16 inches or larger. Those figures should be checked against the wheels and tires you plan to run, because the wheel size sets how much clearance the larger tires need under the raised body.
Key features
- 3.5-inch stage 1 lift
- Front and rear coil springs
- All necessary hardware included

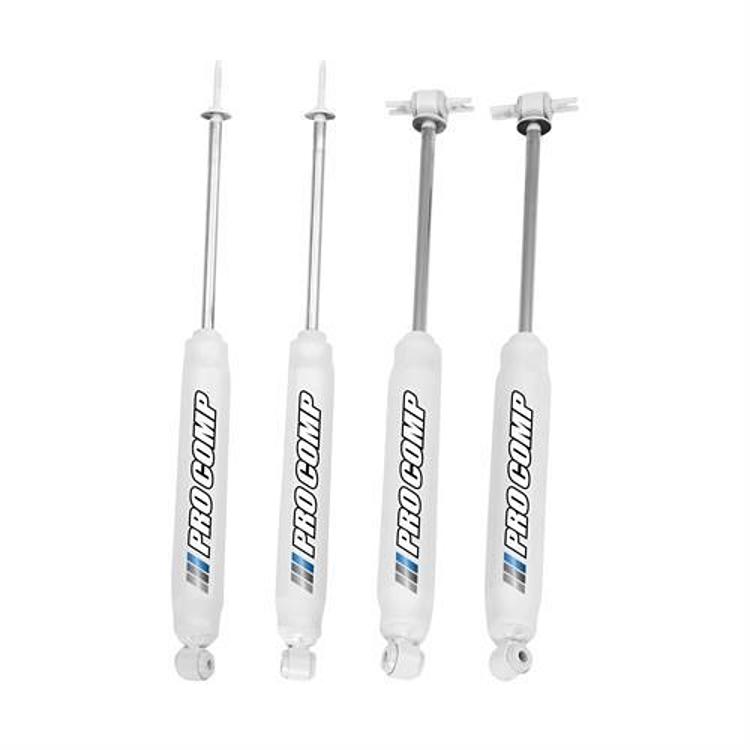

- ES9000 front and rear shocks
- Maximum tire size 35×12.50
- Wheel size 16 inches or larger
Clearance and tire size
Tire size sets how much room the springs and steering components need, so the 35×12.50 maximum should be matched to wheel width and offset. Larger tires put more load on the axles and steering, so wheel bearings and tie rod ends are worth inspecting as the truck is driven more.
At a 3.5-inch lift the steering and brake lines sit at a new angle, so check them for clearance at full lock and full droop. A coil spring lift also raises the center of gravity, which makes secure loading and a careful roof rack setup more important.
- Check steering lines at full lock
- Inspect brake hoses at full droop
- Review wheel offset before mounting tires
- Recheck hardware after the first drive
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K3100B |
| UPC | 614901056624 |
| Lift | 3.5 inches, stage 1 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Front lift | Coil springs |
| Rear lift | Coil springs |
| Front shocks | ES9000 |
| Rear shocks | ES9000 |
| Hardware | All necessary hardware included |
| Max tire size | 35×12.50 |
| Wheel size range | 16 inches or larger |
Vehicle fitment
Fits 2007–2018 Jeep Wrangler (JK) models in the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims, including both two-door and Unlimited bodies. This kit is for the JK generation only. Confirm your trim against your vehicle before ordering.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A coil spring lift of this height changes the caster and the driveline angles, so have the front alignment set and the driveline angles checked after installation. Check the steering and brake lines for clearance at the new ride height, and recheck the hardware once the truck has been driven.
What’s included

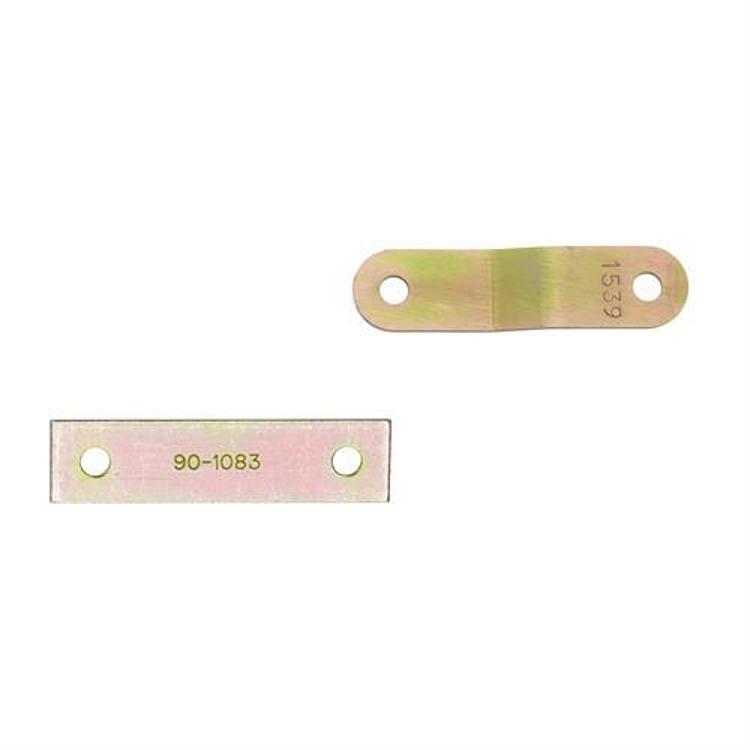

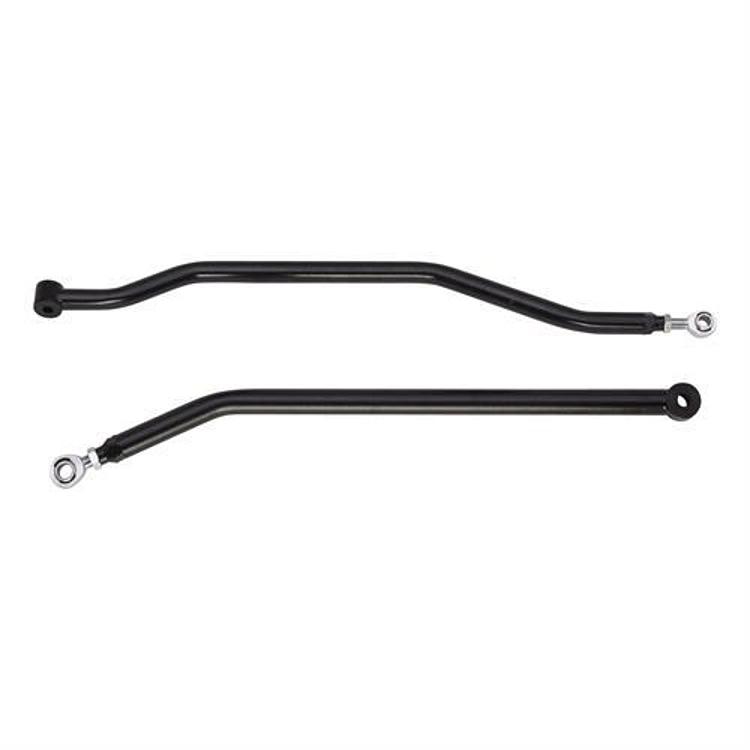

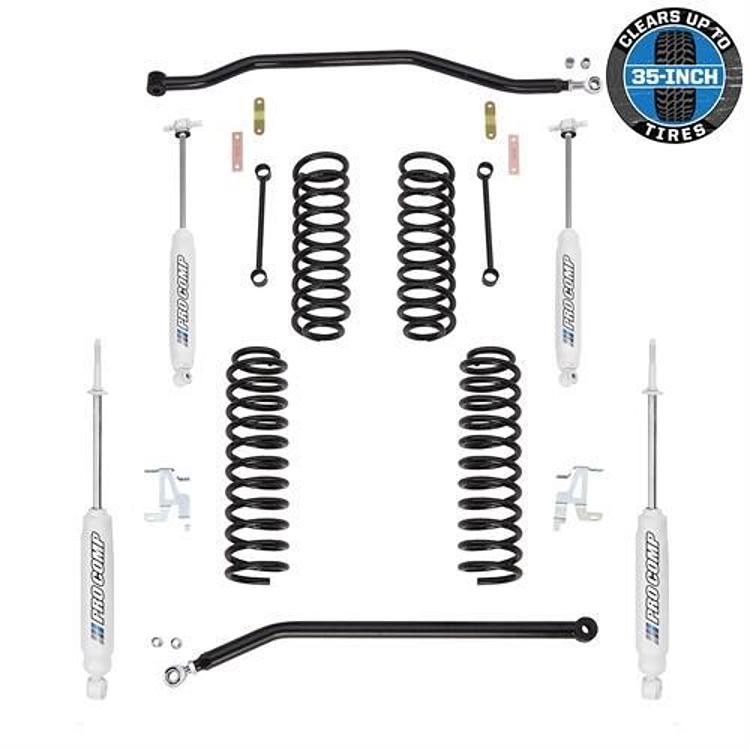

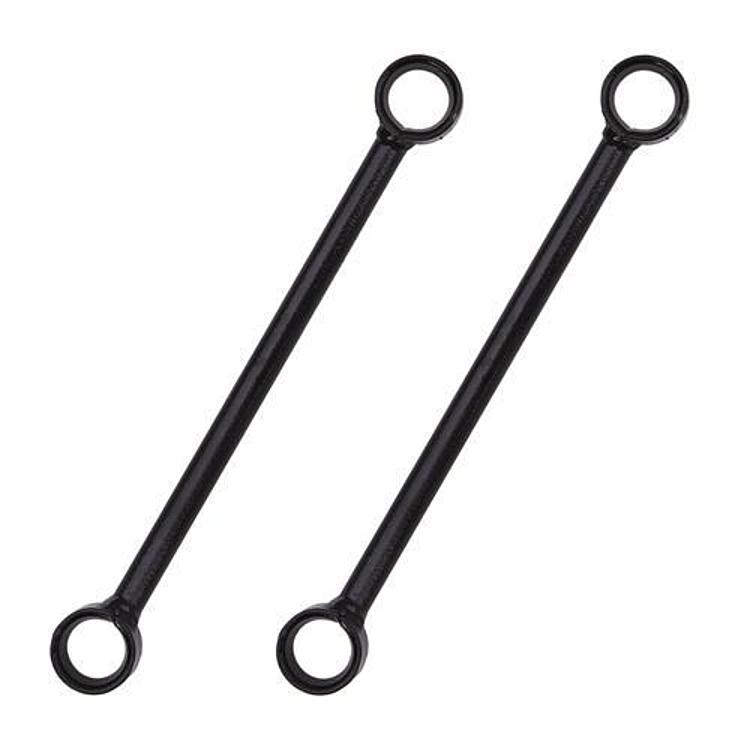

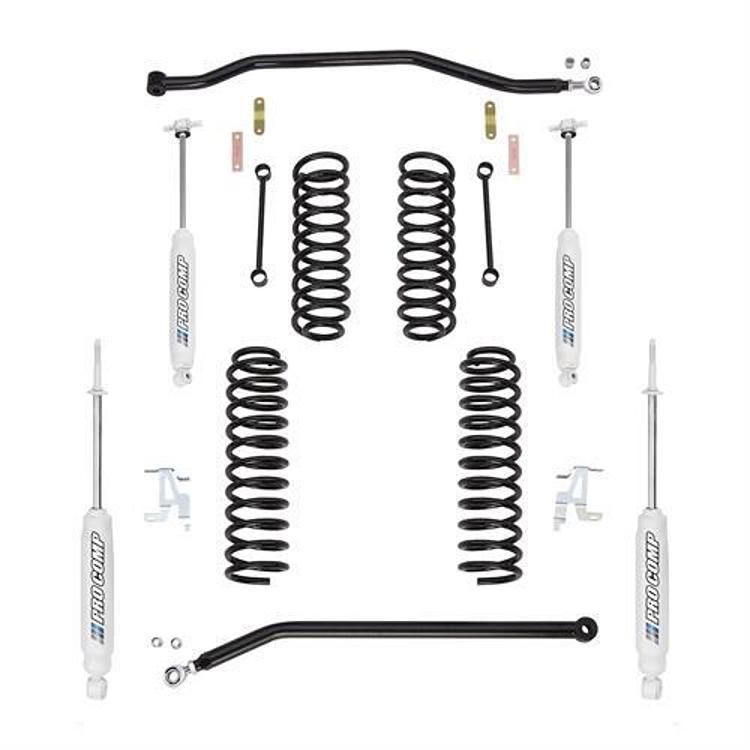

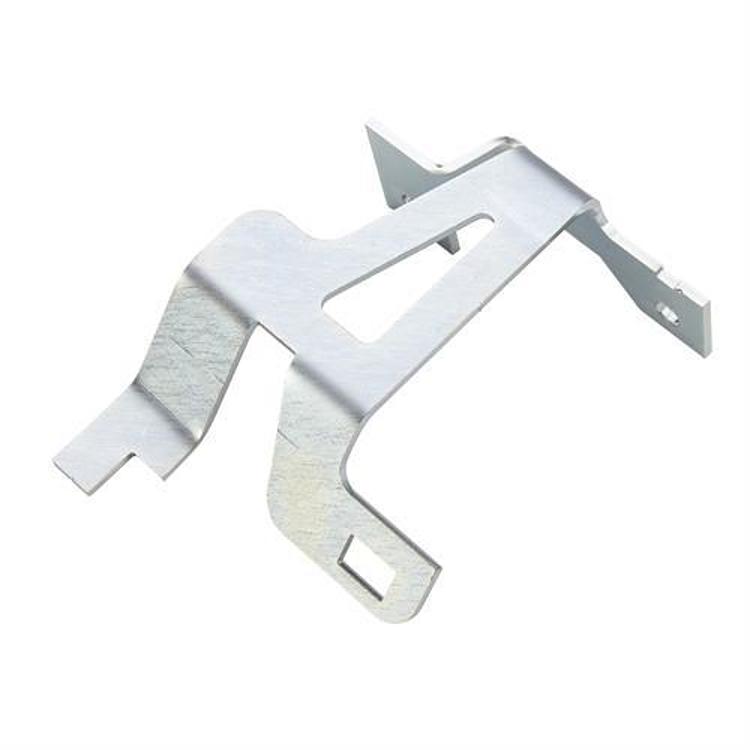

The kit includes front and rear coil springs, all the hardware needed for installation, and ES9000 front and rear shocks.
