Overview
The TeraFlex 1151400 is a 4 inch JK suspension lift kit for four-door 2007–2015 Jeep Wranglers. It fits the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited and X models, including Rubicon and Unlimited.
The kit includes front sway bar disconnects, a rear track bar bracket, bump stops and all necessary hardware. It allows up to a 37 inch tire, with aftermarket wheels that have 4.5 inch backspacing or less.
Driveshaft modifications are required on two-door JK Wranglers and may be necessary on four-door Unlimited models with this suspension system.
Key features
- 4 inch lift
- Front sway bar disconnects
- Rear track bar bracket
- Bump stops
- All necessary hardware included
- Up to 37 inch tires with aftermarket wheels of 4.5 inch backspacing or less
Shocks and driveline setup
Shocks do a lot of the work after a lift. When the ride height goes up, the old shocks may be too short to reach their mounts or too long to control the springs properly. Checking shock length and travel before installation prevents bind at full droop and helps the suspension stay controlled on rough trails.
The driveline is the other big consideration. A higher ride changes the angles of the driveshaft joints, and steeper angles can cause vibration, pinion wear or U-joint failure over time. Taking measurements after installation and planning driveshaft work before the first trail trip keeps the setup reliable. Wheel and tire choices matter too, since a larger tire adds rotating mass and can rub at full lock.
- Measure shock length before ordering
- Check driveline angles at full droop
- Inspect U-joints at every oil change
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1151400 |
| UPC | 843885019879 |
| Lift | 4 inch |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Body style | Four-door models |
| Max tire size | 37×12.50 |
| Shocks | Not included. Shocks are not part of this kit. |
Vehicle fitment
The kit fits the 2007–2015 Jeep Wrangler (JK) range, including 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models.
Two-door Wranglers require driveshaft modifications with this kit, and four-door Unlimited models may need them. Years outside 2007–2015 are not covered here. Match year, model and trim to your vehicle before you order.
Installation notes
Driveshaft modifications are required on two-door JK Wranglers and may be necessary on four-door Unlimited models. Check the driveline angles after installation, and confirm the shock length, since the short details list shocks as not included.
What’s included

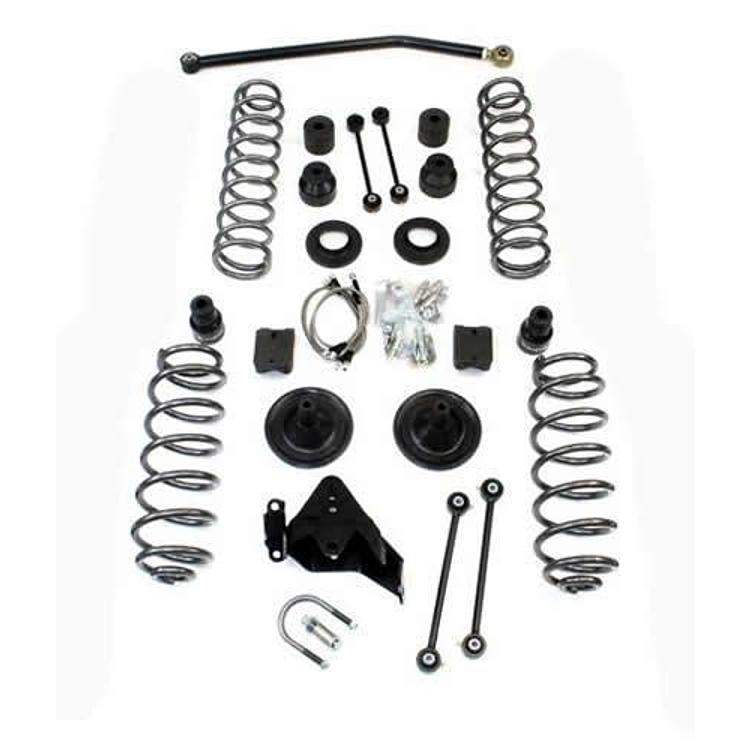

The kit includes a 4 inch lift, front sway bar disconnects, a rear track bar bracket, bump stops and all necessary hardware.
