Overview
The Rancho 4-inch Sport Lift Kit, part number RS66102B, is a coil spring kit for 2007 to 2018 Jeep Wrangler (JK) models. It lifts the vehicle 4 inches and has a maximum tire size of 35×12.50.
The kit includes an adjustable front track bar, steel braided front brake lines, front and rear bump stops and sway bar brackets. It is finished in black.
The adjustable front track bar is included to help set the front geometry at the new height. Steel braided front brake lines and front and rear bump stops are part of the kit, along with sway bar brackets.
Key features
- 4-inch lift
- Coil spring kit with rear coil springs
- Adjustable front track bar
- Steel braided front brake lines
- Front and rear bump stops
- Sway bar brackets
Coil spring lift basics
Coil spring lift kits replace or add springs to raise the vehicle, and the new height depends on how the springs and other parts are matched. Shocks are often replaced at the same time because the original units were tuned for the stock ride height. A kit with a front track bar also affects steering geometry, so the track bar and bump stops should be inspected during installation.
On the trail, coil springs give a firmer feel over rough ground when paired with the right shocks. Brake line and sway bar clearance should be checked after the lift. Re-check the fasteners after the first few trail runs and look for worn bushings on the track bar.
- Inspect track bar bushings
- Check brake line routing
- Confirm shock length for the new height
- Look for fluid leaks at the shocks
Specifications
| Brand | Rancho |
|---|---|
| Part number | RS66102B |
| Lift height | 4 inches |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Finish | Black |
| Maximum tire size | 35×12.50 |
| Shocks | Not included |
Vehicle fitment

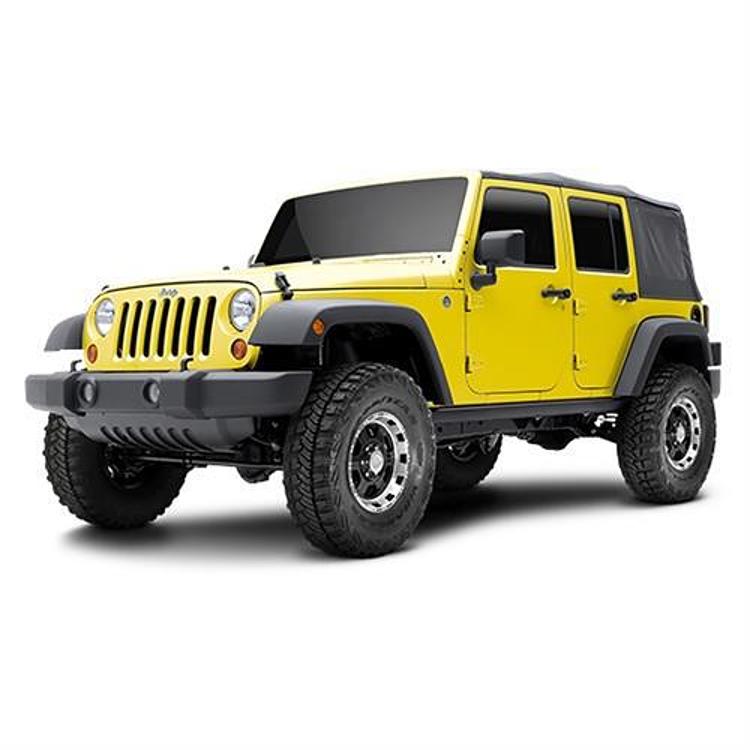

It fits 2007 to 2018 Jeep Wrangler (JK) models, including the Unlimited four-door versions.
Confirm your vehicle’s year, model and trim before ordering.
What’s included
Adjustable front track bar, steel braided front brake lines, front and rear bump stops, and sway bar brackets. Not included: shocks.
