Overview
The TeraFlex 1251220 is a 3 inch suspension lift kit for the 2007–2015 Jeep Wrangler (JK). It comes with shocks and fits the 70th Anniversary, Rubicon, Sahara, Sport, Unlimited and X trims, and it is built for serious trail use.
The kit includes 3 inch lift coil springs and 9550 VSS shock absorbers, along with a front adjustable track bar and front sway bar disconnects. The rear uses sway bar links, a track bar bracket and bump stops. It allows a tire of up to 35 inches and requires aftermarket wheels with 4.5 inch backspacing or less.
Suspension geometry, roll center and load tuning are engineered to keep the factory stability controls working within Jeep’s original parameters. Driveshaft work is advised with this system. 2012 and later JKs need exhaust spacers, part number 2610000, or another exhaust modification for driveshaft clearance.
Key features
- 3 inch lift height range
- 3 inch lift coil springs
- 9550 VSS shock absorbers included
- Front adjustable track bar
- Front sway bar disconnects
- Rear sway bar links and rear track bar bracket
- Bump stops and all necessary hardware
- Up to 35 inch tires with 4.5 inch backspacing or less wheels
Before you install
A suspension lift raises the body by changing the springs and control arm geometry, which changes how the axles sit under the vehicle. On the trail, extra clearance helps with rocks and ruts, but it also shifts the center of gravity, so loads and tire pressure matter more than they did at stock height. Driveline angles are the first thing to check after any lift. Steeper angles can cause vibration and premature joint wear, which is why driveshaft work is often done alongside the springs.
Before ordering, look at the rest of the vehicle. Bumpers, steering components, brake lines and the transfer case shift can all be affected by a taller setup, and a bigger tire adds load to the hubs and bearings. Plan for a full alignment once the lift is in, and recheck the torque on every fastener after the first few drives. Worn shocks or bushings that were already tired will show up quickly on a higher ride.
- Check driveline angles after installation
- Recheck fastener torque after the first few drives
- Schedule an alignment once the lift is complete
Specifications
| Brand | TeraFlex |
|---|---|
| Part number | 1251220 |
| UPC | 843885020554 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Rear lift method | Coil springs |
| Front shocks | 9550 VSS |
| Max tire size | 35 inch |
| Wheel requirement | Aftermarket wheels with 4.5 inch backspacing or less |
Vehicle fitment
This kit covers the 2007–2015 Jeep Wrangler (JK), including 70th Anniversary, Rubicon, Sahara, Sport, Unlimited 70th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited X and X models.
Wrangler model years outside 2007–2015, including the 2016 and later JK and the JL, fall outside this fitment. Confirm fit for your vehicle’s year, model and trim before ordering.
Installation notes
Driveshaft modifications are recommended with this system, and 2012 and later JKs need exhaust spacers or another exhaust modification for driveshaft clearance. Check the alignment and the driveline angles after the lift is installed.

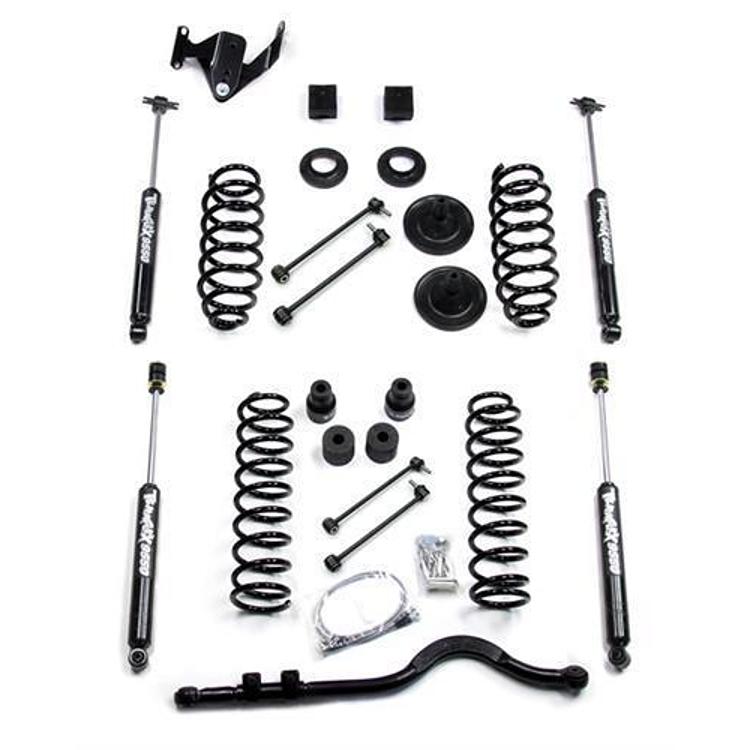

What’s included
The kit includes 3 inch lift coil springs, 9550 VSS shock absorbers, a front adjustable track bar, front sway bar disconnects, rear sway bar links, a rear track bar bracket, bump stops and all the necessary hardware.
