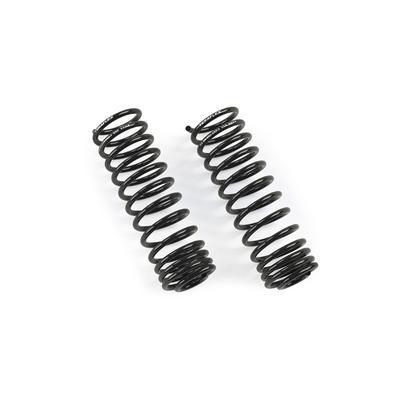

TeraFlex 3.5″ Lift Rear Coil Springs – 1873100

TeraFlex

$337.44In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 18, 2026 11:00 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • TeraFlex 3.5-inch rear lift coil springs
  • Progressive triple-rate design
  • Height range 2 to 3.5 inches
  • Fits 2020–2026 Jeep Gladiator

Description

Overview

The TeraFlex 3.5″ Lift Rear Coil Springs (part number 1873100) are black rear lift springs for the Jeep Gladiator JT. TeraFlex lists them for the 2020–2026 Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S models, and gives a height range of 2 to 3.5 inches.

The rear springs use a progressive triple-rate design. The softer upper section unwinds as the axle droops, which helps flex and spring retention, while the stiffer lower section adds stability when towing. The towing coils are lowered to improve ride quality when the truck is unloaded.

The progressive design keeps performance consistent during normal street driving, with handling close to that of a linear rate spring. The springs are built to work on the road, off road and while towing.

TeraFlex says these coil springs and its Falcon Performance SP2 Mode Adjust shock absorbers were engineered together to improve both compression and rebound, for stability when the vehicle is loaded or towing. Owners running other shock absorbers should check the match with that shock maker.

Key features

  • 3.5-inch rear lift for the Gladiator
  • Progressive triple-rate design
  • Consistent, predictable handling on the street
  • Softer upper coil for flex as the axle droops
  • Stiffer lower coil for stability while towing
  • Towing coils lowered for unladen ride quality
  • Black finish

Choosing between rear spring rates

Rear springs come in linear and progressive designs, and the choice changes how the rear feels at light load and under heavy load. A progressive spring gives a softer start for flex and a firmer finish for towing, which suits a truck used both unloaded and loaded.

A rear lift changes the geometry of the axle and driveshaft, so check the driveshaft angle and brake line length after installation. Shock absorbers and springs are usually matched as a set, so compare their lengths and mounts before buying. Worn rear bushings and bump stops are commonly replaced at the same time.

  • Match shocks to the spring design
  • Check the driveshaft angle after the lift
  • Inspect rear bump stops and bushings
  • Re-check fasteners after the first drives

Specifications

Brand TeraFlex
Part number 1873100
Position Rear
Height range 2 to 3.5 inches
Spring design Progressive triple-rate
Color Black
Fitment type Direct fit

Vehicle fitment

TeraFlex lists these rear springs for the 2020–2026 Jeep Gladiator (JT) Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S models.

The Wrangler JL and the front of the Gladiator are not covered by these rear springs. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

TeraFlex recommends pairing these springs with Falcon Performance SP2 Mode Adjust shocks, which the company says were engineered together with the springs to improve compression and rebound.

What’s included

Rear lift coil springs.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–2026Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the TeraFlex 1873100 fit a 2021 Jeep Gladiator Rubicon?

Yes. It fits the 2020–2026 Gladiator Rubicon, which covers the 2021 model year. Make sure your year, model and trim match before ordering.

Is the 1873100 a triple rate spring?

Yes. It is a progressive triple-rate spring, softer at the top of the coil for flex and firmer at the bottom for towing stability.

Does the 1873100 work for towing?

Yes. The stiffer lower section of the coil adds stability while towing, and the towing coils are lowered to improve ride quality when the truck is unloaded.

Do the rear shocks need replacing with these springs?

Not always, but they should be checked. Springs and shocks are matched for ride height and damping, so a different shock can change how the rear handles. Inspect the shocks for leaks and worn mounts, and confirm the shock length suits the new height.
