RockJock 4″ Lift Coil Spring Set – RJ-154000-105

RockJock 4x4

Shop Jeep Gladiator Coil Springs on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4-inch front and 3-inch rear lift springs
  • Replaces factory coil springs for the 2020 and newer Gladiator
  • Designed for use with RockJock suspension or 3 to 5-inch lift kits
  • Gray powder coated finish

Description

Overview

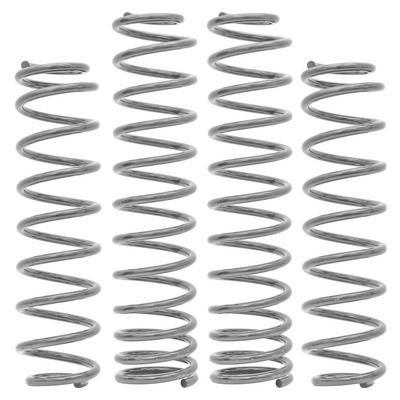

The RockJock 4″ Lift Coil Spring Set (part number RJ-154000-105) is a Gladiator spring set for the 2020–2026 Jeep Gladiator JT. It uses 4-inch lift front springs and 3-inch lift rear springs, which RockJock says levels the vehicle and improves the ride.

The set directly replaces the factory coil springs. It is designed to work with RockJock’s Johnny Joint suspension systems or with 3 to 5-inch lift kits from other brands. The height range is 4 to 5 inches.

Key features

  • 4-inch lift front springs
  • 3-inch lift rear springs
  • Levels the vehicle and improves ride.
  • Replaces the factory coil springs directly
  • Designed to work with RockJock suspension or other 3 to 5-inch lift kits
  • Extensive rate and quality development.
  • Powder coated gray finish

Checks after a split-height set

A set with 4-inch front and 3-inch rear springs changes the balance between the two ends of the vehicle. The front rises more than the rear, so the rake shifts and the vehicle sits slightly nose-up at the trail stance. That difference is part of the design, but it affects the driveline angles, the brake line length and the steering geometry, so each should be inspected once the set is installed.

Because the factory springs are removed, the old rubber isolators and any spring pads should be checked before the new springs go in. Clean the spring seats, confirm the springs sit square and take a height measurement at each corner. Recheck all bolts after the first few drives, and when the job is finished, set the alignment to match the new height. Good records of the measurements make later adjustments easier.

Specifications

Brand RockJock 4×4
Part number RJ-154000-105
Location Front and rear
Front lift 4 inches
Rear lift 3 inches
Height range 4 to 5 inches
Color Gray
Finish Powder coated
Fitment type Direct fit

Vehicle fitment

The set fits the 2020–2026 Jeep Gladiator (JT) Launch Edition, Mojave, Overland, Rubicon, Sport and Sport S models.

Wrangler JL and earlier Gladiator-era parts are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Because the set replaces the factory springs, the factory springs are removed during the job. A 4-inch front and 3-inch rear change moves the front and rear heights apart, so check the rake, the driveline angles and the brake lines once the set is in.

The springs are the result of extensive rate and quality development. The powder coated finish is meant for durability, and the set is designed for a comfortable ride and good off-road performance.

What’s included

The front and rear coil springs in the set. Confirm isolators, brackets and any other hardware against your installation before starting.

Fitment

VehicleYearsTrims
Jeep Gladiator2020–2026Launch Edition, Mojave, Overland, Rubicon, Sport, Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RockJock RJ-154000-105 fit a 2021 Jeep Gladiator?

Yes. The set fits the 2020–2026 Jeep Gladiator JT, which covers the 2021 model year. Check your year, model and trim before you order.

Are the front and rear springs the same height?

No. The set has 4-inch lift front springs and 3-inch lift rear springs, so the front sits a little higher than the rear after installation.

Can this set be used with another brand of lift kit?

The set is designed to work with RockJock's Johnny Joint suspension systems. It is also designed for use with lift kits from other brands in the 3 to 5-inch range.

Do the springs need a new alignment after installation?

Usually, yes. Changing the front and rear heights can move the caster and camber settings, so alignment should be checked and set once the work is complete. Recheck tire wear after the first few drives.

Are factory springs usually replaced in pairs?

Replacing the front and rear springs together is the usual approach, because the set is designed to balance the two ends. Replacing only one end can leave the height and ride uneven.
