Overview
The Skyjacker JL40RBPMLT is a 3.5 to 4 inch dual rate long travel coil spring lift for the 2018 Jeep Wrangler JL Unlimited Rubicon. It is the M95 shock version of the JL40RBPBLT. The kit adds an adjustable front track bar that requires no pitman arm, eccentric cam bolts and a rear upper frame-mounted track bar relocation bracket. It fits the Unlimited Rubicon.
The lift height range is 3 to 4.99 inches. The maximum tire size is 38 to 40 inches for street use and 38 x 13.50 for full off-road articulation, with a recommended 9 inch wheel at zero offset.
The 3.5 to 4 inch kit includes the front adjustable track bar, eccentric cam bolts and a rear upper frame-mounted track bar relocation bracket. Those parts set the steering geometry and axle centering for this height.
Key features
- Dual rate long travel coil springs front and rear
- Four M95 long travel shock absorbers included
- Front adjustable track bar, no pitman arm required
- Eccentric cam bolts
- Rear upper frame-mounted track bar relocation bracket
- Front and rear extended sway bar end links and bump stop extensions
Steering and axle centering
Steering geometry depends on the relationship between the track bar, the steering linkage and the axle position. When the body is raised, the axle must be re-centered so the steering wheel stays straight and the vehicle tracks properly. A track bar relocation bracket helps set that position, and the cam bolts adjust caster and camber during alignment.
Steering stabilizers, tie rods and ball joints all carry load after a lift. Check them for play when the front end is aligned and again after the first few trips over rough ground. Worn steering components can make the vehicle wander or feel loose, even when the lift itself is installed correctly.
- Check the steering stabilizer for leaks and play
- Inspect tie rod ends and ball joints
- Confirm the track bar bracket bolts are torqued after the first drives
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | JL40RBPMLT |
| UPC | 803696256641 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Front shocks | M95 long travel |
| Rear lift method | Coil springs |
| Maximum tire size | 38-40 inch street; 38 x 13.50 off-road full articulation |
| Recommended wheel | 9 inch, 0 offset |
Vehicle fitment
It fits the 2018 Jeep Wrangler JL Unlimited Rubicon, the 4-door Rubicon model.
Non-Rubicon models use the JL40BPMLT and are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The frame-mounted track bar relocation bracket is part of the axle centering for this lift, so mount it as part of the install. Align the front end after the adjustable track bar is set.

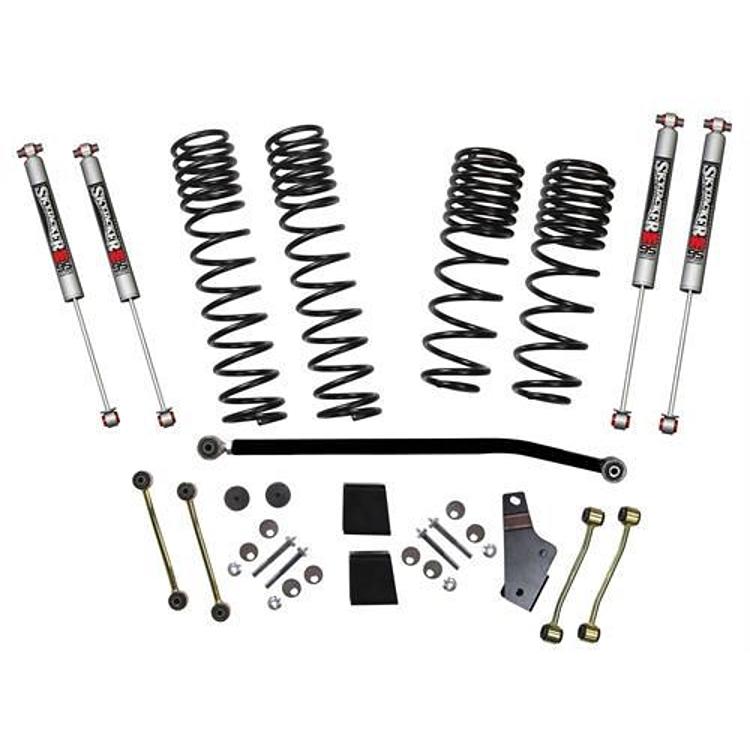

What’s included
The kit includes dual rate front and rear coil springs, four M95 long travel shock absorbers, an adjustable front track bar, eccentric cam bolts, a rear upper frame-mounted track bar relocation bracket, extended sway bar end links and bump stop extensions.
