Overview
The Skyjacker JL25RBPBLT is a 2 to 2.5 inch dual rate long travel coil spring lift for the 2018 Jeep Wrangler JL Unlimited Rubicon. It is the Rubicon version of the JL25BPBLT, with the same coil and sway bar design and Black MAX long travel shocks. It fits the Unlimited Rubicon.
The maximum tire size is 38 x 13.50 for street articulation and 37 inches for full off-road articulation, with a recommended 9 inch wheel at zero offset. The kit carries a limited lifetime warranty.
The dual rate design uses a first rate for on-road ride quality and a second, firmer rate that starts only after compression past the first. The second rate helps control body roll and heavy off-road movement, and the coils keep their position in the upper bucket at full droop. The Black MAX shocks are length fitted for the maximum extension allowed at full articulation, so the coils and shocks are matched as a set.
Key features
- Dual rate long travel coil springs front and rear
- Four Black MAX long travel shock absorbers included
- Front extended sway bar end links for full droop
- Front and rear bump stop extensions
- Grade 8 mounting hardware
- Limited lifetime warranty per the manufacturer
Articulation and wheel clearance
Articulation is how far each wheel can travel independently over uneven ground. More articulation helps the tires stay in contact with the surface, but it also brings the tires closer to the fenders and suspension parts. Tire size, wheel offset and the amount of articulation all work together, so they should be considered as one setup.
Once a larger lift is installed, check tire clearance at full lock and at full compression. Rubbing often shows up first on the inner fender or on the control arms. Trimming and spacer choices can change clearance, so plan them before the tires are mounted.
- Check clearance at full lock and full compression
- Measure the gap between tire and inner fender
- Confirm the brake lines have room at full droop
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | JL25RBPBLT |
| UPC | 803696256603 |
| Lift height range | 2 to 2.5 inches |
| Suspension type | Coil spring kit |
| Front shocks | Black MAX long travel |
| Rear lift method | Coil springs |
| Maximum tire size | 38 x 13.50 street; 37 inch off-road full articulation |
| Recommended wheel | 9 inch, 0 offset |
Vehicle fitment
It fits the 2018 Jeep Wrangler JL Unlimited Rubicon, which is the 4-door Rubicon model.
The non-Rubicon Unlimited trims use the JL25BPBLT, and two-door JL models are not in this list. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The extended end links and bump stop extensions are specific to this Rubicon kit. Align the front end and check the brake lines and CV angles after installation.
What’s included

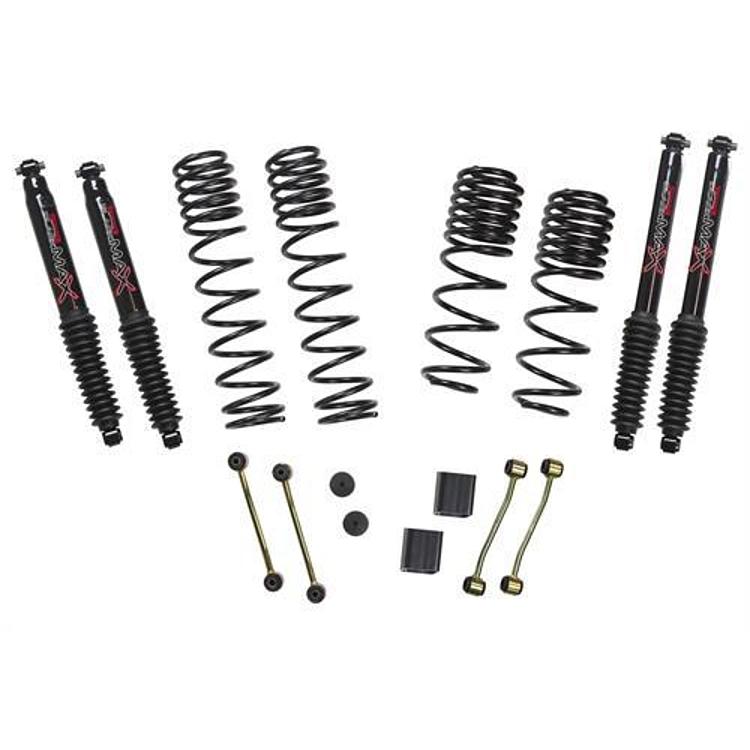

The kit includes dual rate front and rear coil springs, four Black MAX long travel shock absorbers, extended front sway bar end links, front and rear bump stop extensions and grade 8 mounting hardware.
