Fabtech 3″ Sport System with Dirt Logic 2.25 Resi Shocks – K4108DL

Fabtech

Shop Jeep Wrangler JL Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3 inch Sport system with Dirt Logic 2.25 resi shocks for the 2018 Jeep Wrangler JL
  • Fits 6 cylinder models only
  • Dual rate coil springs and four bump stop extensions

Description

Overview

The Fabtech K4108DL is a 3 inch Sport system with Dirt Logic 2.25 resi shocks for the 2018 Jeep Wrangler JL Unlimited four-door. It is made for 6 cylinder models.

The Sport system uses dual rate front and rear coil springs. The first stage is soft for extra travel, and the second stage handles payload and larger impacts at higher speeds.

Key features

  • Dirt Logic 2.25 resi shocks, the remote reservoir version in this line
  • Dual rate front and rear coil springs that are corner specific to the JL
  • Four bump stop extensions that retain the stock down travel
  • Extended front and rear sway bar links with urethane bushings
  • Heavy duty rear track bar bracket that re-centers the axle
  • Retains the factory roll center at the higher ride height

Checking fender clearance

Fender clearance decides how much room a larger tire has when the suspension compresses or the steering turns. Standard fenders and high clearance fenders give different amounts of room, and trimming or cutting may be needed depending on the tire chosen. Planning clearance before buying tires saves time and prevents damage to the body and wiring.

With a Sport system, the dual rate coils keep the vehicle level, but tires can still rub on the inner fender at full lock or over bumps. Check clearance at full steering in both directions and with the suspension compressed. Look for rub marks on the tire sidewalls after the first trail trip. Recheck the bump stops and the rear track bar bracket once the new height is set, since these help keep the axle in position.

  • Measure clearance at full lock
  • Check for rub marks after trail use
  • Confirm the engine before ordering

Specifications

Brand Fabtech
Part number K4108DL
UPC 700008587591
Lift 3 inch Sport system, 2.5 to 3 inch range
Suspension type Coil spring kit
Front shocks Dirt Logic 2.25 resi
Engine 6 cylinder models only

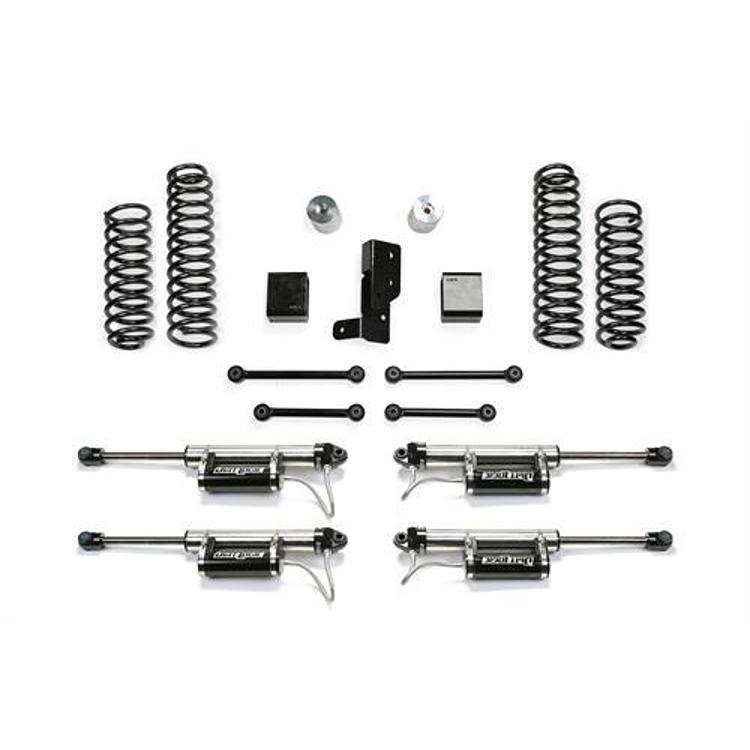

Included Front and rear dual rate coil springs, front and rear sway bar links, front and rear bump stop extensions, rear track bar bracket

The dual rate coils keep the vehicle level from side to side. The rear track bar bracket re-centers the axle, and the factory roll center stays in place at the higher ride height.

Vehicle fitment

The fitment covers the 2018 Jeep Wrangler JL Unlimited four-door models across the covered trim levels. It fits 6 cylinder models only, so confirm the engine before ordering.

Confirm your vehicle’s year, model, trim and engine before ordering.

Installation notes

Standard fenders need minor trimming for larger tires, and high clearance fenders need cutting for the largest ones. Plan an alignment after the new height is set.

What’s included

Included: front and rear dual rate coil springs, front and rear sway bar links, front and rear bump stop extensions and the rear track bar bracket. The Dirt Logic 2.25 resi shocks are part of the kit.

SKU: FABK4108DL Category:

Specification

Shipping weight 62.90 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2018Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the K4108DL fit a 2018 Jeep Wrangler JL Unlimited?

Yes, for the four-door models covered. It fits 6 cylinder models only, so confirm your engine, year and trim before ordering.

What shocks are included with the K4108DL?

The kit includes Dirt Logic 2.25 resi shocks, which are the remote reservoir version of the Dirt Logic 2.25 shock in this Fabtech line.

How much tire clearance does this Sport system give?

Clearance depends on your fenders. Check fender clearance on your vehicle before fitting larger tires, since standard and high clearance fenders give different amounts of room.

Does a Sport system need an alignment after installation?

Yes, an alignment is needed after the new height is set so the steering and tire wear stay balanced. Check the steering components and tire wear after the first few weeks of driving, since the geometry changes with the lift.
