Overview
The Skyjacker JL40RBPBLT is a 3.5 to 4 inch dual rate long travel coil spring lift for the 2018 Jeep Wrangler JL Unlimited Rubicon. It is the Rubicon version of the JL40BPBLT and includes an adjustable and high angle front track bar, a rear track bar extension bracket, Black MAX long travel shocks and eccentric cam bolts. It fits the Unlimited Rubicon.
The lift height range is 3 to 4.99 inches. The maximum tire size is 38 to 40 inches for street use and 38 x 13.50 for full off-road articulation, with a recommended 9 inch wheel at zero offset.
The coil rates are designed specifically for the JL, with unique left and right rates that the manufacturer matches to the OEM coils. The first rate gives an on-road ride, and the second rate engages only after compression past the first.
Key features
- Dual rate long travel coil springs front and rear
- Adjustable and high angle front track bar
- Rear track bar extension bracket
- Four Black MAX long travel shock absorbers
- Front and rear extended sway bar end links and bump stop extensions
- Front and rear eccentric cam bolts
Tires, gearing and wheel offset
Tire diameter and width affect more than clearance. Taller or wider tires change the effective gearing, which can make the vehicle feel slower off the line and work harder on grades. Wheel offset determines where the tire sits relative to the fender and suspension, so offset and tire size should be chosen together.
Before mounting larger tires, confirm the speedometer reading, brake clearance and clearance at full lock. Tire pressure should be set for the load and terrain, and the tires should be checked for uneven wear after the first few drives. Balancing and rotation keep the steering smooth.
- Plan wheel offset with the tire size
- Check speedometer calibration after a tire change
- Rotate and balance tires on a regular schedule
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | JL40RBPBLT |
| UPC | 803696256658 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Front shocks | Black MAX long travel |
| Rear lift method | Coil springs |
| Maximum tire size | 38-40 inch street; 38 x 13.50 off-road full articulation |
| Recommended wheel | 9 inch, 0 offset |
Vehicle fitment
It fits the 2018 Jeep Wrangler JL Unlimited Rubicon. It is for 4-door Rubicon models.
Non-Rubicon models use the JL40BPBLT and are not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The adjustable track bar length and cam bolt position set the alignment for this kit. Align the front end after installation and check the brake line length.
What’s included

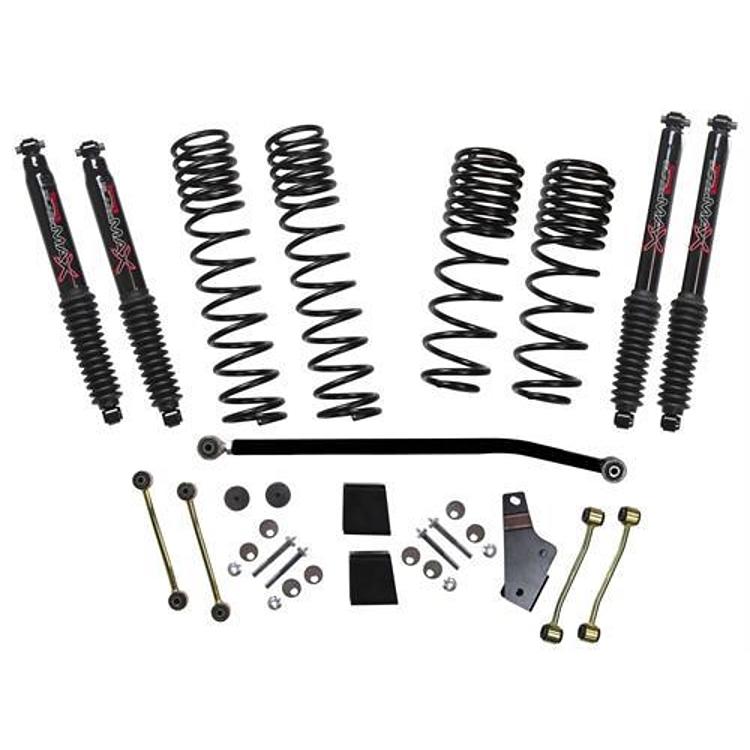

The kit includes dual rate front and rear coil springs, an adjustable and high angle front track bar, a rear track bar extension bracket, four Black MAX long travel shock absorbers, extended front and rear sway bar end links, front and rear bump stop extensions, front and rear eccentric cam bolts and grade 8 mounting hardware.
