Overview
The Pro Comp K4189B is a 6-inch Stage 1 lift kit for the 2015–2018 Ford F-150, with an ES9000 rear shock. The front is built around a strut spacer, extended steering knuckles and one-piece drop crossmembers, and the rear is lifted with blocks that include bump stop pads.
The one-piece crossmembers are high clearance, and an integrated front differential skid plate is included. The extended knuckles keep the factory CV axle angles and steering geometry in place. The kit is compatible with the roll stability control system.
Key features
- 6-inch lift height from a Stage 1 kit

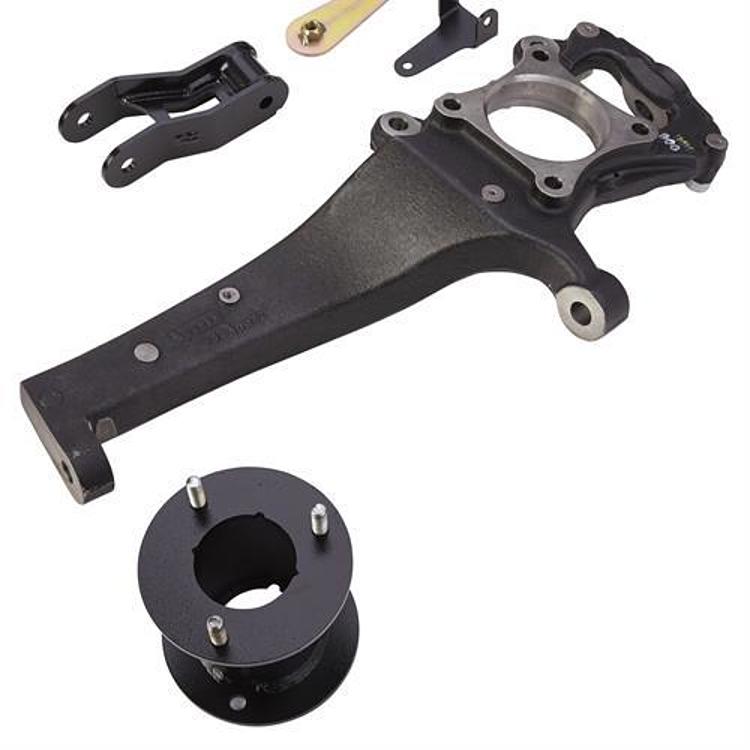

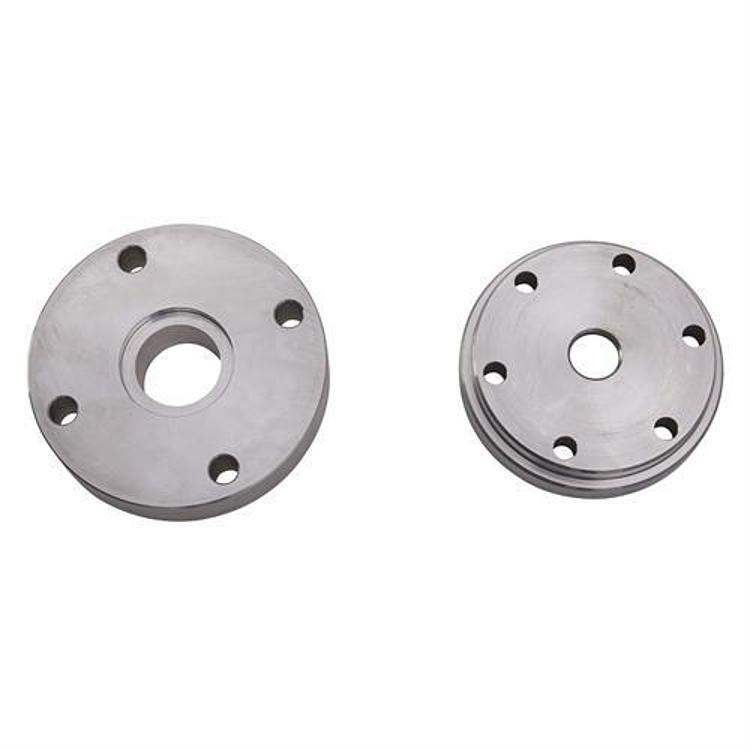

- Front strut spacer
- Extended steering knuckles

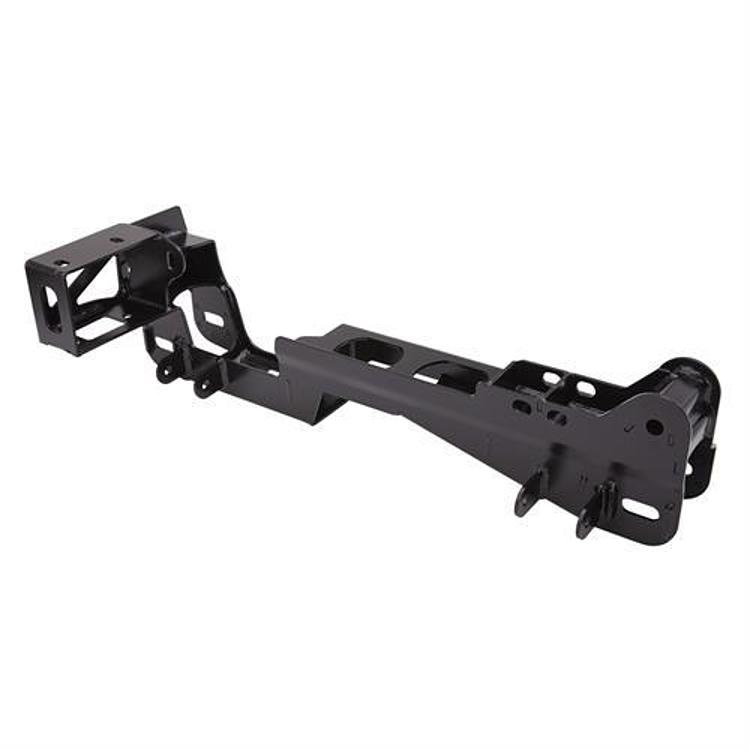

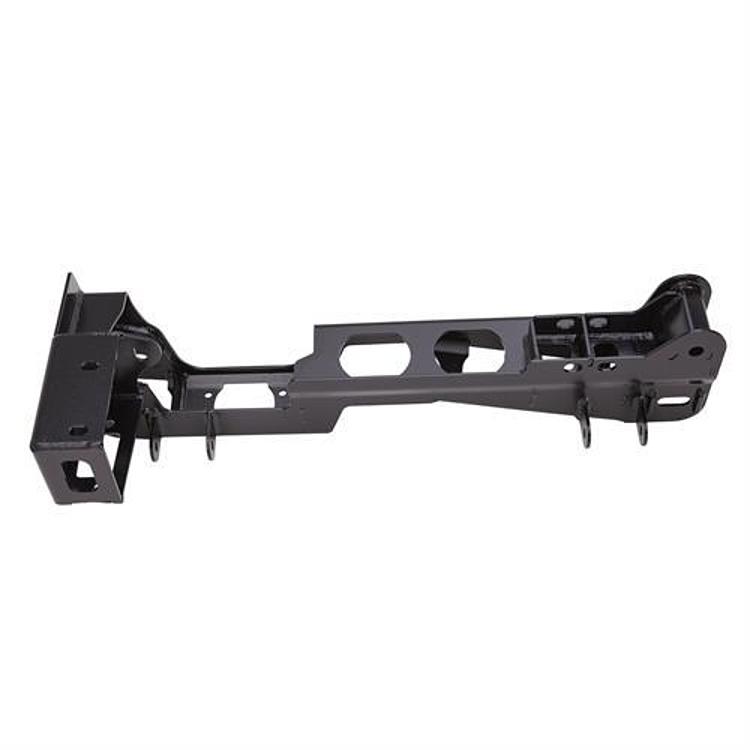

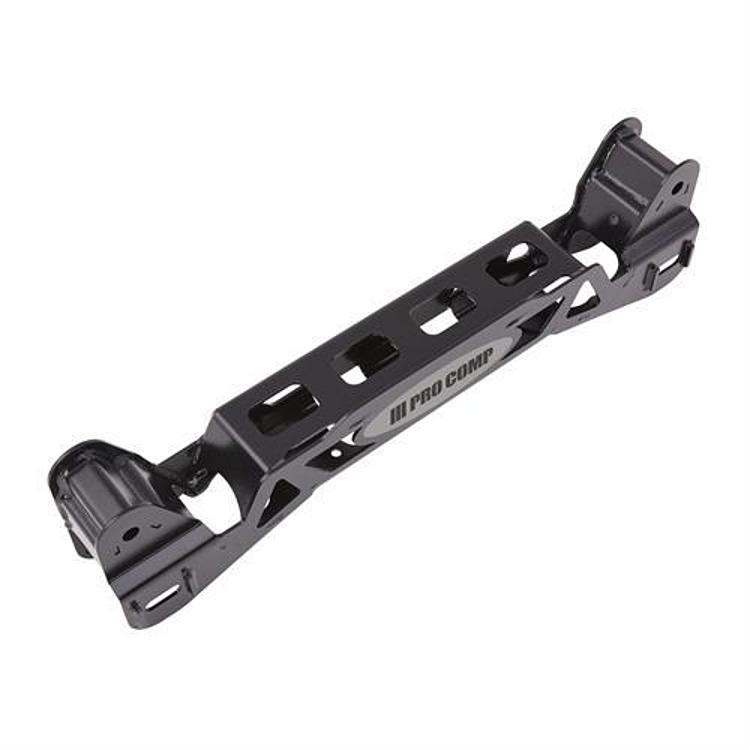

- High clearance one-piece crossmembers

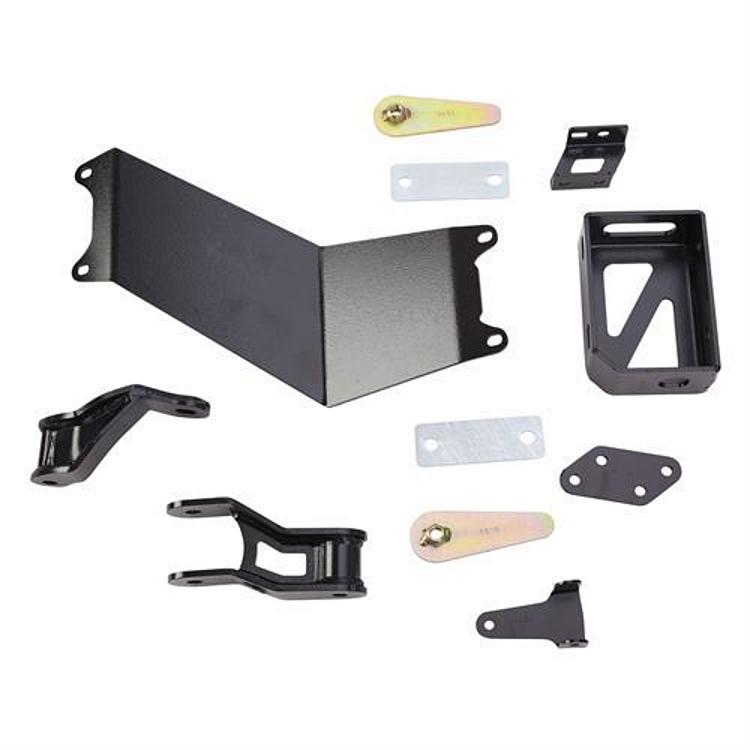

- Integrated front differential skid plate
- Rear blocks with bump stop pads and an ES9000 rear shock
Before you buy
A lift of this type changes the geometry the factory suspension was built around, so the parts work as a system. Steering components, driveline angles and brake lines all respond to a new ride height, which is why the front and rear pieces are usually replaced together rather than mixed with older hardware. Before buying, consider how the truck is used most, since highway driving and occasional trail work put different loads on the knuckles, shocks and bump stops.
Check the existing shocks, bushings and ball joints for wear before the install, because worn parts are easier to replace while the truck is apart. After installation, recheck the lug nuts and hardware after the first few drives, and look over the skid plate and crossmember bolts after rough terrain. Keep a record of the alignment reading so later service can be compared against it.
Specifications
| Brand | Pro Comp Suspension |
|---|---|
| Part number | K4189B |
| UPC | 70000708542 |
| Lift height | 6 inch (lift height range 5 to 6.99 inches) |
| Lift kit stage | Stage 1 |
| Suspension type | Knuckle |
| Front lift | Strut spacer, extended steering knuckles and crossmembers |
| Rear lift | Lift blocks with bump stop pads |
| Rear shock | ES9000 |
| Front shocks | Re-use OEM |
Vehicle fitment
It fits the 2015–2018 Ford F-150 in the King Ranch, Lariat, Limited, Platinum, Police Responder, Raptor, SSV, XL and XLT versions.
The list covers the 2015 through 2018 F-150, so the 2014 model and the 2019 and newer trucks are not included. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit can fit 35-inch tires, but tire fitment depends on the rest of the build, so check clearance once installed. Have the alignment and the driveline angles checked after the lift.

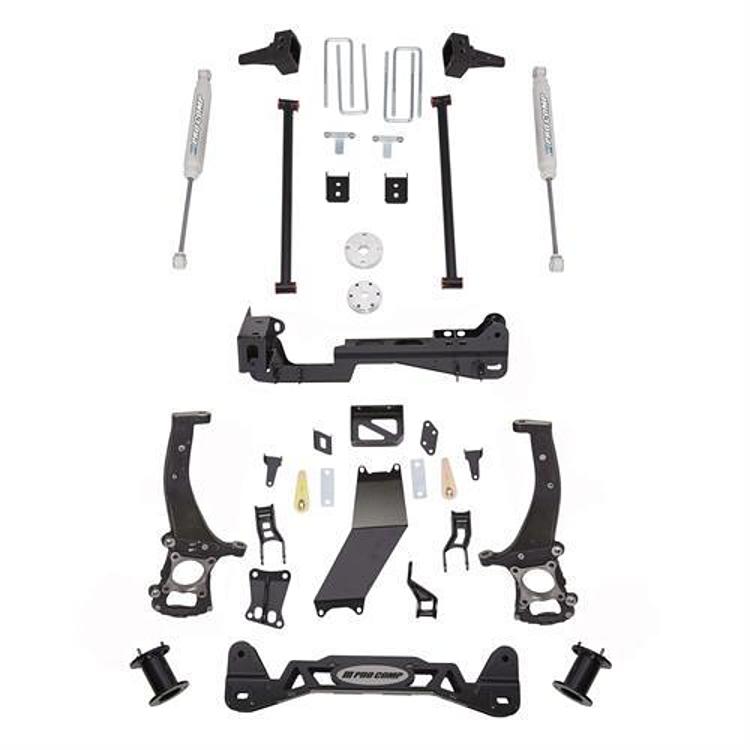

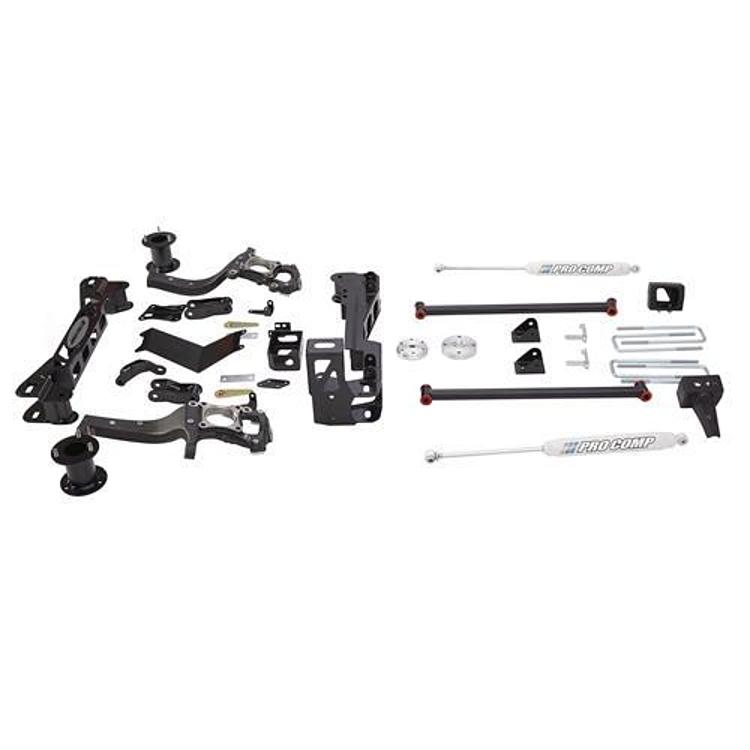

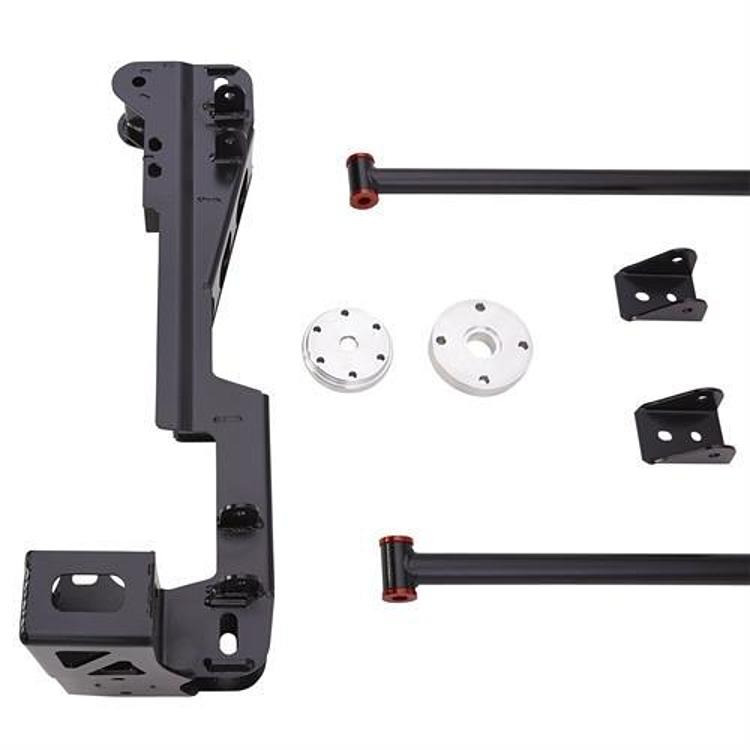

What’s included
The kit includes the front strut spacer, extended steering knuckles, one-piece crossmembers, the integrated differential skid plate, rear blocks with bump stop pads, and the ES9000 rear shock. The front shocks are re-used OEM.
