Overview
The Skyjacker JL40BPBLT is a 3.5 to 4 inch dual rate long travel coil spring lift for the 2018 Jeep Wrangler JL Unlimited non-Rubicon. The kit adds an adjustable and high angle front track bar and a rear track bar extension bracket, which keep the axles centered at the higher height. It fits the Unlimited Sahara, Unlimited Sport and Unlimited Sport S trims.
The spec sheet gives a lift height range of 3 to 4.99 inches and a maximum tire size of 38 x 13.50 for street articulation, or 37 inches for full off-road articulation. A recommended 9 inch wheel at zero offset is also listed.
Key features
- Dual rate long travel coil springs front and rear
- Adjustable and high angle front track bar
- Rear track bar extension bracket
- Four Black MAX long travel shock absorbers
- Front and rear extended sway bar end links
- Front and rear bump stop extensions
- Front and rear eccentric cam bolts
Track bar and alignment at height
A track bar keeps the axle centered under the body as the suspension moves. When the lift raises the body, the stock track bar can be too short or set at the wrong angle, which shifts the axle sideways. An adjustable track bar lets the installer set the length to match the new height, and a high angle design helps where the bar mounts at a steeper angle.
Track bar length and cam bolt position change caster and axle alignment. For that reason the front end should be aligned after installation, and the steering should be checked for wander or pull on the road. Track bar bushings and the frame mounts should be inspected periodically as well.
- Set track bar length before the alignment
- Check the frame mount bolts after the first drives
- Inspect track bar bushings for wear
Specifications
| Brand | Skyjacker |
|---|---|
| Part number | JL40BPBLT |
| UPC | 803696256627 |
| Lift height range | 3 to 4.99 inches |
| Suspension type | Coil spring kit |
| Front shocks | Black MAX long travel |
| Rear lift method | Coil springs |
| Maximum tire size | 38 x 13.50 street; 37 inch off-road full articulation |
| Recommended wheel | 9 inch, 0 offset |
Vehicle fitment
It fits the 2018 Jeep Wrangler JL Unlimited Sahara, Unlimited Sport and Unlimited Sport S. It is for 4-door non-Rubicon models.
The Rubicon uses the JL40RBPBLT and is not covered by this kit. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The adjustable front track bar and the eccentric cam bolts set the caster and axle position, so the front end must be aligned after installation. Confirm that the track bar length is set for the lift before driving the vehicle.
What’s included

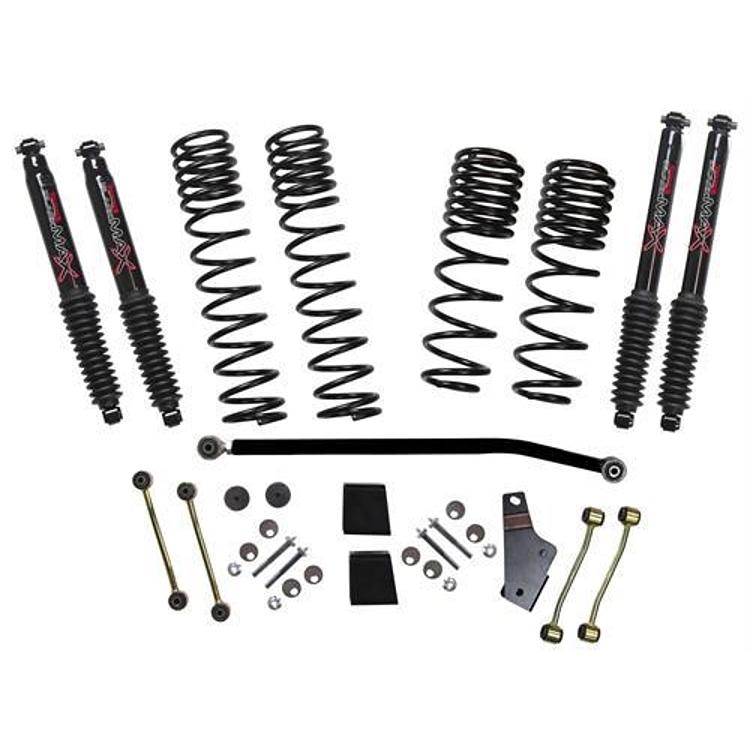

The kit includes dual rate front and rear coil springs, an adjustable and high angle front track bar, a rear track bar extension bracket, four Black MAX long travel shock absorbers, extended front and rear sway bar end links, front and rear bump stop extensions, front and rear eccentric cam bolts and grade 8 mounting hardware.
