Overview

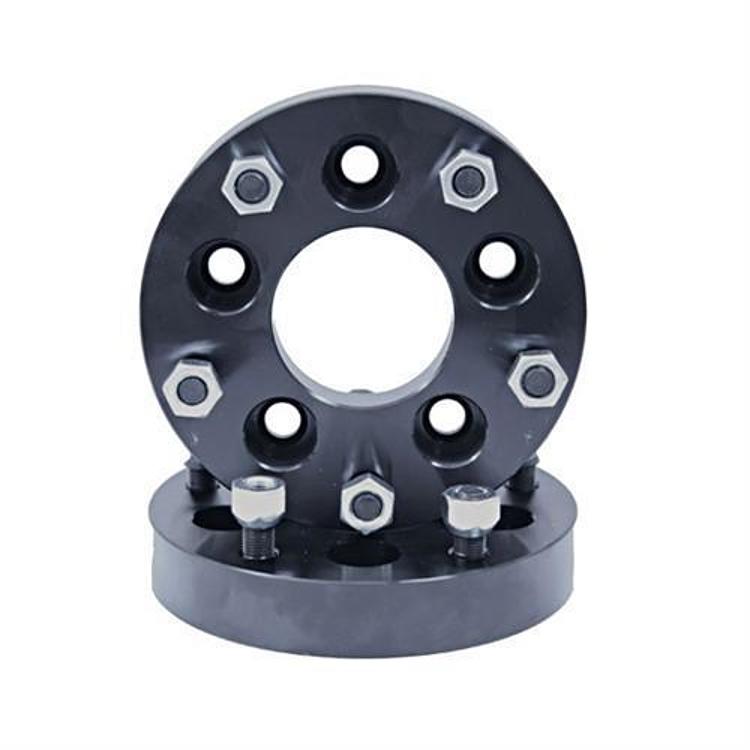

The Rugged Ridge 15201.07 is a pair of black aluminum hub centric wheel adapters, 1.375 inch thick, that move wheels outward and bridge a 5 on 5 bolt pattern to 5 on 5.5. Adapters like this help fit wider tires and give a vehicle a wider track for better stability.
Each part number is a pair. The adapters are extra thick 6061T6 aluminum with a double anodized black finish, and the hardware is grade-8. The adapters are not tied to a specific vehicle, year or chassis code.
Key features
- Hub centric design that centers the wheel on the hub
- Double anodized black finish for extra corrosion resistance
- Extra thick 6061T6 aluminum body
- Grade-8 hardware throughout
- Converts 5 on 5 to 5 on 5.5 bolt pattern, as listed
- Ten pre-installed grade-8 wheel studs, 10 lug nuts and thread locker included
Adapter fit and clearance
Adapters move the wheel outward and also change the stud pattern, so fit is checked at two points: the bolt pattern and the hub bore. Check that the adapter seats flat, that all studs engage fully and that the wheel clears the brake caliper and suspension at full steering lock. Recheck clearance once the tire is fitted, since tire width changes the result.
Adapters add leverage on the wheel bearings and studs, so routine inspection matters. Look for cracks around the stud holes, corrosion on the aluminum faces and loose nuts after the first drives. Replace any adapter that shows cracks or bent threads rather than reusing it.
- Confirm the hub bore fit before tightening
- Recheck nut torque after the first drives
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 15201.07 |
| UPC | 804314123413 |
| Type | Adapter |
| Thickness | 1.375 inch |
| Material | Extra thick 6061T6 aluminum |
| Finish | Black, double anodized |
| Bolt pattern | 5 on 5 to 5 on 5.5 |
| Hub design | Hub centric |
| Hardware | Grade-8 |
| Quantity | Spacer pair per part number |
Vehicle fitment
It is universal fit, but the bolt pattern and hub must match your wheel for it to work. Measure both before choosing it.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The studs and thread locker are supplied with the adapters, so use the included lug nuts when mounting. Because an adapter changes the wheel’s position, check tire and fender clearance with the wheel fitted before driving.
What’s included
Ten pre-installed grade-8 wheel studs, 10 lug nuts and thread locker, with each part number supplied as a spacer pair.
