Overview

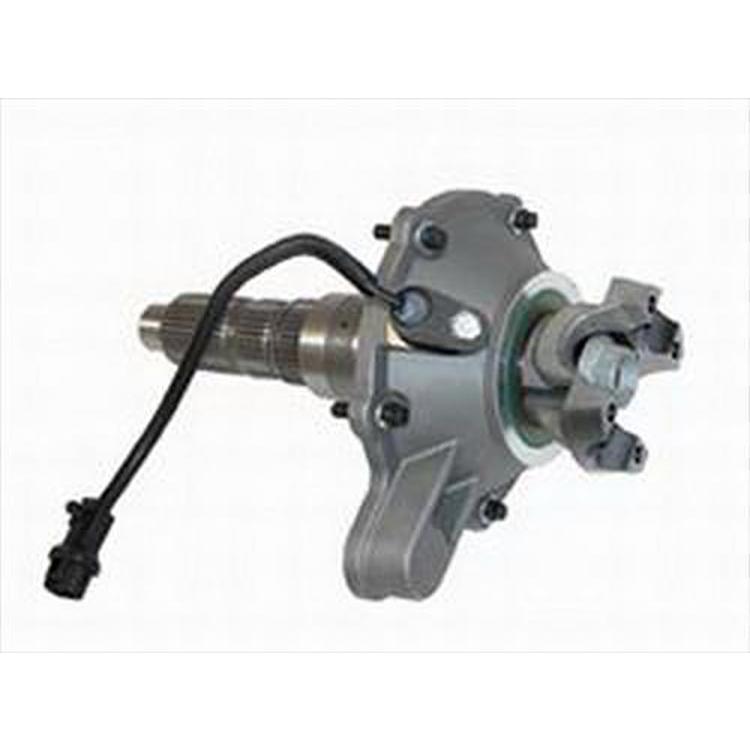

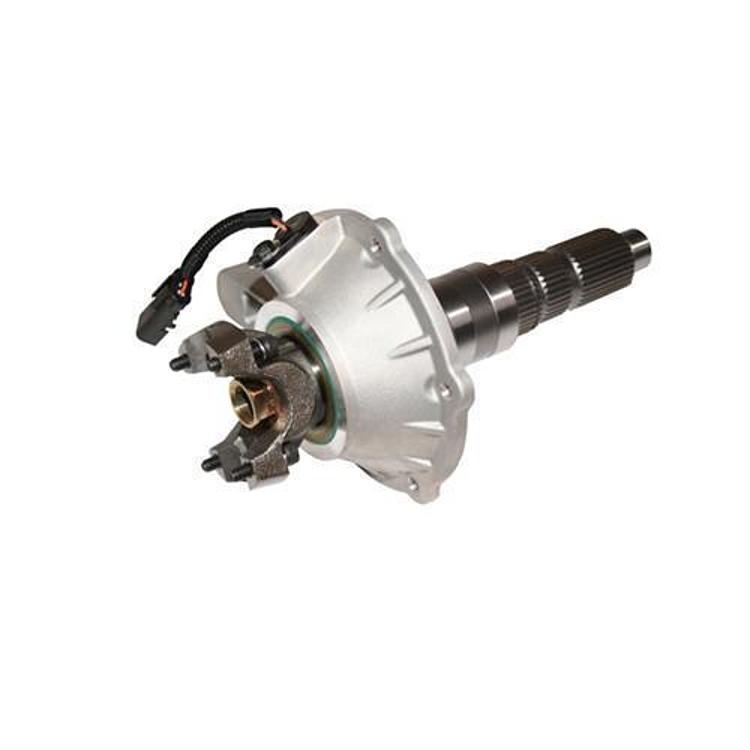

The Rugged Ridge 18676.72 is a Mega Short slip yoke eliminator kit for the NP231 transfer case in 1987-2006 Jeep Wrangler models. The kit is for owners who have installed a 2 inch or taller suspension lift and need to correct the driveline vibration that a lift causes. It replaces the slip yoke section of the NP231 with a fixed yoke and CV style drive shaft assembly, so the transfer case does not have to be dropped to avoid those vibrations. Slip yoke eliminator kits are often called SYE kits.
It is intended for lifts of 2 inch and up, the same lift range as standard SYE kits. It adds 7 inches to the rear drive shaft length, 3 inches more than other SYE kits. The longer shaft reduces drive shaft angle, which improves bearing and U-joint life and reduces driveline vibration on lifted Jeeps that run short drive shafts. The kit also uses a shorter, stronger main shaft design.
Key features
- Replaces the slip yoke on the NP231 transfer case with a fixed yoke and CV style drive shaft assembly
- Adds 7 inches of rear drive shaft length, 3 inches more than other SYE kits
- Shorter, stronger main shaft design
- Nodular reinforced 356-T6 aluminum construction
- Intended for lifts of 2 inch or taller, not needed on body lifted Jeeps
- Longer shaft reduces drive shaft angle, which improves bearing and U-joint life

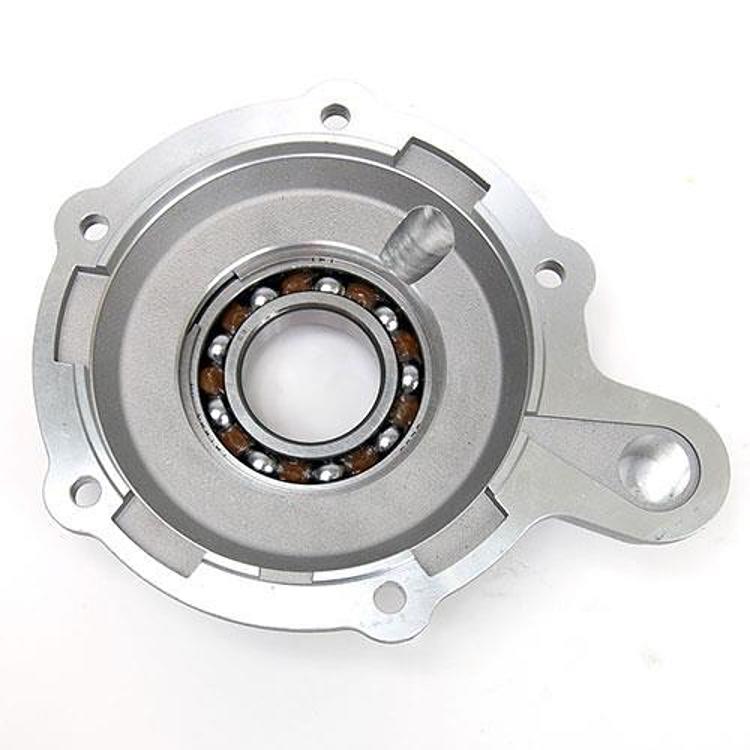

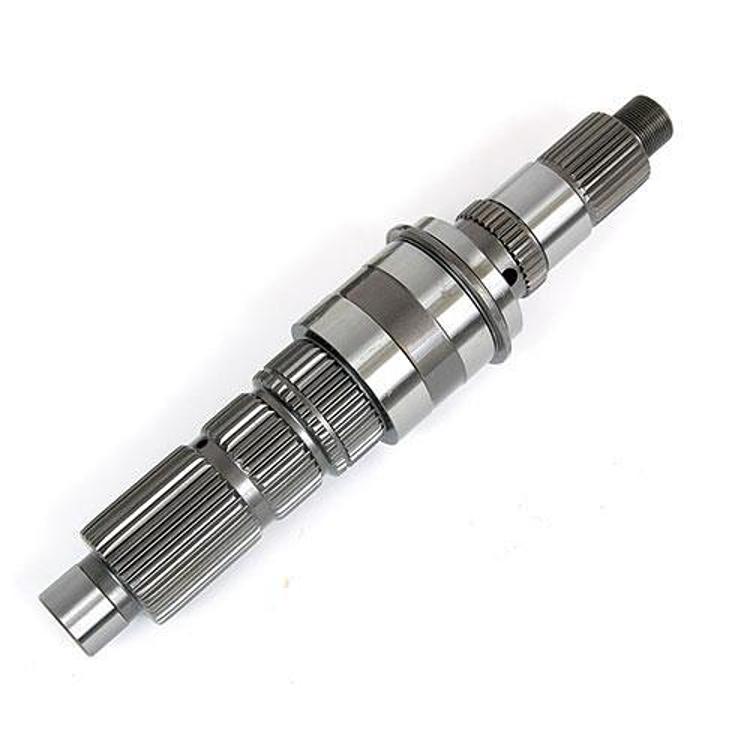

- Includes new tail shaft, output shaft and extension housing
Planning a longer driveshaft
A longer rear driveshaft changes the angle at both joints, and that angle drives much of the vibration on a lifted Jeep. When the driveshaft is longer, the joint angle is smaller, which generally reduces wear on the U-joints and bearings. Plan the driveline around the added length before the kit goes in, since a longer shaft may require a different driveshaft assembly than a standard SYE setup.
Check the transfer case output, the new yoke and the extension housing for clearance as a set. Inspect the reused parts and replace worn U-joints while the driveline is apart. After assembly, confirm the driveshaft clears the crossmember and frame at full articulation and recheck the joints after the first few trail runs.
- Measure driveshaft length before assembly
- Check clearance at the crossmember
- Recheck U-joints after the first trail runs
Specifications
| Brand | Rugged Ridge |
|---|---|
| Part number | 18676.72 |
| UPC | 804314123970 |
| Transfer case model | NP231 |
| Lift requirement | 2 inch or taller suspension lift |
| Rear drive shaft length increase | 7 inches (3 inches more than other SYE kits) |
| Material | Nodular reinforced 356-T6 aluminum |

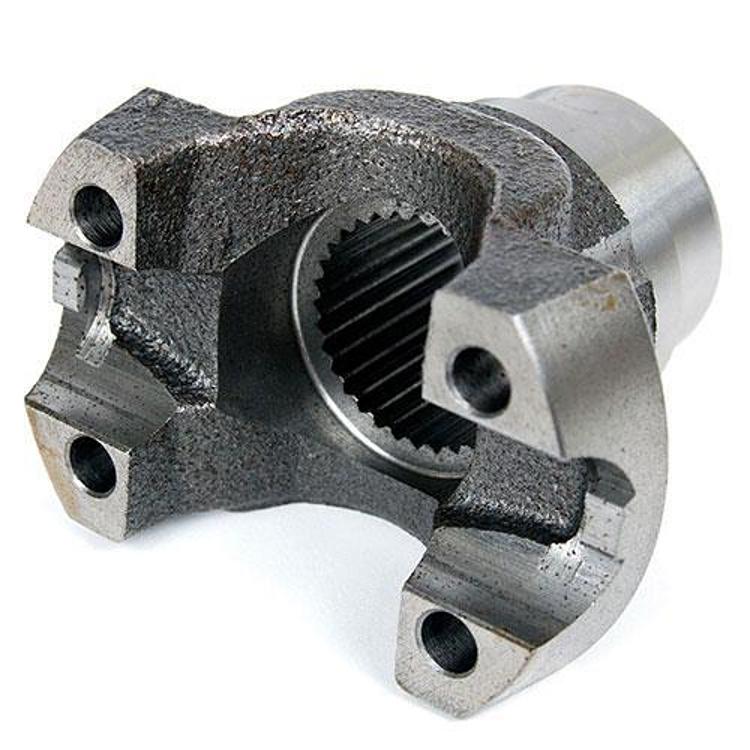

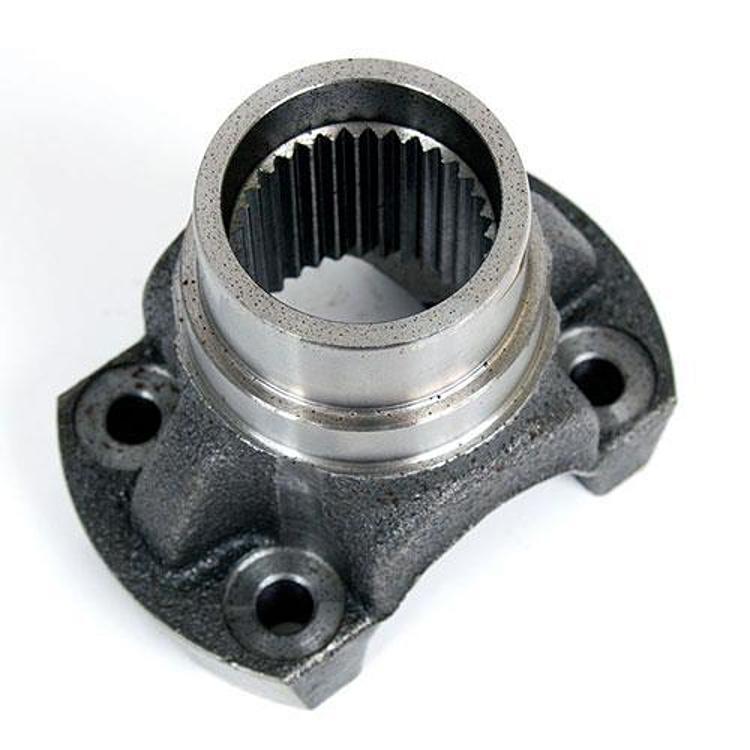

| Replacement yoke type | 1310 CV style yoke |
| Included parts | New tail shaft, new output shaft, new extension housing |
Vehicle fitment
It is for 1987-2006 Jeep Wrangler models with an NP231 transfer case and a 2 inch or taller suspension lift. It is not needed on body lifted Jeeps. It fits NP231 transfer cases from 1987 onward.
Vehicles outside 1987-2006 and vehicles with other transfer cases are not covered. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The longer rear drive shaft length changes the driveshaft you need, so plan the driveline around the 7 inch increase before the kit goes in. A CV style drive shaft assembly is part of the fixed yoke conversion described above. Work under a raised Jeep only with jack stands set on level ground.
What’s included

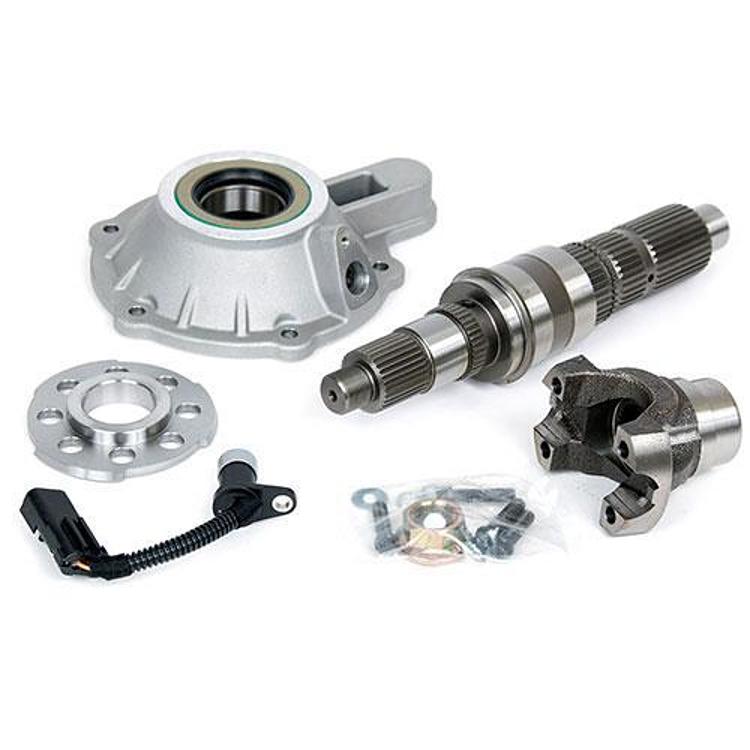

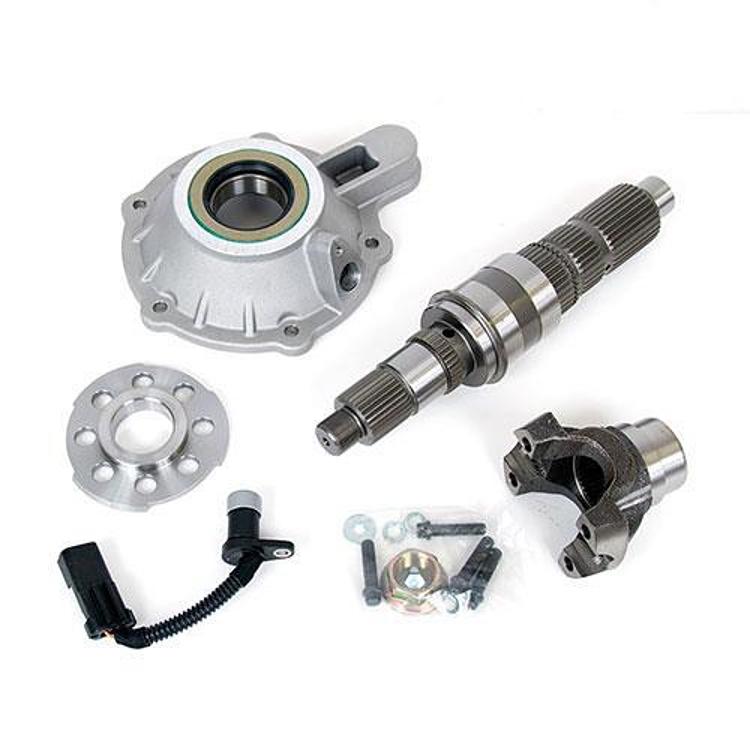

The kit includes a new tail shaft, a new output shaft, a new extension housing and the 1310 CV style replacement yoke. Check the parts received against your installation before starting.
