Overview

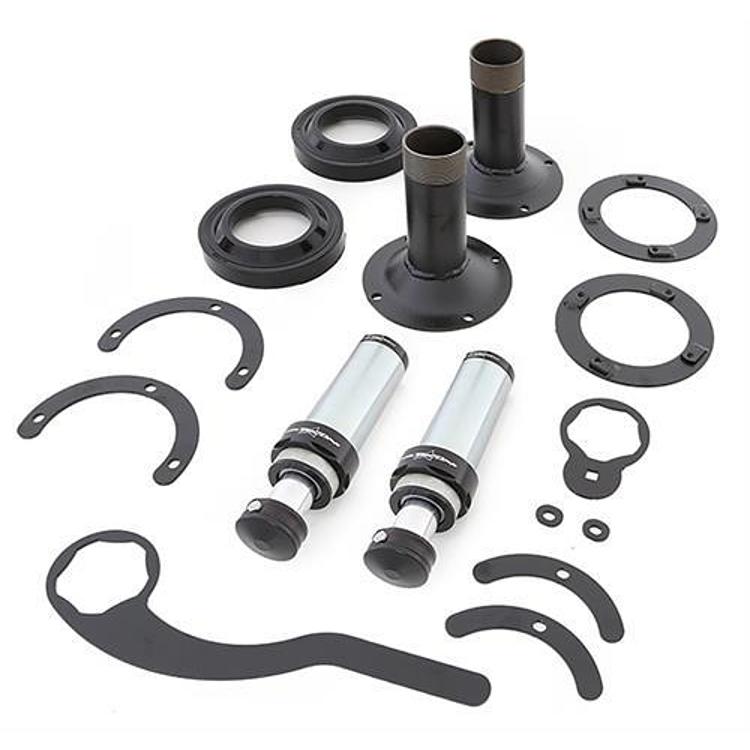

The Rubicon Express RE1384 is a rear hydraulic bump stop kit with 2.0-inch hydraulic bump stops. It is a bolt-on kit for two-door and four-door JK and JK Unlimited Jeep Wranglers from 2007 onward.
Hydraulic bump stops give a smoother transition at full compression than a harsh factory rubber bump stop. Air bumps have usually required custom fabrication, while this kit is designed to bolt on.
Key features
- Hydraulic bump stop design
- 2.0-inch hydraulic bump stops
- Bolt-on kit, no custom fabrication described
- Smoother transition at full compression
- Rear position
Hydraulic vs. rubber stops
A bump stop works only at the end of suspension travel, but it still affects how the vehicle feels when a wheel reaches full compression. A factory rubber stop compresses quickly and can send a jolt through the chassis. A hydraulic stop resists load more progressively, which tends to make landings and deep compressions easier to control.
Because the stop only engages at full compression, it is a poor substitute for correct spring and shock tuning. Shocks control the speed of movement through the whole range, while the stop protects the suspension at its limit. Keeping both in good condition gives the most consistent results.
Before buying, look at the rest of the rear suspension. Worn shocks, tired springs or a body lift can change where the stop engages, so the stop may need to be checked after any of those changes.
- Shocks and bump stops do different jobs and should be inspected together
- Recheck stop position after changes to spring height or tire size
- Look for cracks or leaks in the hydraulic body during inspection
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE1384 |
| UPC | 614901214840 |
| Position | Rear |
| Bump stop type | Hydraulic |
| Size | 2.0 inches |
| Installation | Bolt-on kit |
| Fitment | Direct fit |
Vehicle fitment
The kit fits 2007 and later two-door and four-door JK Jeep Wranglers, including the JK Unlimited.
Confirm your vehicle’s year, model and trim before ordering, and check that your rear suspension is a JK setup.
