Rubicon Express Front Sway Bar End Link Kit – RE1152

Rubicon Express

Shop on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE1152 front sway bar end link kit for 2018–2026 Jeep Wrangler JL
  • Made for a 3.5 to 4.5 inch lift
  • Includes front sway bar end links, urethane bushings, sleeves and hardware

Description

Overview

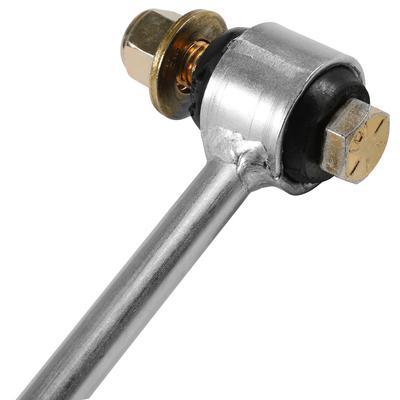

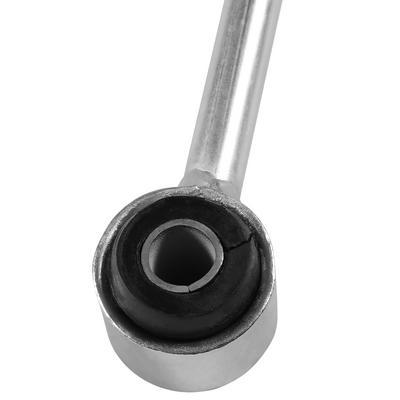

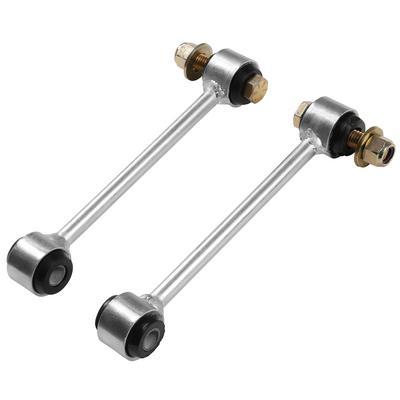

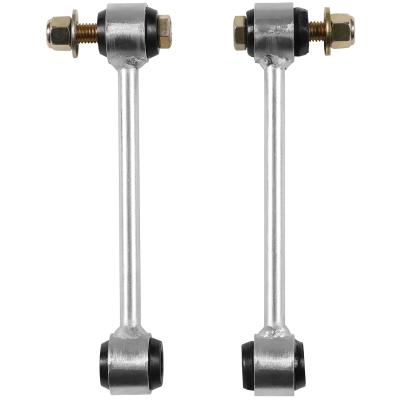

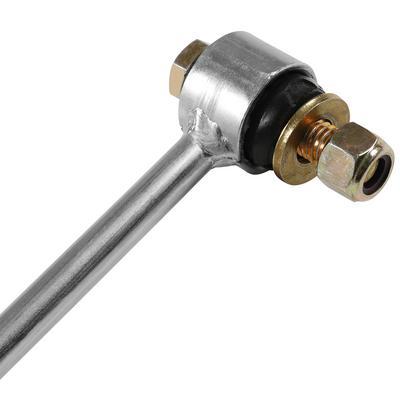

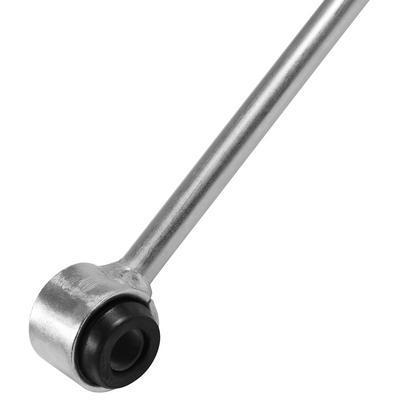

The Rubicon Express RE1152 is a front sway bar end link kit for 2018–2026 Jeep Wrangler JL models with a 3.5 to 4.5 inch lift. The kit replaces the factory end links at the front and comes with urethane bushings, sleeves and the hardware needed to mount them.

Rubicon Express, founded in 1996, makes suspension and drivetrain parts for Jeep. This kit is a direct fit at the front and covers both 2-door and Unlimited 4-door JL models from 2018 to 2026.

Key features

  • Built for Jeep Wrangler JL with a 3.5 to 4.5 inch lift
  • Front position, direct fit
  • Urethane bushings
  • Sleeves for the bushing ends
  • Mounting hardware included

Sway bar links and handling

The sway bar resists body roll by linking the two sides of the suspension. The end links transfer that force from the bar to the control arm or axle, so worn links can cause clunks over bumps and a looser feel in corners. When the lift changes the angle of the links, they can also load the bushings differently than the factory setup.

Urethane bushings are firmer than rubber and hold their shape well, but they can squeak if they are not greased or if the sleeves bind. Inspect the ends during regular service for play, torn boots or cracking. Replacing the end links in pairs keeps both sides matched and avoids uneven handling on the front axle.

  • Listen for clunks over uneven ground
  • Check for play at the link ends by hand
  • Look for cracked or flattened bushings
  • Tighten hardware to specification after the first drives

Specifications

Brand Rubicon Express
Part number RE1152
Position Front
Fitment Direct fit
Lift range 3.5 to 4.5 inch lift
Bushings Urethane
Included hardware Sleeves and hardware

Vehicle fitment

It fits 2018–2026 Jeep Wrangler (JL) models: 2-door Rubicon, Sport and Sport S versions and 4-door Unlimited Rubicon, Sahara, Sport and Sport S versions, all with the 3.5 to 4.5 inch lift.

The list does not include the Jeep Wrangler JK or earlier Wranglers, the Gladiator (JT), or JL models with a different lift height. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This kit is made for a 3.5 to 4.5 inch lift, so confirm your lift height falls in that range before installing the end links. Check the front sway bar for clearance once the links are in place.

What’s included

Front sway bar end links, urethane bushings, sleeves and hardware.

Fitment

VehicleYearsTrims
Jeep Wrangler (JL)2018–2026Rubicon (2-Door), Sport (2-Door), Sport S (2-Door), Unlimited Rubicon (4-Door), Unlimited Sahara (4-Door), Unlimited Sport (4-Door), Unlimited Sport S (4-Door)

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE1152 fit a 2018 Jeep Wrangler JL Unlimited?

Yes. It fits 2018–2026 Jeep Wrangler JL Unlimited 4-door models, along with the 2-door JL from the same years. Both body styles are covered for the 3.5 to 4.5 inch lift.

What lift height is this sway bar end link kit for?

It is made for JL models with a 3.5 to 4.5 inch lift. Check your lift height before ordering the kit, since a different lift falls outside this fit.

Are the end links, bushings and hardware all in the box?

Yes. The kit includes front sway bar end links, urethane bushings, sleeves and hardware. Check fit against your vehicle's year, model and trim before ordering.

Is the RE1152 a front or rear kit?

It is a front kit. The kit is a direct fit sway bar end link set for the Jeep Wrangler JL and fits the front position.

Should I replace the sway bar bushings at the same time?

Check them when you replace the end links. Hard or cracked bushings reduce the link's movement and can cause noise. Replacing them with the new kit keeps the front end quiet and consistent.
