Overview

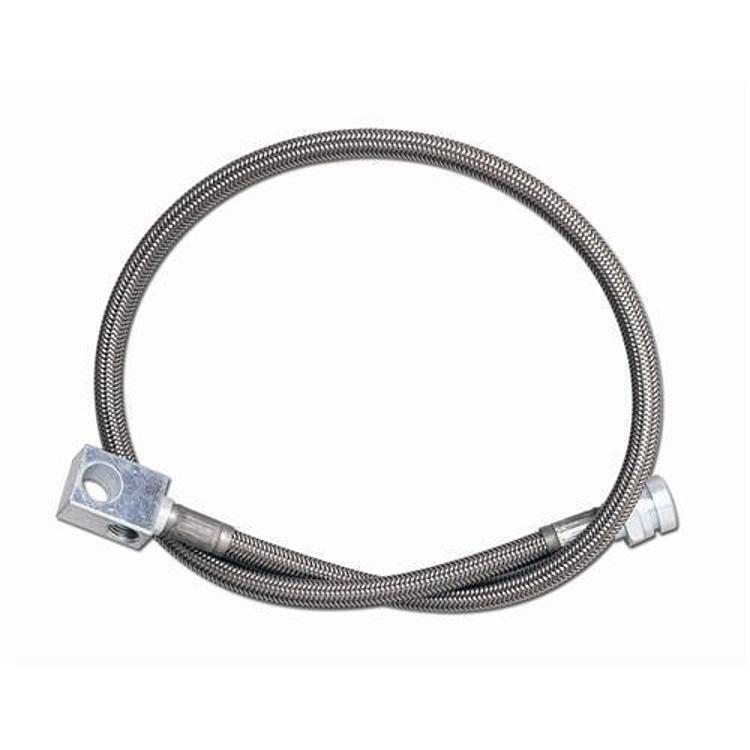

The Rubicon Express RE1532 is a stainless steel brake line set for the 2007 to 2018 Jeep Wrangler (JK), made for a lift of 4 to 6 inches. It supplies lines for both the front and rear of the vehicle, at 22 inch length.
Rubicon Express builds each line with a stainless steel outer casing over a rubber casing, around a Kevlar casing that holds a Teflon inner hose. Mounting brackets are included where necessary, and the lines are built to DOT specifications.
Key features
- Stainless steel outer casing over rubber and Kevlar layers
- Teflon inner hose
- Front and rear lines in one set
- 22 inch length
- Mounting brackets included where necessary
- Built to DOT specifications
Brake line maintenance
Brake lines carry hydraulic pressure from the master cylinder to each wheel, so they need regular inspection. Braided or coated lines resist abrasion better than bare steel, but the outer layers can still wear where they rub on brackets, tires or suspension parts.
When a lift changes the suspension, the lines move. Check routing at full steering lock and full suspension travel, and confirm there is clearance to the tires and moving parts. Lines that are too short can stretch and crack, while lines with excess length can catch on something.
Bleeding the system after any brake line work removes trapped air, which can make the pedal feel soft. Use fresh fluid of the type the vehicle requires and keep the reservoir topped up during the bleed. Test the brakes at low speed in a clear area before normal driving.
- Check routing at full steering lock
- Inspect for rubbing and abrasion
- Bleed the system after installation
- Test the pedal at low speed first
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE1532 |
| UPC | 614901453539 |
| Product type | Brake line set |
| Material | Stainless steel outer casing, rubber casing, Kevlar casing, Teflon inner hose |
| Length | 22 inch |
| Position | Front and rear |
| Lift range | 4 inch to 6 inch |
| Included hardware | Mounting brackets where necessary |
| Fitment type | Direct fit |
Vehicle fitment
The RE1532 is a direct fit for the 2007 to 2018 Jeep Wrangler (JK), including the Rubicon, Sahara, Sport and anniversary editions.
The Wrangler TJ and JL are different generations and are not covered by this brake line set. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Rubicon Express says to bleed the brake system properly after installation. It also says to check that the brake lines do not touch the tires or moving suspension components, and that their length is enough for full suspension travel.
What’s included
A set of front and rear brake lines, with mounting brackets where necessary.
