Overview
The Rubicon Express 6 inch brake line extension and coupler adds 6 inches of length to factory brake lines. The kit includes new front hard line extensions, couplers and the hardware to fasten the factory lines to the bottom outside of the frame rail.
On a lifted vehicle, this kit adds the length, unless the vehicle already uses Rubicon Express extended stainless steel flexible brake lines. The kit covers lifted applications from 4 to 6 inches.
Key features
- 6-inch extension

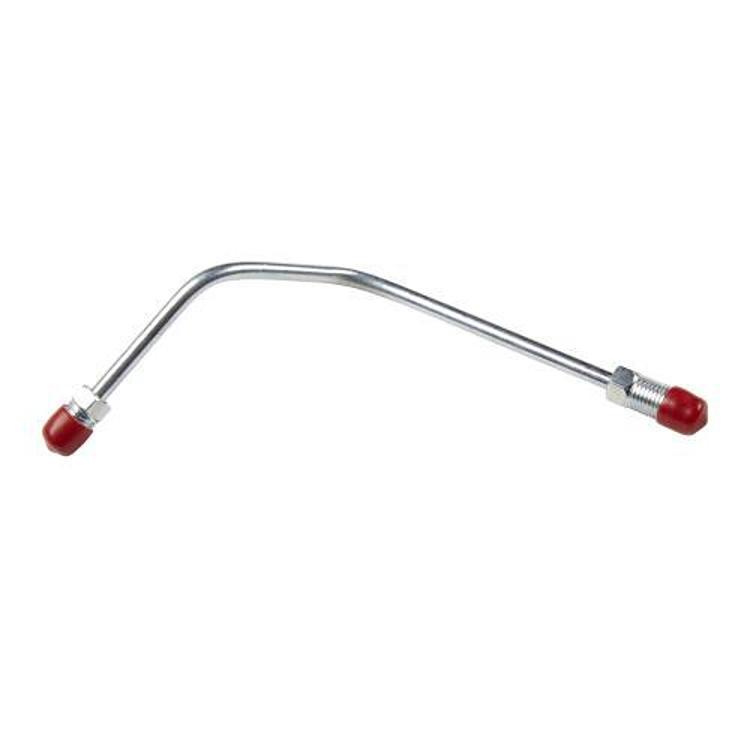

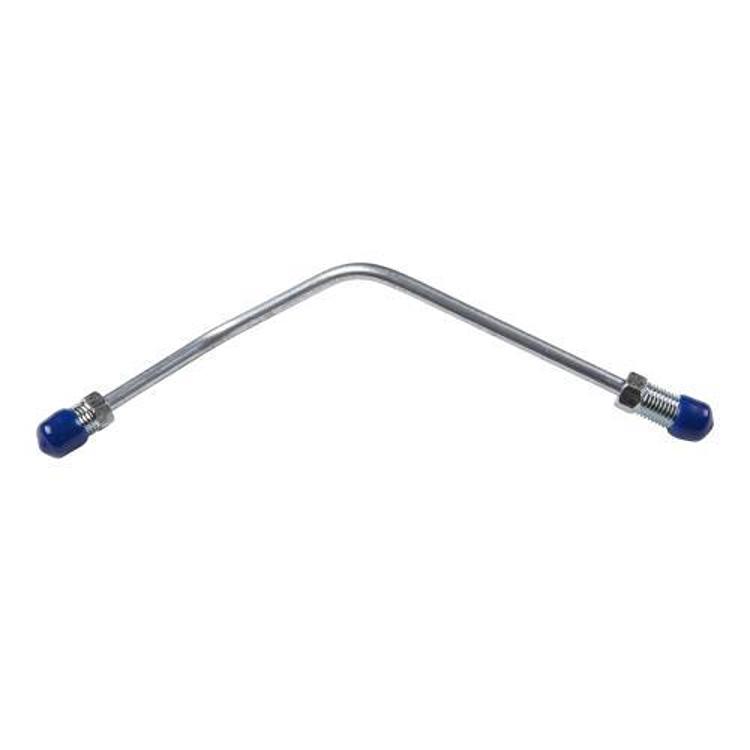

- Front hard line extensions
- Coupler included
- Fastening hardware included
- Lifted applications from 4 to 6 inches
Brake line work at the frame
Extending brake lines means working where the factory lines attach to the frame rail. Each joint is a potential leak point, so the coupler and flared ends should be checked closely. The extension should stay secured so it cannot move against the frame or suspension when the axle travels.
A lift changes how much the brake lines move, so inspection matters after installation. Confirm the new hard lines clear the frame, crossmember and steering parts through full travel. Keep the fastening hardware tight and recheck it after the first few drives, when new fittings often settle.
- Inspect each coupler and flare for seepage
- Confirm lines clear the frame and suspension at full travel
- Check the fastening hardware after the first drives
Specifications
| Brand | Rubicon Express |
|---|---|
| UPC | 614901438543 |
| Extension length | 6 inches |
| Position | Front |
| Lines | Hard line extensions |
| Lift range | 4 to 6 inches |
Vehicle fitment
Confirm fit for your vehicle’s year, model, trim and lift height before ordering the extension, since the front lines must match your setup.
Installation notes
The extensions fasten the factory lines to the frame rail, so the work is at the frame. Bleed the brakes after installation and confirm the new run clears the suspension.
What’s included

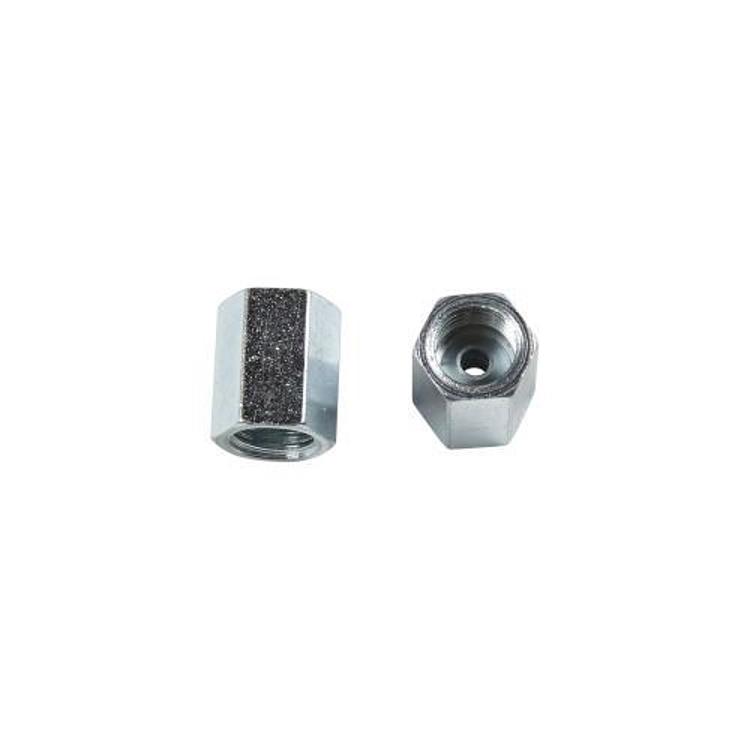

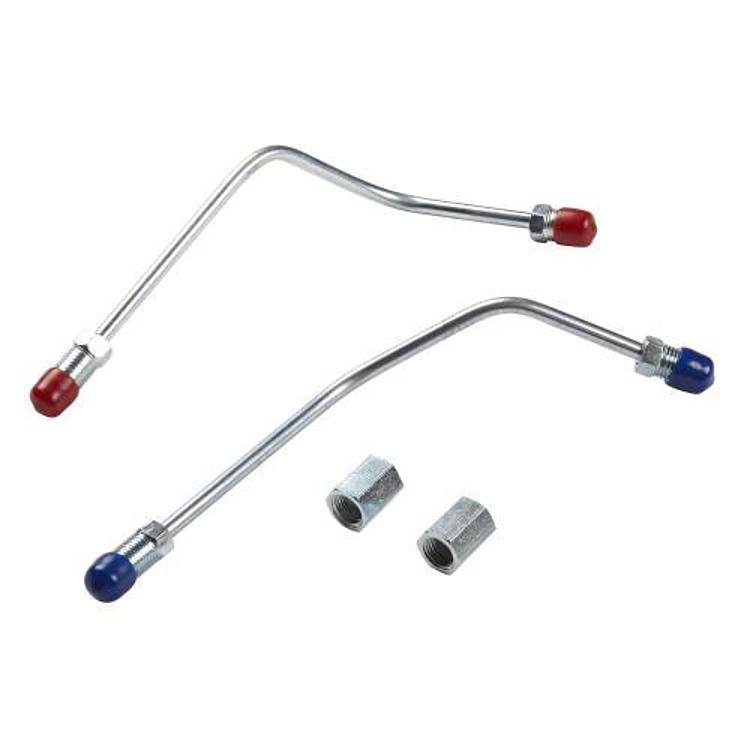

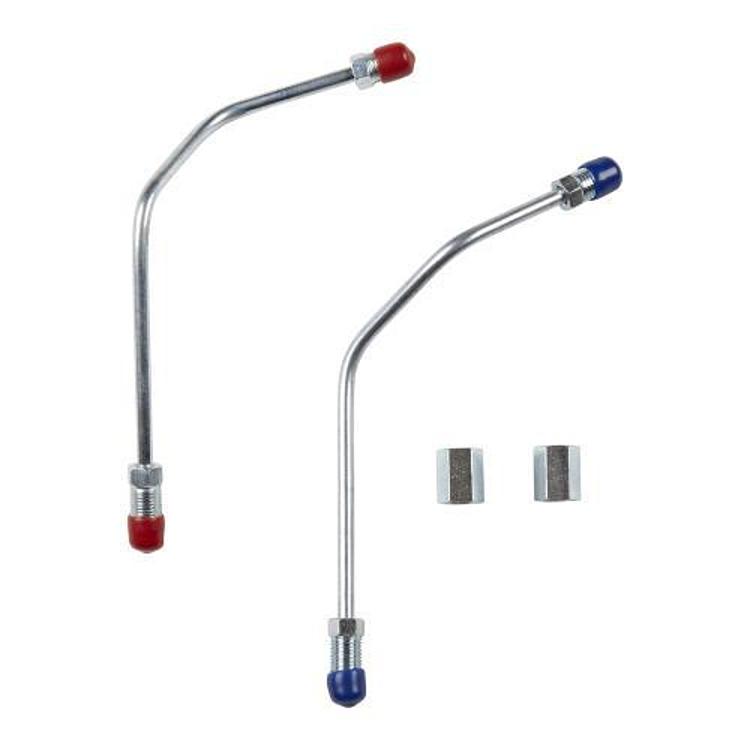

Front hard line extensions, a coupler and the fastening hardware.
