Rubicon Express 5.5 Inch Extreme Duty 4-Link Long Arm Lift Kit with Shocks – JK4425R

Rubicon Express

Shop Rubicon Express Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5.5-inch extreme-duty 4-link front and rear long arm lift for 2-door models
  • Includes reservoir monotube shocks
  • Upper and lower control arm mounts, transmission crossmember and lift springs
  • Brake lines included; no-weld application
  • No model years listed, so confirm fitment before ordering

Description

Overview

The Rubicon Express JK4425R is a 5.5-inch extreme-duty lift kit with front and rear 4-link long arm suspension, offered for 2-door models with reservoir monotube shocks. It is part of Rubicon Express’s JK suspension line. The kit includes upper and lower control arm mounts, a transmission crossmember, lift springs and brake lines, so the lift covers the main suspension and drivetrain components.

The system is built for extreme-duty use with chromoly upper and lower control arms, Super-Flex spherical ball joints and PT-Meg Super-Ride bushings. The full-width transmission crossmember is part of the no-weld design. The lift height range for this kit runs from 5 to 6.99 inches, and optional high-performance monotube shocks are available for other lift heights.

Key features

  • 5.5-inch lift height, in the 5 to 6.99-inch range on the chart
  • Front and rear 4-link long arm system
  • Upper and lower control arm mounts included
  • Transmission crossmember included
  • Lift springs included
  • Brake lines included
  • Reservoir monotube shocks included
  • No-weld application

Choosing shocks and setup

A long arm 4-link replaces the factory control arms with longer links that control axle movement front and rear. That gives the axle a fixed path of travel, which helps on steep climbs and rough trails where wheel travel is high. The trade-off is that arm angles change, so pinion and steering geometry move with the lift and need to be set up together rather than in isolation.

Ball joints and bushings take most of the load in this type of system. Inspect the spherical joints and the bushings at each service interval, looking for play, torn boots and cracked rubber. Because the arms are chromoly, grease fittings and boot condition should be part of routine checks rather than something addressed only after a failure.

Shock selection matters more with a lift this size. Shocks should be matched to the new arm angles and the vehicle weight, and stock shocks are often too short for the new geometry. Keep the brake hoses and sensor wires clear of the new links, and re-check clearances after the first few trail runs.

  • Re-torque control arm and crossmember bolts after the first trail runs
  • Check ball joint boots and bushings at each service interval
  • Recheck brake line routing after any suspension adjustment

Specifications

Brand Rubicon Express
Part number JK4425R
UPC 700007272411
System type Extreme-duty 4-link long arm
Lift height 5.5 inches (chart range 5 to 6.99 inches)
Body style 2-door models
Shocks Reservoir monotube, included
Installation No-weld application
Included hardware Control arm mounts, transmission crossmember, lift springs, brake lines

Vehicle fitment

It fits 2-door models. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5.5-inch 4-link conversion changes control arm geometry, pinion angle and steering, so a full alignment and driveline angle check should be done after installation. Because the kit includes brake lines, the brake system should be checked for proper routing once the work is complete.

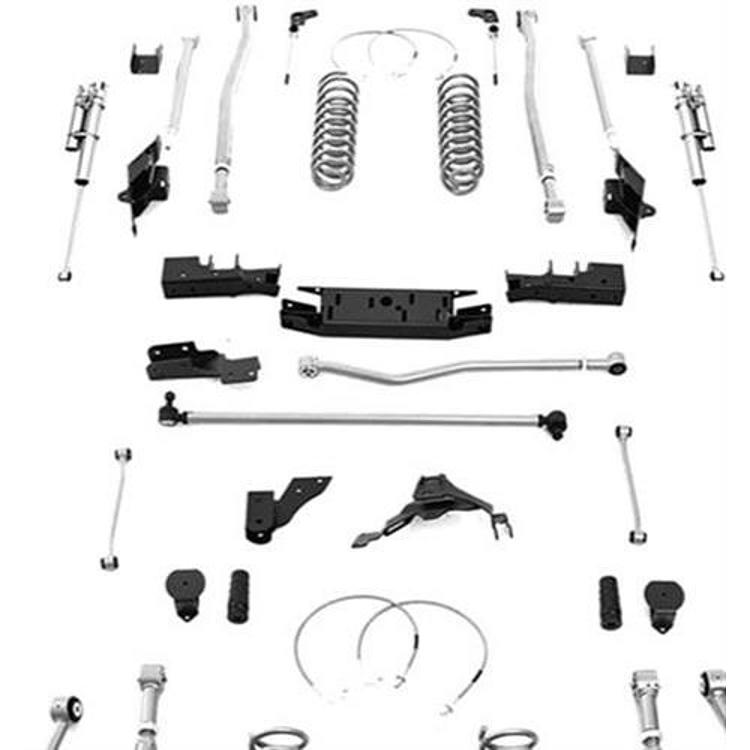

What’s included

The kit includes the front and rear 4-link long arm components, upper and lower control arm mounts, the transmission crossmember, lift springs, brake lines and reservoir monotube shocks.

SKU: R/EJK4425R Category:

Specification

Shipping weight 311.80 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the JK4425R include shocks?

Yes. The kit includes reservoir monotube shocks, so no separate shock purchase is needed for the 5.5-inch lift. They come in the box with the arms, springs and crossmember.

Is this kit for 2-door or 4-door models?

It is designed for 2-door models. Confirm your body style, year and trim before ordering. Check that your vehicle matches the 2-door body style before you buy.

Does the kit need welding?

It is a no-weld design, and the full-width transmission crossmember is part of that design. The kit also includes brake lines and lift springs, so no welding is needed for the base install. Check the package contents against your installation before starting.

How much lift does this kit give?

It gives 5.5 inches of lift, within a lift height range of 5 to 6.99 inches. Other lift heights in the series can be ordered with optional high-performance monotube shocks. Confirm fit for your vehicle's year, model and trim before ordering.

How often should the bushings and ball joints be inspected?

Inspect them at every service interval and after hard off-road use. Look for play in the joints, cracked or torn boots, and worn rubber in the bushings. Replace any part that shows movement or damage before it affects alignment or steering.
