Overview
The Rubicon Express RE7123FPR is a short arm lift kit for the Jeep Wrangler JK, built for both on-road and off-road use. Rubicon Express pairs it with front and rear Fox Performance Resi shocks, so the suspension and shocks come from one kit.
The kit uses adjustable upper control arms and fixed lower control arms. Both sets of arms use Super-Flex spherical ball joints that Rubicon Express describes as serviceable, and the new Super-Ride bushings are part of the design.
The FOX warranty covers the FOX Performance Series shocks, which are not eligible for the Rubicon Express Advantage Warranty.
Key features
- Short arm suspension system
- Adjustable upper control arms
- Fixed lower control arms
- Serviceable Super-Flex spherical ball joints
- New Super-Ride bushings

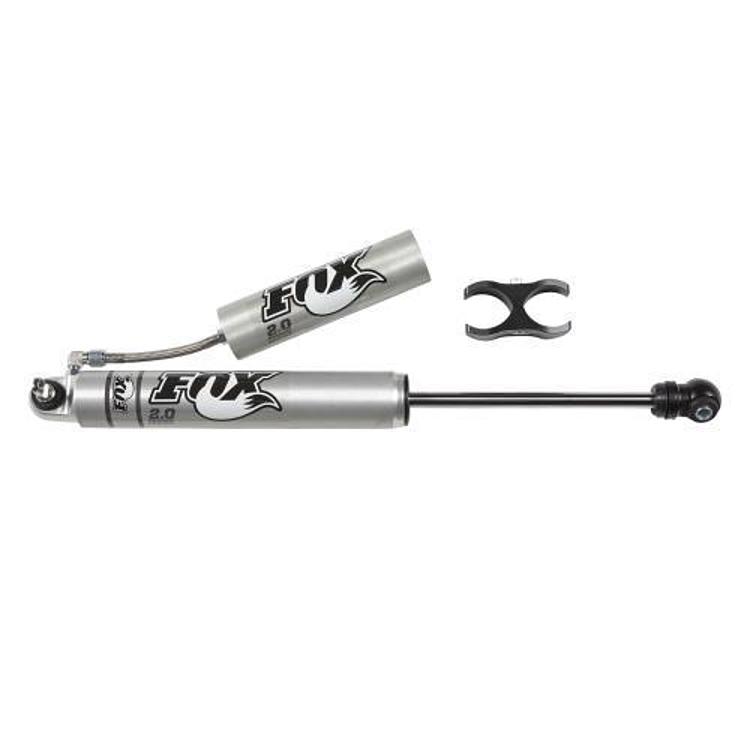

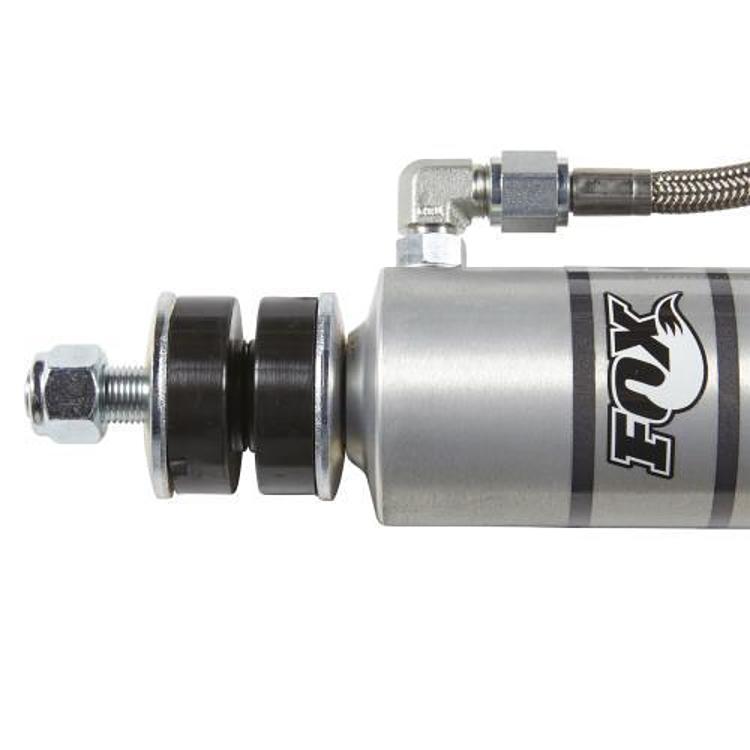

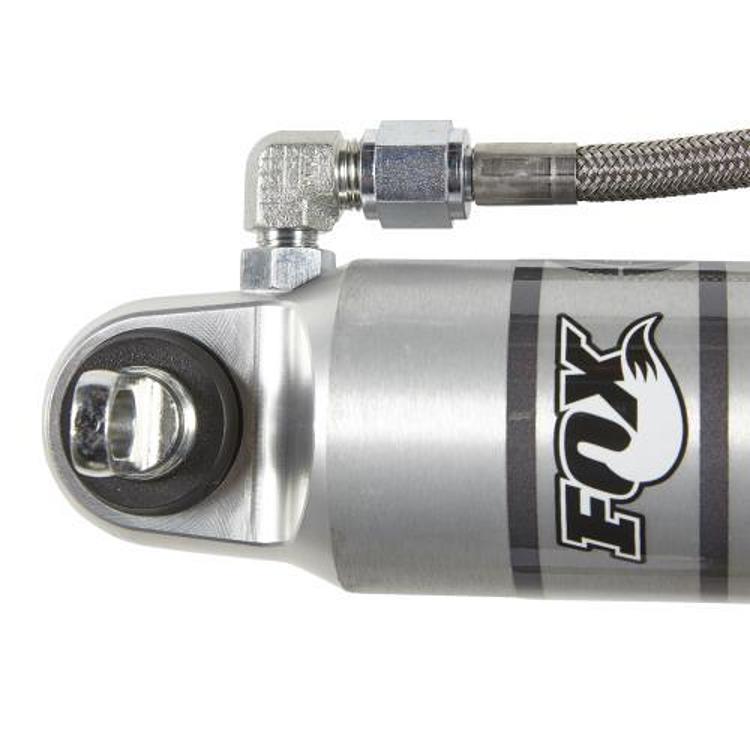

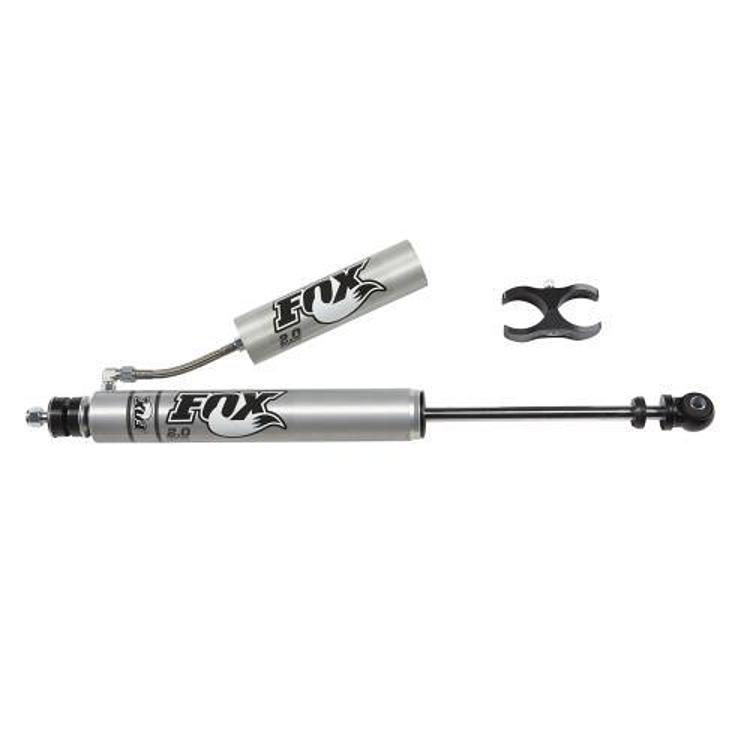

- Front and rear Fox Performance Resi shocks
- Designed for on and off-road performance
Short arm geometry basics
Short arm systems use shorter control arms to move the axle, which changes how the suspension moves over bumps. Adjustable upper arms are the usual way to set caster and pinion angles after a lift, so the geometry can be corrected instead of left to drift. Fixed lower arms keep the lower mounting points consistent from one service to the next.
Bushings and ball joints are the wear points to inspect on any short arm system. Look for torn boots, dry joints, clicking over bumps or loose steering. Replacing a worn joint often leads to a fresh alignment, and tires may show uneven wear if the angles drift. Keep the shock and spring mounts in view during the same check.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7123FPR |
| Suspension type | Super-Flex short arm |
| Lift height range | 2.5 to 3.5 inches |
| Upper control arms | Adjustable |
| Lower control arms | Fixed |
| Ball joints | Serviceable Super-Flex spherical |
| Bushings | New Super-Ride |
| Shocks | Fox Performance Resi, front and rear |
| Rear lift | Short arm with coil springs |
| Warranty | FOX warranty on the shocks |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK). Confirm the body style matches your vehicle before ordering.
Other generations are not covered, including the JL Wrangler and the Gladiator, and the older TJ and LJ. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
A 2012 or newer truck may need an exhaust modification or a front drive shaft. The adjustable upper arms set the caster and pinion angles, so have the alignment checked once the kit is installed.

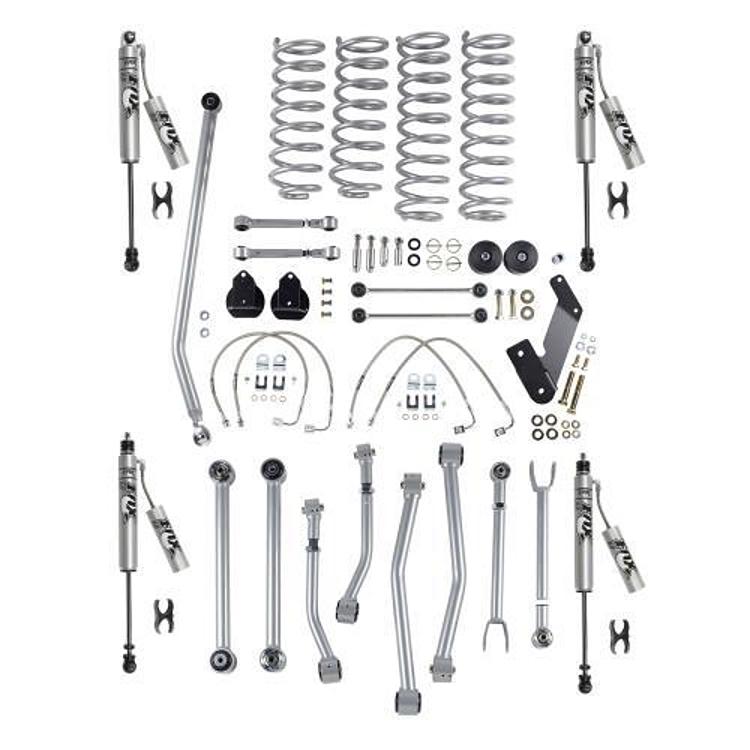

What’s included
A short arm suspension system with adjustable upper control arms, fixed lower control arms, Super-Flex spherical ball joints, Super-Ride bushings and front and rear Fox Performance Resi shocks.
