Rubicon Express 3.5 Inch Extreme Duty 4-Link Front/Rear 3-Link Long Arm Lift Kit with Fox Performance Resi Shocks – JK4343FPR

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch extreme-duty 4-link front and 3-link rear long arm lift with Fox Performance Resi shocks
  • Front and rear Fox Performance Resi shocks included
  • Adjustable chromoly control arms with Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Fits the 2007-2017 Jeep Wrangler (JK) with a 3.5-inch long arm lift

Description

Overview

The Rubicon Express JK4343FPR is a 3.5-inch extreme-duty long arm lift kit with a 4-link front, a 3-link rear and Fox Performance Resi shocks. It fits the 2007-2017 Jeep Wrangler (JK). It is one of Rubicon Express’s TAP-exclusive kit numbers that pair its suspension with Fox shocks.

The long arm system is built from adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints and PT-Meg Super-Ride bushings. The full-width transmission crossmember adds durability and frame rigidity. Fox Performance Series shocks carry Fox’s own warranty rather than the Rubicon Express Advantage Warranty.

Key features

  • 3.5-inch lift height
  • Extreme-duty 4-link front and 3-link rear long arm system
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Front and rear Fox Performance Resi shocks
  • Designed for installation without welding

Resi shock considerations

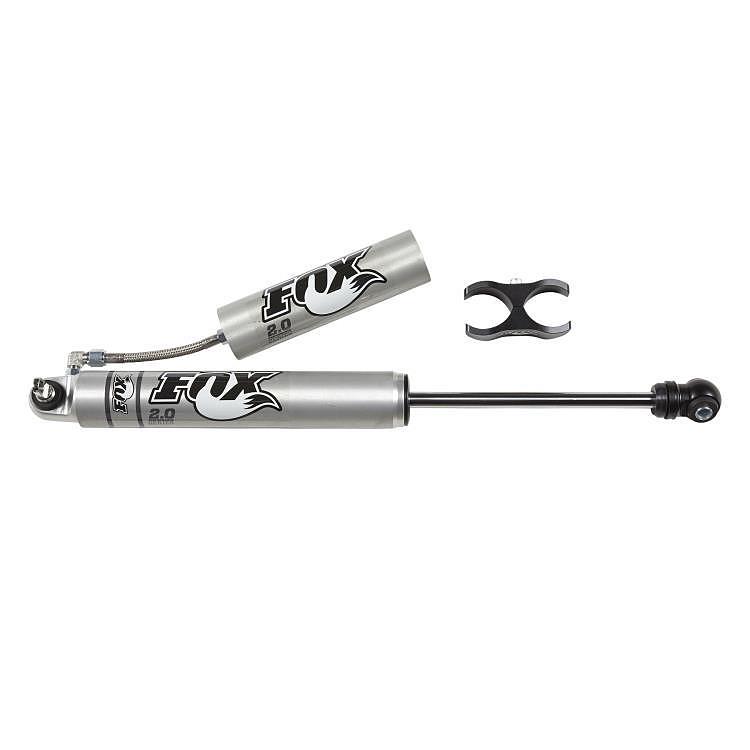

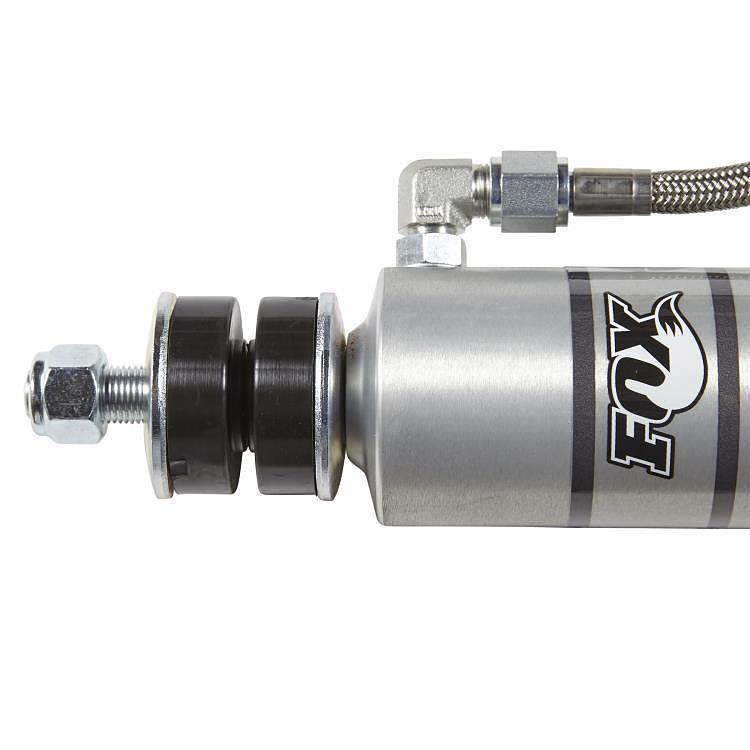

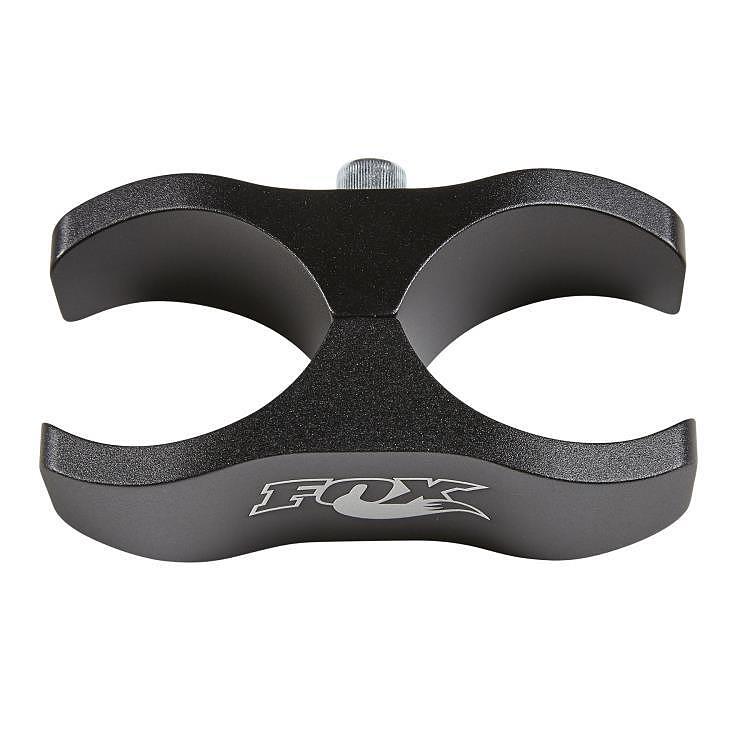

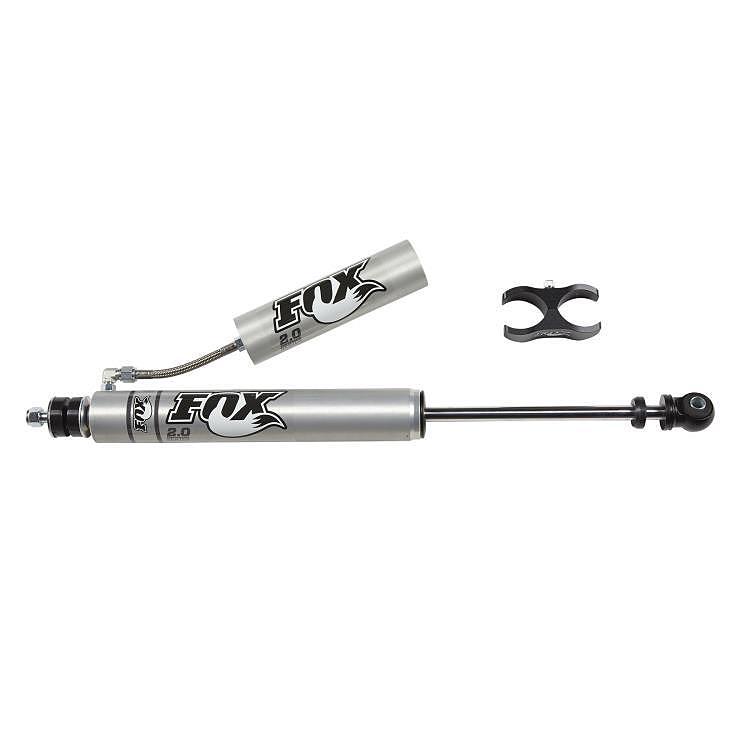

Resi shocks use a remote reservoir, which helps the damper keep working consistently when it gets hot. Heat builds up during long descents and sustained off-road use, and a reservoir gives the shock room to handle that heat. The reservoir also needs a secure mount, so check the bracket and hose routing during installation to keep it clear of rocks and brush.

Routine care for remote reservoir shocks is simple but important. Look for leaks at the body and the reservoir hose, check that the reservoir stays secure after rough trails, and keep the shock shaft clean. Replace worn mounting bushings before they allow the shock to rock or rattle. If the shock begins to feel different on pavement, inspect it before the next trail run. Good upkeep keeps the damping consistent over time.

Specifications

Brand Rubicon Express
Part number JK4343FPR
UPC 700008204561
System type Extreme-duty 4-link front and 3-link rear long arm
Lift height 3.5 inches (fitment chart range 2.5 to 3.5 inches)
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Shocks Fox Performance Resi, front and rear, included

Vehicle fitment

It is built for the 2007-2017 Jeep Wrangler (JK).

The listed years stop at 2017, so a 2018 Wrangler JK is not covered by this list, and the TJ, LJ and JL generations are not included. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Changing to a 4-link front and 3-link rear layout alters control arm angles and the pinion geometry. The alignment and driveline angles should be checked once the lift is installed.

What’s included

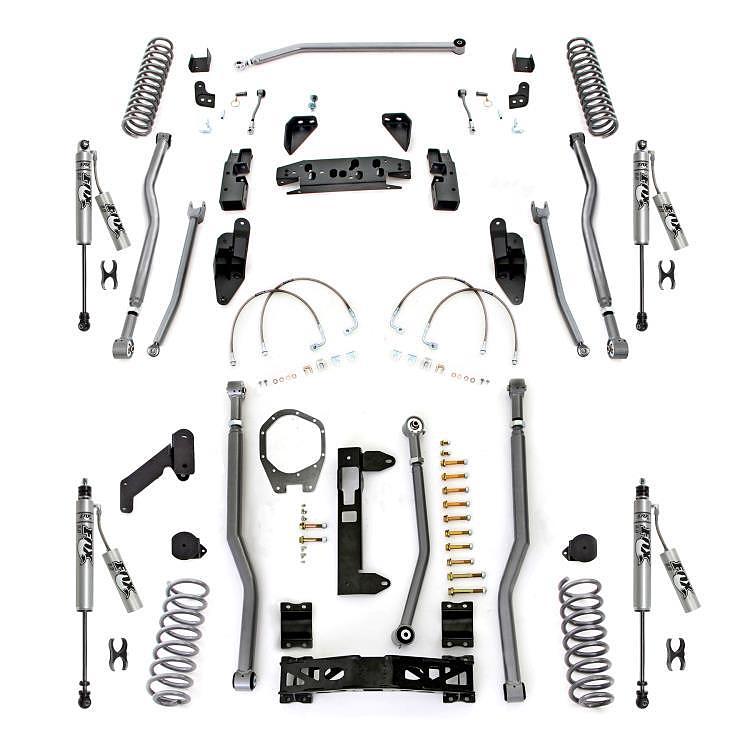

The kit includes the adjustable chromoly control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, the full-width transmission crossmember and front and rear Fox Performance Resi shocks.

SKU: R/EJK4343FPR Category:

Specification

Shipping weight 320.25 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–2017Unlimited 70th Anniversary, Unlimited 75th Anniversary, Unlimited Rubicon, Unlimited Sahara, Unlimited Sport, Unlimited Sport S, Unlimited X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK4343FPR include shocks?

Yes. Front and rear Fox Performance Resi shocks come with the kit, and both are included in the set for the front and rear axles.

What model years does the JK4343FPR fit?

The listed fitment is the 2007-2017 Jeep Wrangler (JK). Confirm your vehicle's year, model and trim before ordering. The listed fitment stops at 2017, so later Wrangler years are not included.

Who covers the Fox shocks under warranty?

Fox covers the Fox Performance Series shocks under its own warranty. These shocks do not qualify for the Rubicon Express Advantage Warranty, so claims go to Fox.

Does this kit require welding?

No. Welding is skipped in this installation method, which relies on the arm set and crossmember as supplied. Plan alignment and driveline checks once the lift is in place.

How often should the reservoir and hoses be checked?

Look them over at each service and after any hard trail run. Check for leaks, rubbing and loose clamps, and make sure the reservoir has not been knocked out of its mount.
