Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link – No Shocks – RE7505

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7505 5.5 inch Extreme-Duty long arm lift kit with rear Tri-Link, no shocks
  • Listed fit: 1997–2002 Jeep Wrangler TJ
  • Chromoly long arms, Builder Ball and Super-Flex spherical ball joints
  • Lift height range 5 to 6.99 inches; tuned springs and stainless steel brake lines

Description

Overview

The Rubicon Express RE7505 is a 5.5-inch Extreme-Duty long arm lift kit with a rear Tri-Link, made for the 1997–2002 Jeep Wrangler TJ. The lift falls within the 5 to 6.99-inch range. The kit is sold without shocks.

This long arm is a complete suspension replacement that uses longer control arms to improve geometry on a lifted vehicle. The longer arms add stability on and off road, reduce torque roll and improve trail traction compared with a standard short arm lift.

The rear Tri-Link replaces the rear track bar, which lets the wheel travel straight up and down. The link adds anti-squat on steep climbs and improves highway tracking.

Key features

  • 5.5 inch lift with a listed range of 5 to 6.99 inches
  • Chromoly long arms made from 4130 chromoly tubing
  • Rear Tri-Link that replaces the rear track bar
  • Builder Ball misalignment joint, rated by Rubicon Express for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings, tuned lift springs and stainless steel brake lines

Long arm lift planning

Moving to a 5 to 6.99-inch lift with long arms is a larger change than a basic spring kit, so the rest of the vehicle has to be planned around it. Brake hose length, steering stop clearance and driveline angles all shift as the arms change position, and each one should be checked once the work is done. Plan the install in a shop with a rack and a clear checklist.

Because the kit ships without shocks, the shock choice is open. Match shock length to the new arm position and lift height, and consider whether the current shocks have enough travel. Replacing worn bump stops and bushings during the same job is a practical way to keep the ride stable over time.

  • Plan brake hose length for the higher lift
  • Check rear Tri-Link bolts after the first trail runs
  • Confirm steering stop clearance after alignment
  • Schedule a driveline inspection at the first service

Specifications

Brand Rubicon Express
Part number RE7505
UPC 614901442045
Lift height range 5 to 6.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing
Belly pan Three-piece, for transfer case and transmission access
Shocks included No
Fitment Direct fit

Vehicle fitment

It fits the 1997–2002 Jeep Wrangler (TJ), including the SE, Sahara and Sport models.

Check your vehicle’s year, model and body style before ordering, including whether it is a 2003–2006 TJ, JK or YJ.

Installation notes

A 5 to 6.99-inch lift changes alignment and driveline angles considerably, so a driveline check and a full alignment are needed after installation. It is bolt-on for factory Dana 35 and Dana 44 rear axles.

What’s included

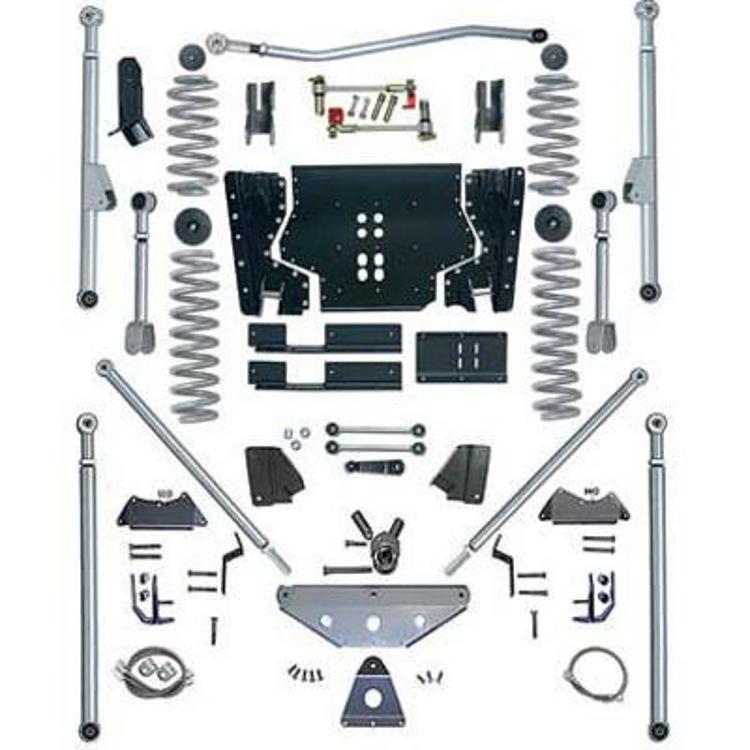

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, PT-Meg Super-Ride bushings, tuned lift springs, stainless steel brake lines and a three-piece belly pan.

Not included: shocks.

SKU: R/ERE7505 Category:

Specification

Shipping weight 384.75 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–2002SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

What lift height is the RE7505?

The listed lift height range is 5 to 6.99 inches, and the product name gives 5.5 inch. Check tire and driveline clearance for that height before ordering.

Does the RE7505 include shocks?

No. The kit is sold without shocks, so you will need your current shocks or a separate set matched to the higher lift.

Does the RE7505 fit a 2003 Jeep Wrangler TJ?

The kit is made for the 1997 to 2002 Jeep Wrangler TJ, including the SE, Sahara and Sport models. Confirm your model year and body style before ordering, since 2003 is outside that range.

What should I look for when choosing shocks for a long arm lift?

Choose shocks with enough extension and compression travel for the new arm position, and confirm the mounting points match the arms. Shocks that worked on a stock TJ often run out of travel at higher lift heights.
