Rubicon Express 5.5 Inch Extreme Duty 4-Link Long Arm Lift Kit w/Shocks – JK4445R

Rubicon Express

Shop Rubicon Express Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 5.5-inch extreme-duty 4-link front and rear long arm lift with shocks
  • Includes reservoir monotube shocks
  • Upper and lower control arms and mounts, transmission crossmember and lift springs
  • Brake lines included
  • No model years listed, so confirm fitment before ordering

Description

Overview

The Rubicon Express JK4445R is a 5.5-inch extreme-duty lift kit with a front and rear 4-link long arm suspension and reservoir monotube shocks. It belongs to Rubicon Express’s JK suspension range. The kit includes upper and lower control arms with mounts, a transmission crossmember, lift springs and brake lines, which together cover the main front and rear suspension parts.

The extreme-duty system uses chromoly upper and lower control arms with adjustable settings, Super-Flex spherical ball joints and PT-Meg Super-Ride bushings. The full-width transmission crossmember adds frame rigidity. Its lift height range runs from 5 to 6.99 inches, and optional high-performance monotube shocks are available in other lift heights.

Key features

  • 5.5-inch lift height, in the 5 to 6.99-inch range on the chart
  • Front and rear 4-link long arm system
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Reservoir monotube shocks included
  • Brake lines and lift springs included

Adjustable arms and alignment

Adjustable control arms let the axle position and pinion angle be set after the lift is in place. That flexibility is useful, but every change shifts the alignment, so the settings should be made in small steps and recorded. Setting the arms at the same length on both sides keeps the axle square to the frame.

Chromoly arms and Super-Flex joints are built for high articulation and rough use. Their joints still wear, and boots and grease fittings should be checked on a regular schedule. Bushings in the arm mounts also carry a lot of load, so their condition affects how the vehicle tracks.

  • Set arm lengths evenly on both sides
  • Record settings before and after each change
  • Inspect joint boots for tears and grit

Specifications

Brand Rubicon Express
Part number JK4445R
UPC 700007272431
System type Extreme-duty 4-link long arm with shocks
Lift height 5.5 inches (chart range 5 to 6.99 inches)
Control arms Chromoly upper and lower, adjustable, with mounts
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Shocks Reservoir monotube, included
Included hardware Transmission crossmember, lift springs, brake lines

Vehicle fitment

It is part of the JK suspension range. Confirm the year and trim that match your vehicle before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A 5.5-inch 4-link lift changes control arm angles, pinion angle and steering geometry, so a full alignment and driveline angle check should follow the install. The brake lines included with the kit should be routed and checked before the vehicle is driven.

What’s included

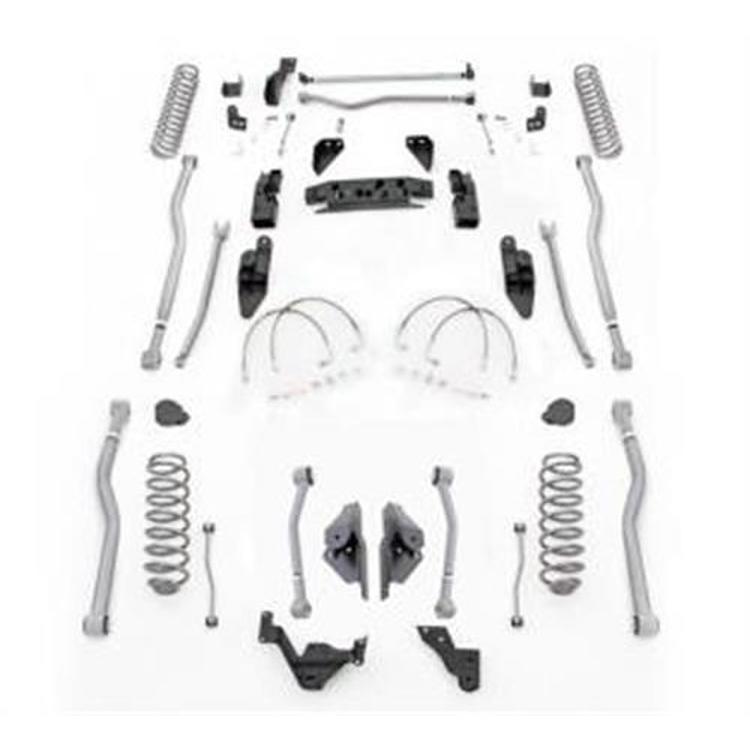

The kit includes the front and rear 4-link long arm components, upper and lower control arms with mounts, the transmission crossmember, lift springs, brake lines and reservoir monotube shocks.

SKU: R/EJK4445R Category:

Specification

Shipping weight 309.40 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the JK4445R include shocks?

Yes. Reservoir monotube shocks are included, so no separate shock purchase is needed for the 5.5-inch lift. The shock package comes with the kit.

What lift height is the JK4445R?

It gives 5.5 inches of lift, within the 5 to 6.99-inch range for this kit. The front and rear 4-link components are part of the package.

Which parts come with the kit?

It includes the front and rear 4-link components, upper and lower control arms with mounts, the transmission crossmember, lift springs, brake lines and reservoir monotube shocks. The lift range for this kit is 5 to 6.99 inches.

Which Jeeps does the JK4445R fit?

It is part of the JK suspension range. Compare the year and trim with your vehicle before buying. The kit includes brake lines and lift springs with the control arm mounts.

Can the control arms be adjusted after install?

Yes. Adjustable arms let the axle position and pinion angle be set. Re-check alignment after each change and record the settings. Small adjustments made in steps are easier to set correctly.

What should be checked on the brake lines?

Check routing for rubbing, clearance at full suspension travel and secure fittings at each bracket. Look for leaks at the fittings and any chafing on the lines. Bleed the system after any line is disconnected.
