Overview
The Rubicon Express RE7204M is a 4.5-inch extreme-duty long arm lift kit with a rear track bar and mono tube shocks, made for the 1997–2006 Jeep Wrangler TJ. It is designed as a complete suspension replacement.
Rubicon Express offered the first commercial long arm suspension for the TJ. The longer control arms are designed to improve suspension geometry when the vehicle is lifted, aiming for better stability on and off road, less torque roll and improved trail traction compared with standard short arm lifts.
Key features
- Chromoly long arms

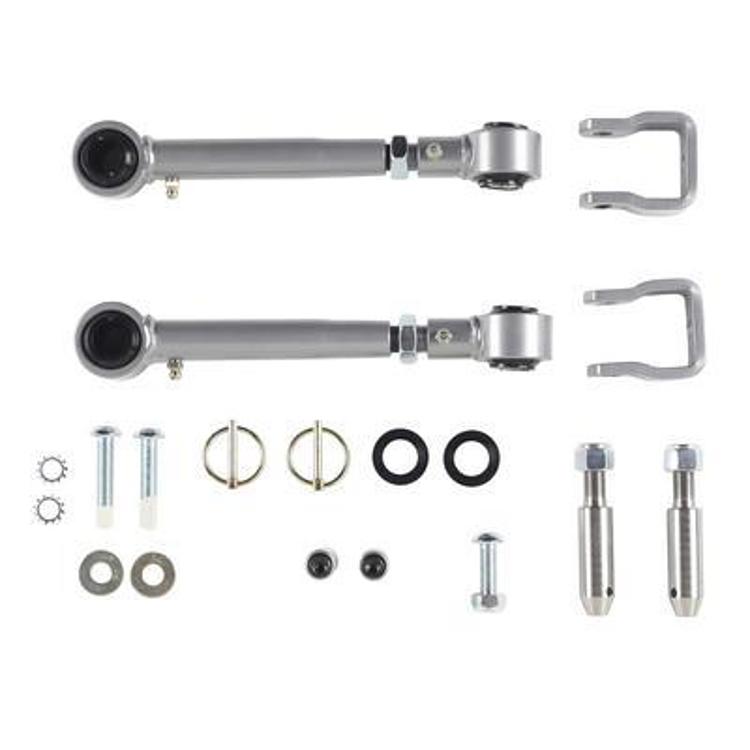

- Adjustable control arms with serviceable Super-Flex spherical ball joints
- New PT-Meg Super-Ride bushings for on- and off-road use
- Tuned lift springs

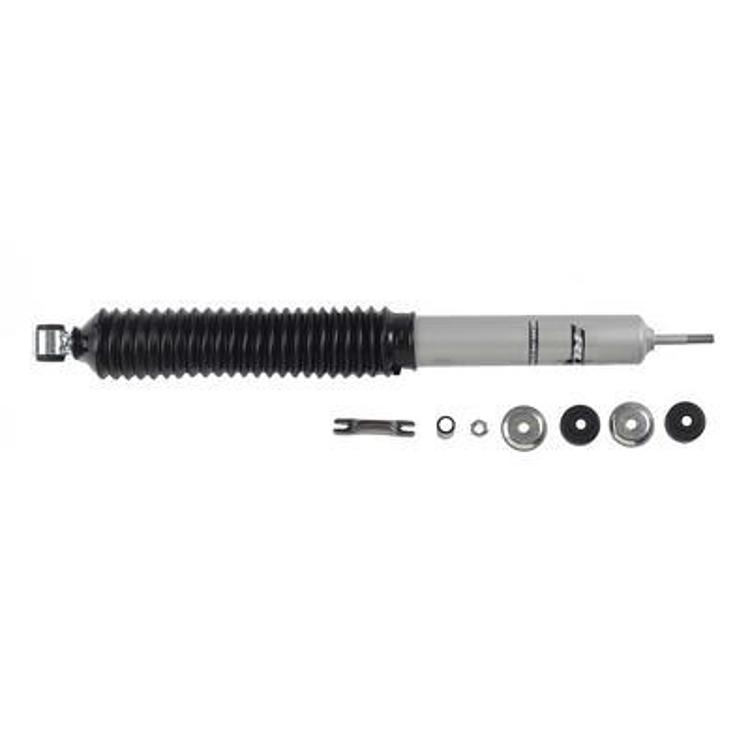

- Mono tube shocks
- Front and rear stainless steel brake lines
- Three-piece belly pan for transfer case and transmission access
Long arm geometry explained
Long arms change the angle at which the axle and control arms work when the body is raised. A shorter arm forces a steeper angle, which can push the axle around under power. Longer arms keep that angle flatter, so the ride tends to feel more even and the drivetrain stays better behaved on climbs and off camber sections.
A complete long arm system ties together the arms, springs, bushings and shocks, so the parts are matched to each other. When one component is replaced later, check that it still suits the arm geometry. Ball joints and bushings should be inspected for play, and the belly pan should be checked for damage after rock strikes.
- Inspect ball joints for play at each service
- Check bushings for cracking or tearing
- Re-torque fasteners after the first drives
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7204M |
| UPC | 614901452815 |
| Lift | 4.5 in |
| Lift height range | 3 to 4.99 in |
| Suspension type | Extreme-duty long arm |
| Rear lift method | Coil springs |
| Control arms | Chromoly, adjustable |
| Bushings | PT-Meg Super-Ride |
| Ball joints | Serviceable Super-Flex spherical |
| Brake lines | Stainless steel, front and rear |
| Shocks | Mono tube, included |
Vehicle fitment
This kit is made for the 1997–2006 Jeep Wrangler TJ. Other Wrangler generations, including the YJ, JK and JL, and the LJ are not covered.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
This is a complete suspension replacement rather than a spacer lift. Plan on an alignment and driveline angle check once the long arms and springs are installed.
What’s included

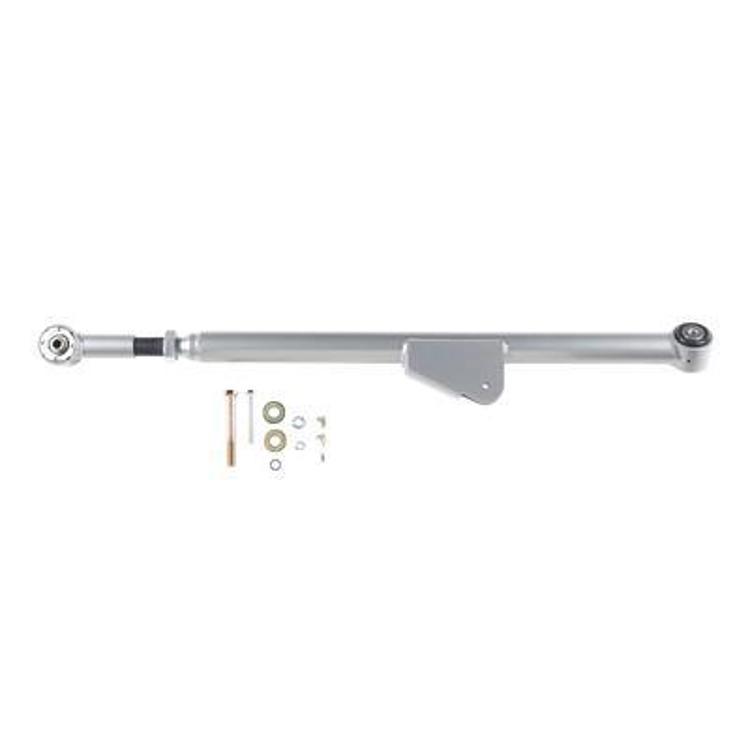

Chromoly long arms, adjustable control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, tuned lift springs, mono tube shocks, a rear track bar, front and rear stainless steel brake lines and a three-piece belly pan.
