Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar with Twin Tube Shocks – RE7214T

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch long arm lift with twin tube shocks
  • Lift height range 3 to 4.99 inches
  • Suited to the 2003–2006 Wrangler TJ
  • Tuned lift springs and rear track bar

Description

Overview

The Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar with Twin Tube Shocks (part number RE7214T) is a long arm suspension lift for the 2003–2006 Jeep Wrangler TJ. It comes with twin tube shocks, and the listed lift height range is 3 to 4.99 inches.

Each arm is longer than a standard short arm, which keeps the axle path steadier once the body is raised. That steadier path supports stability and trail traction on both paved and off-road surfaces.

Twin tube shocks come with the kit and are matched to the 3 to 4.99 inch lift range. Tuned lift springs, a rear track bar and a three-piece belly pan are also included. Brake hose length should be checked before installing the long arms.

Key features

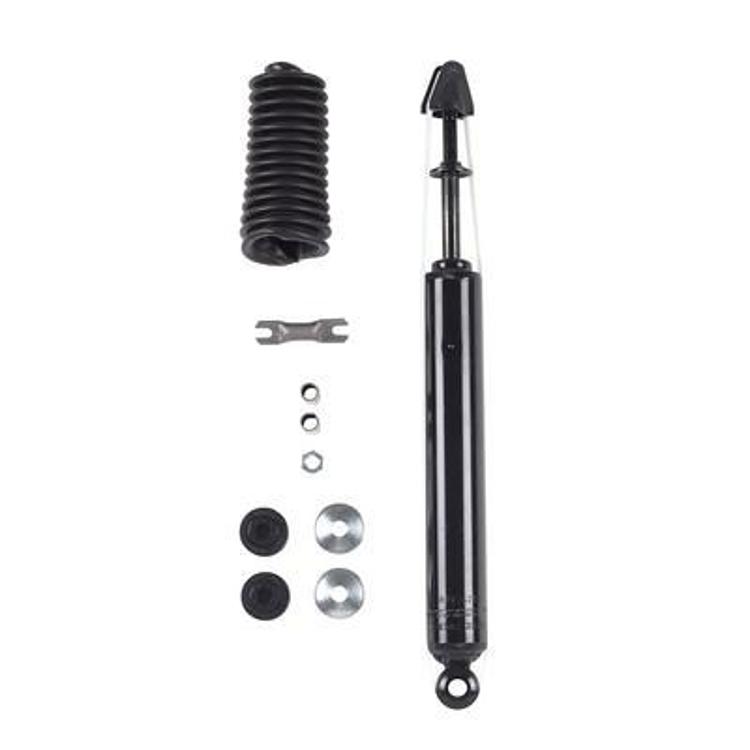

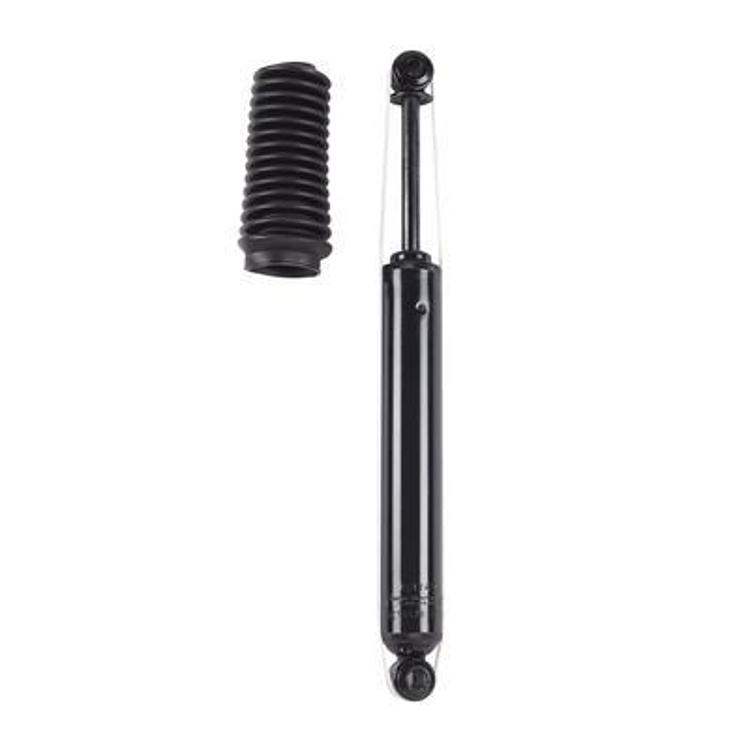

  • Twin tube shocks included
  • Chromoly long control arms
  • PT-Meg Super-Ride bushings

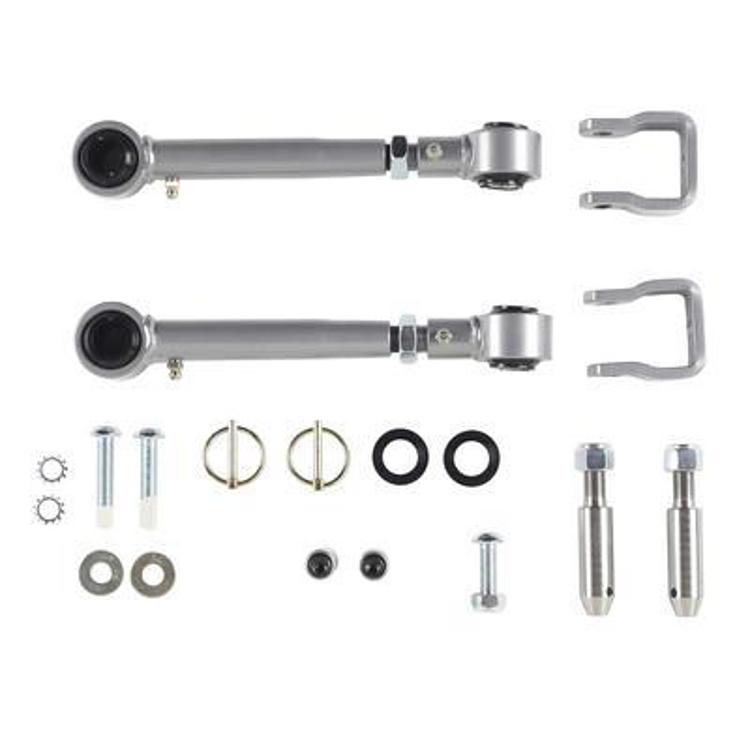

  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Tuned lift springs

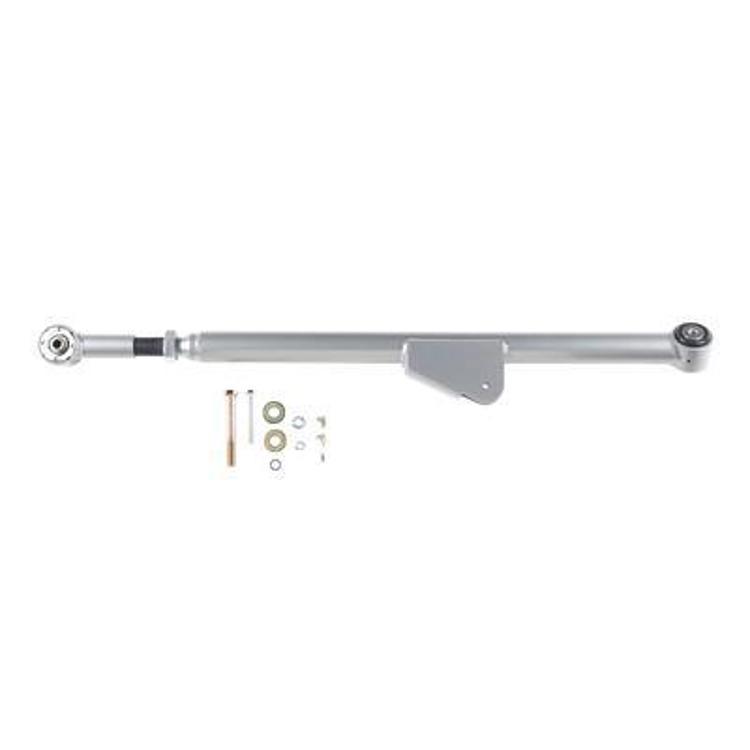

  • Rear track bar

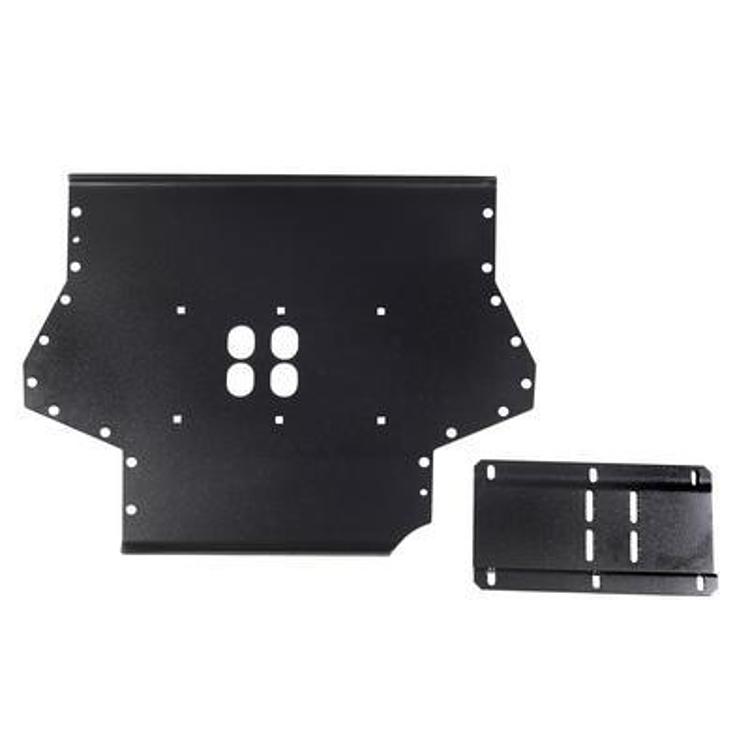

  • Three-piece belly pan

Keeping twin tube shocks healthy

Twin tube shocks use a pressure tube with a reserve chamber, a layout that has been common on trucks for many years. They handle everyday street driving and moderate trail use well, and they are usually the simpler option to service. Their performance depends heavily on the mounts being square and the bushings being in good shape, so the surrounding parts matter as much as the shock itself.

After a lift, shock travel can change, so check the shocks for bottoming out on rough ground. Regular inspection of the seals, mounts and eyelet bushings catches wear early. Clean the shock bodies after mud runs, since grit can work into the seals and shorten their life. Track bar bushings, bump stops and brake hoses are often checked at the same time once the ride height has changed.

  • Look for oil seepage around the shaft
  • Check mounting bolts after the first drives
  • Inspect eyelet bushings for cracks

Specifications

Brand Rubicon Express
Part number RE7214T
Lift height range 3 to 4.99 inches
Suspension type Extreme-Duty long arm
Shock absorbers Twin tube, included
Fitment type Direct fit

Vehicle fitment

Covered trims for the 2003–2006 Wrangler TJ are 65th Anniversary Edition, Rubicon, SE, Sahara, Sport and X.

The 1997–2002 TJ and the LJ Unlimited are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The twin tube shocks come with the kit, so the install centers on the arms, springs and track bar. Check the alignment and the driveline angles when the work is done. Check the shock mounts and the track bar bracket fit before final torque. Check that the twin tube shocks clear the frame at full droop.

What’s included

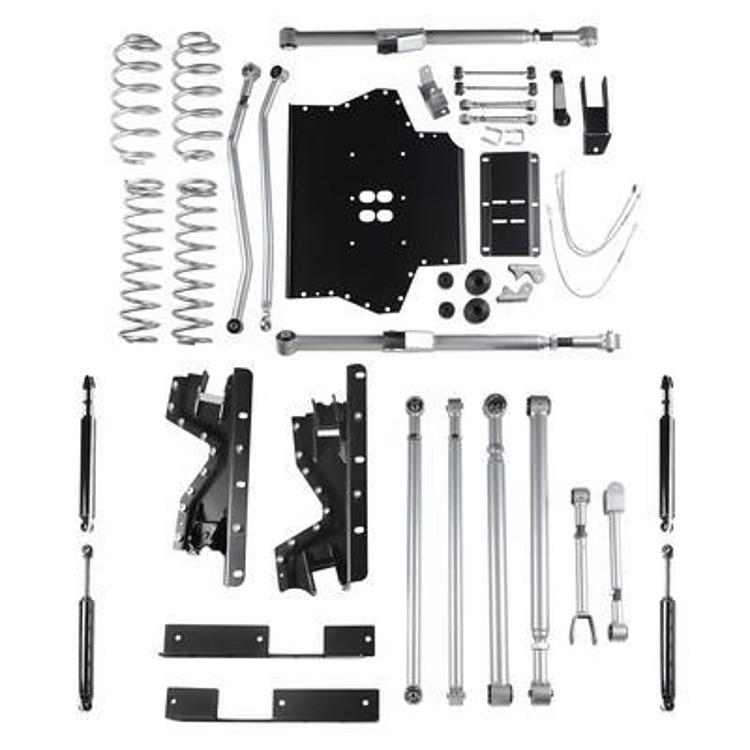

Twin tube shocks, tuned lift springs, chromoly long arms, PT-Meg bushings, Super-Flex spherical ball joints, a rear track bar and a three-piece belly pan.

SKU: R/ERE7214T Category:

Specification

Shipping weight 391.90 lbs
Package dimensions 48.00 × 24.50 × 24.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rubicon Express RE7214T include twin tube shocks?

Yes. Twin tube shocks come with the RE7214T, so the kit includes a full set of shocks for the 3 to 4.99 inch lift range. No separate shock purchase is needed.

Will the RE7214T fit a 2006 Jeep Wrangler TJ?

Yes. A 2006 Wrangler TJ is within the 2003–2006 model years this kit covers. Confirm your vehicle's year, model and trim before ordering.

Are brake lines part of this kit?

Check the brake hose length before the long arms are installed, since the lift changes the path the hose travels and the stock length may no longer suit the new ride height.

Do twin tube shocks need more upkeep than mono tube shocks?

Not necessarily. Twin tube shocks are generally simpler to service, while mono tube designs often run cooler under sustained use. Upkeep for either type comes down to keeping seals clean, mounts tight and bushings in good shape.
