Rubicon Express 4.5 Inch Extreme Duty 4-Link Front/Rear Radius Long Arm Lift Kit – JK4R24

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch extreme-duty 4-link front and radius rear long arm lift
  • Adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Designed for installation without welding
  • Fits the 2007-2018 Jeep Wrangler (JK)

Description

Overview

The Rubicon Express JK4R24 is a 4.5-inch extreme-duty long arm lift kit with a 4-link front and radius rear. It fits the 2007-2018 Jeep Wrangler (JK) and belongs to Rubicon Express’s JK suspension line. Its adjustable chromoly upper and lower control arms use Super-Flex spherical ball joints and PT-Meg Super-Ride bushings.

The system keeps control and performance while leaving articulation unrestricted. The full-width transmission crossmember adds durability and frame rigidity, and the install needs no welding, which simplifies work compared with many long arm kits. Optional high-performance monotube shocks, a belly pan and CNC-machined steering knuckles are available for the system. The lift range is 3 to 4.99 inches.

Key features

  • 4.5-inch lift height, within the 3 to 4.99-inch range
  • Extreme-duty 4-link front and radius rear layout
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Designed for installation without welding
  • Optional monotube shocks, belly pan and steering knuckle

Before you buy

A long arm lift changes how the axles and driveline sit under the vehicle, so it is worth thinking about the whole setup before ordering. Long arm kits are often bought alongside other parts that carry the new suspension geometry, such as tie rod ends, drag links, brake lines and driveshafts, since the arms alter the angles those parts work through. Planning for those related replacements early keeps the build from stalling halfway through.

Articulation is one reason owners choose long arms. Adjustable control arms let the installer dial in caster and pinion angle, but adjustments only help if the vehicle is aligned afterward. Upgrades such as a steering knuckle or belly pan are separate decisions and should be chosen to match how the vehicle is used on and off the road.

  • Inspect ball joints and bushings for play before the install
  • Plan for an alignment shop visit once the work is done
  • Check brake line length and steering components for clearance

Specifications

Brand Rubicon Express
Part number JK4R24
UPC 70000651239
System type Extreme-duty 4-link front and radius rear long arm
Lift height 4.5 inches (chart range 3 to 4.99 inches)
Rear lift method Radius arm
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride

Vehicle fitment

The kit fits the 2007-2018 Jeep Wrangler (JK) across the 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X versions.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The radius rear and 4-link front change control arm and pinion geometry, so the alignment and driveline angles should be checked after the install.

What’s included

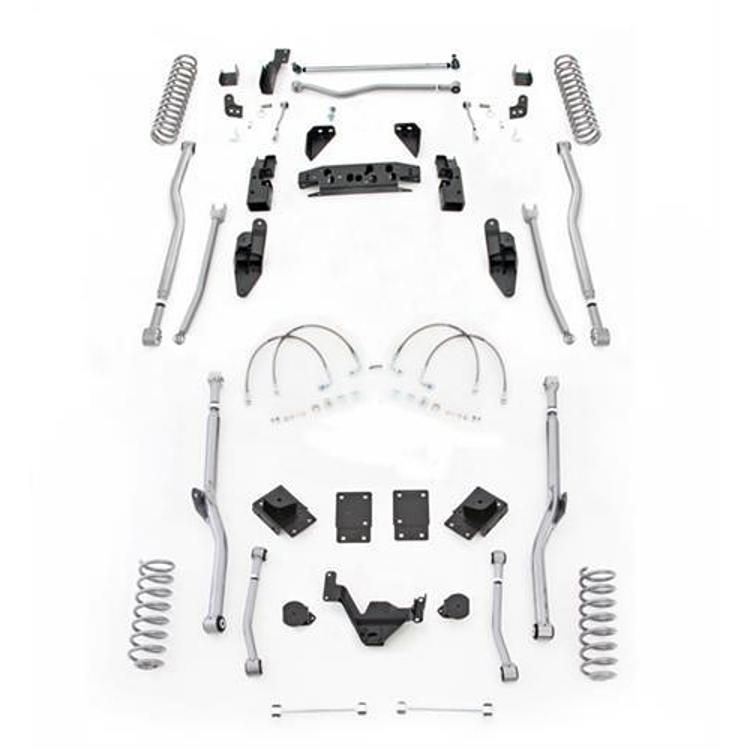

The kit includes adjustable chromoly control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings and the full-width transmission crossmember.

The radius rear is the rear lift method for this kit, and the front uses the 4-link design. Optional belly pan and CNC-machined steering knuckle upgrades are available for the system.

SKU: R/EJK4R24 Category:

Specification

Shipping weight 290.20 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK)2007–201870th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S, X

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the JK4R24 include shocks?

This version does not come with shocks, so plan for a shock set before the install. If you want Mono-Tube shocks included, the JK4R24M is the matching version with the same arms and joints.

How much lift does the JK4R24 give?

It gives 4.5 inches of lift, which falls within the 3 to 4.99-inch range. Weigh that height against your build goals before ordering.

Does this kit need welding?

No. The install needs no welding, which comes from the full-width transmission crossmember design. Plan for alignment and driveline checks afterward, since the radius rear and 4-link front change the geometry.

Which years does the JK4R24 fit?

The kit fits the 2007-2018 Jeep Wrangler (JK), so that generation is the one it is built for. Check that your year, model and trim match the fitment before you order the kit.

How often should the joints and bushings be inspected?

Inspect the spherical ball joints and PT-Meg bushings at regular service intervals and after rough trail use. Look for torn boots, looseness, clunks or uneven tire wear, and replace parts that show play. Staying ahead of wear helps the arms keep their alignment.

Do long arm kits need related parts replaced at the same time?

Often yes. Steering components, brake lines and driveline parts may need checking or replacing because the new geometry changes their operating angles. Confirm fit for your vehicle's year, model and trim before ordering the extra parts.
