Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link and Twin Tube Shocks – RE7504T

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7504T 4.5 inch Extreme-Duty long arm lift kit with rear Tri-Link and twin tube shocks
  • Listed fit: 1997–2002 Jeep Wrangler TJ
  • Chromoly long arms, Builder Ball and Super-Flex spherical ball joints
  • Twin tube shocks included; lift range 3 to 4.99 inches

Description

Overview

The Rubicon Express RE7504T is a 4.5-inch Extreme-Duty long arm lift kit with a rear Tri-Link and twin tube shocks, made for the 1997–2002 Jeep Wrangler TJ. The lift falls within the 3 to 4.99-inch range, and the shocks come with the kit.

The long arm design replaces the stock suspension arms with longer control arms, which improves geometry on a lifted vehicle. It gives a more stable, lower-roll ride than a short arm system, with better traction on the trail.

The rear Tri-Link takes the place of the track bar. Because the axle is located by the link instead of a side bar, the wheel can travel straight up and down. Rubicon Express adds that the link increases anti-squat on steep climbs and tracks better on the road.

Key features

  • Chromoly long arms built from 4130 chromoly tubing

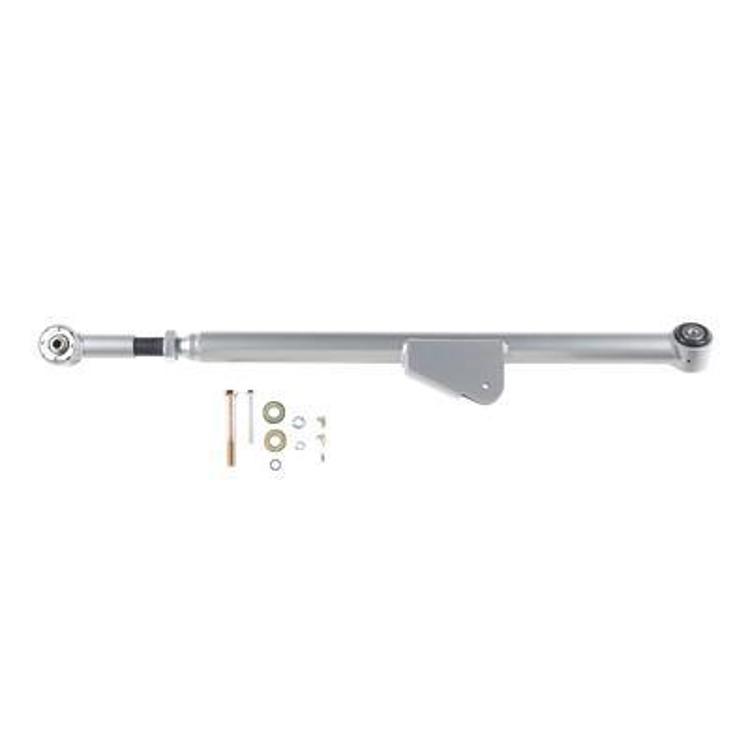

  • Rear Tri-Link that replaces the rear track bar
  • Builder Ball misalignment joint, rated by Rubicon Express for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings

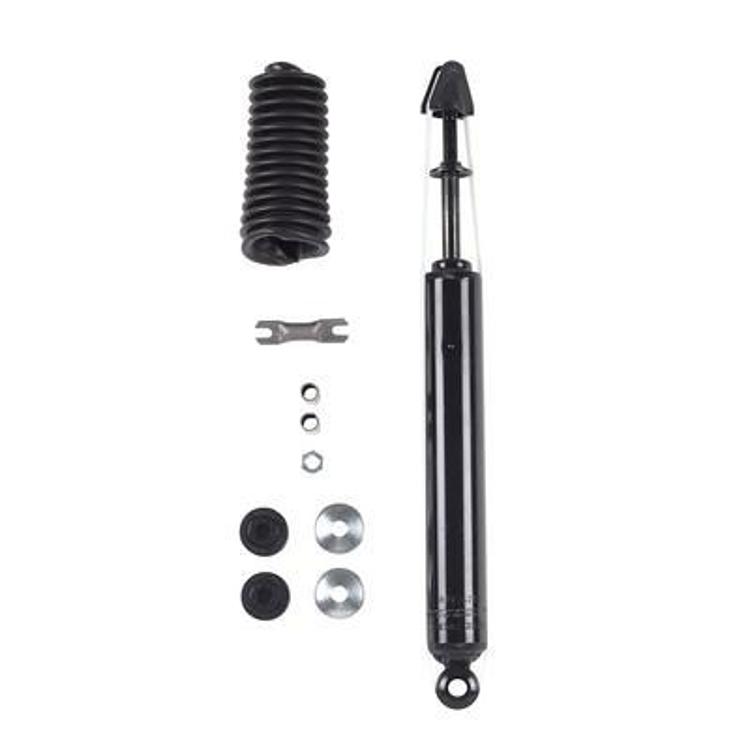

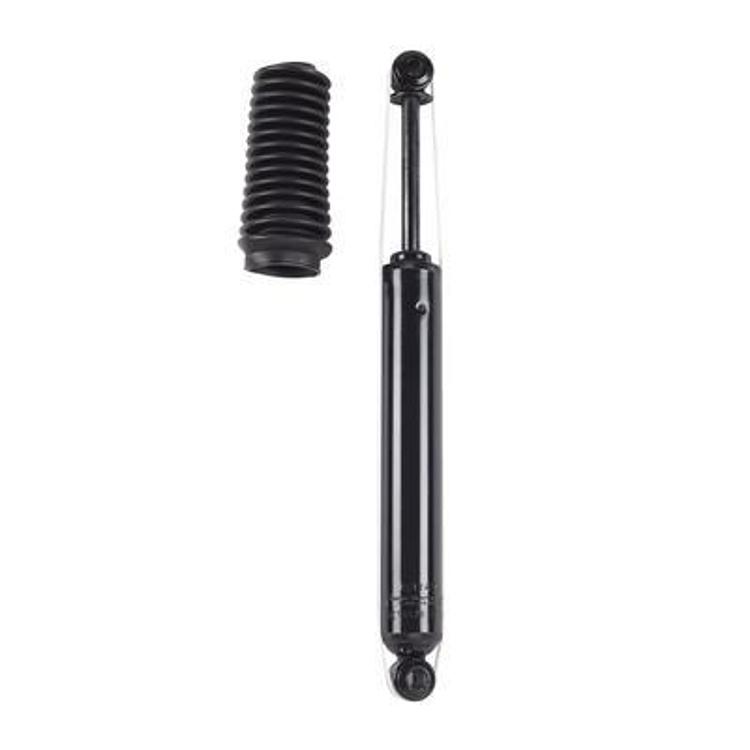

  • Twin tube shocks included
  • Tuned lift springs and stainless steel brake lines

Shocks and long arm geometry

Shocks on a long arm system work through a different range of motion, since the arms swing on a longer radius. Twin tube shocks are a common choice for daily driving on a lifted TJ and suit mixed pavement and trail use. Shock length and mounting angle should match the new arm position, so check the shock’s extension at full droop before buying replacements.

Long arm owners often replace bump stops and bushings at the same time as the shocks. Look for seepage at the shock body, a bouncing ride and loose mounts after trail runs. Tightening the mounting hardware and checking the shock eyelets during routine service keeps the suspension working as designed.

  • Check shock extension at full droop
  • Inspect shock eyelets and bushings
  • Replace shocks in pairs on each axle

Specifications

Brand Rubicon Express
Part number RE7504T
UPC 614901453232
Lift height range 3 to 4.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing

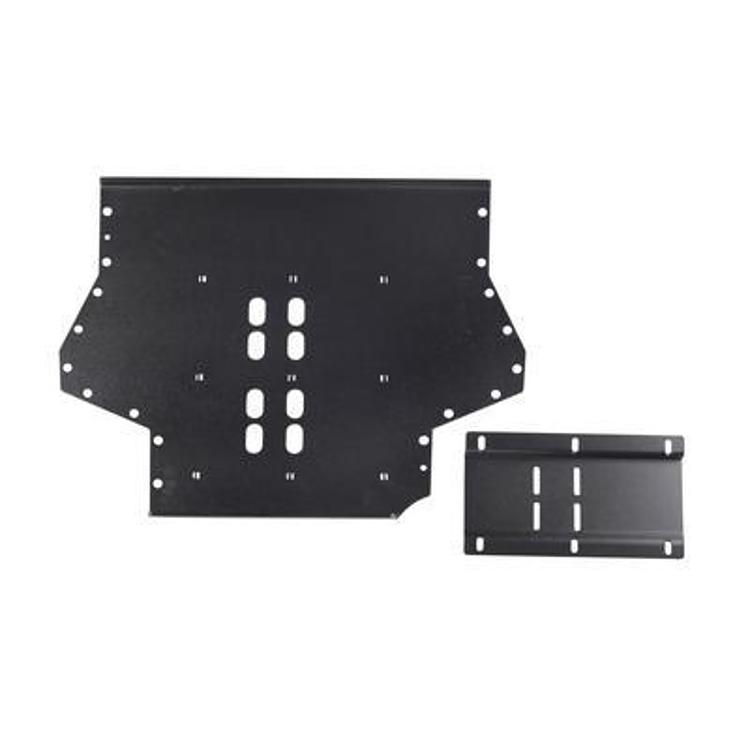

Belly pan Three-piece, for transfer case and transmission access
Shocks included Yes, twin tube
Fitment Direct fit

Vehicle fitment

It fits the 1997–2002 Jeep Wrangler (TJ), including the SE, Sahara and Sport models.

Confirm your vehicle’s year, model and trim before ordering, including whether it is a 2003–2006 TJ, JK or YJ.

Installation notes

A long arm conversion changes the alignment and driveline angles, so both need checking once the kit is installed. It is bolt-on for factory Dana 35 and Dana 44 rear axles.

What’s included

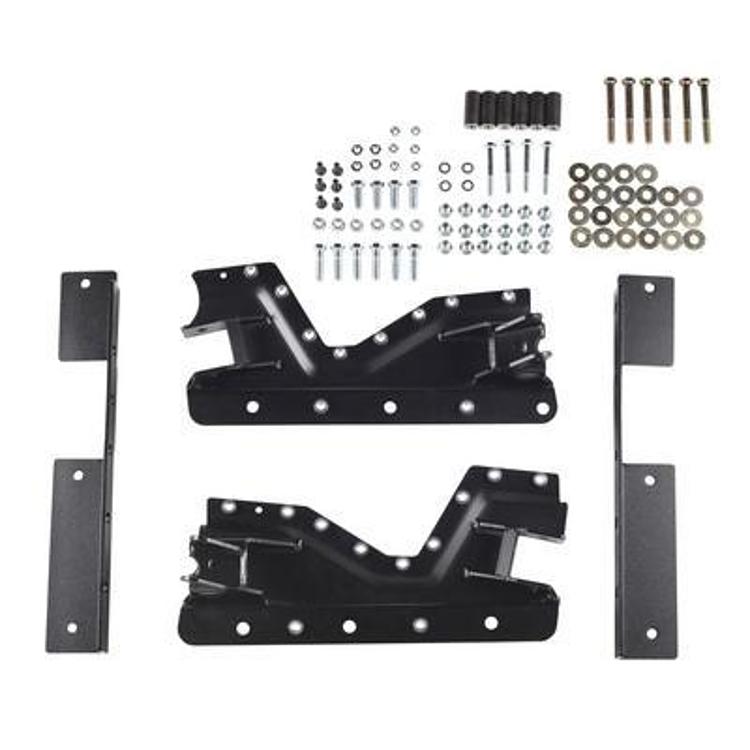

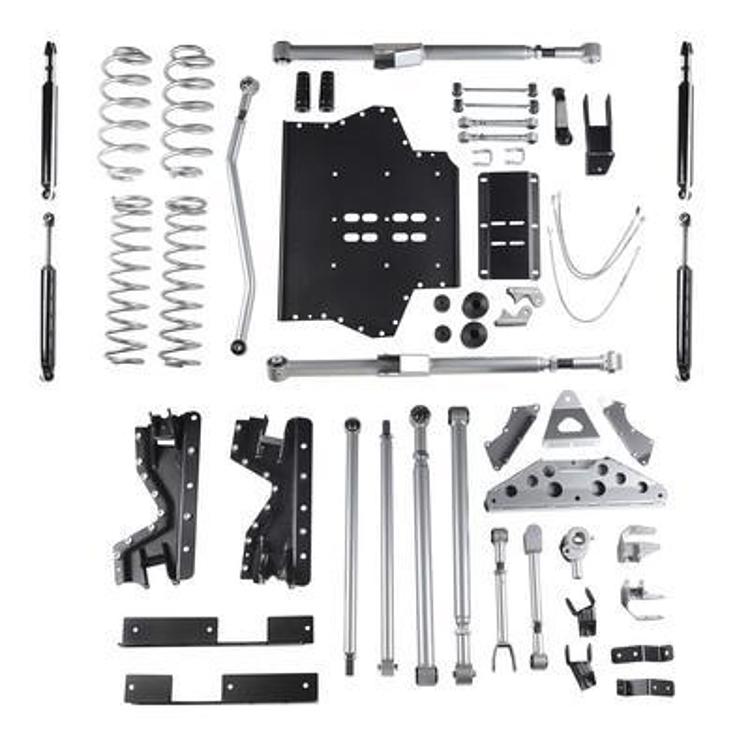

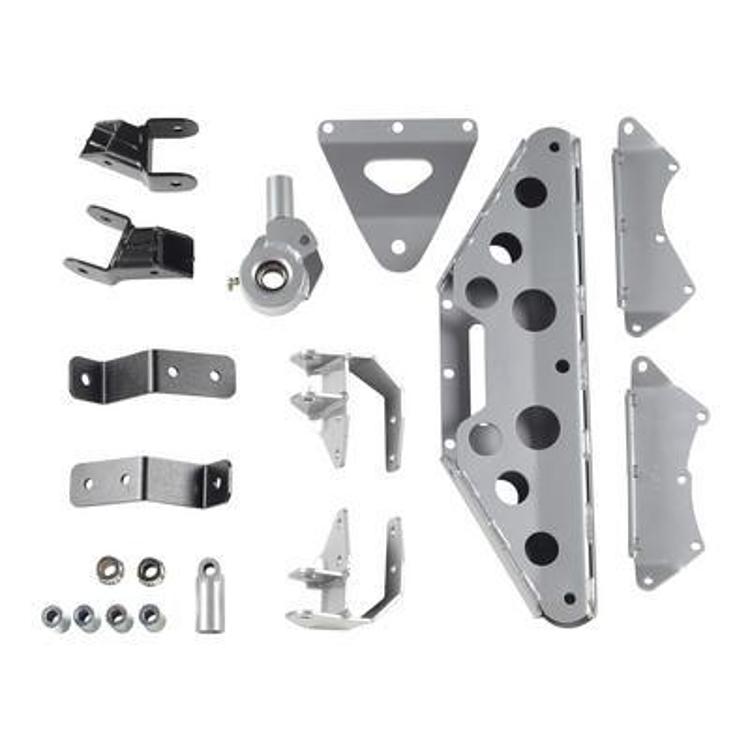

The kit includes long control arms, the rear Tri-Link, the Builder Ball, PT-Meg Super-Ride bushings, tuned lift springs, stainless steel brake lines, twin tube shocks and a three-piece belly pan.

SKU: R/ERE7504T Category:

Specification

Shipping weight 405.85 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–2002SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7504T include shocks?

Yes. Twin tube shocks are included with the kit, so the shock replacement is part of the same package as the long arms and lift springs.

Does the RE7504T fit a 2002 Jeep Wrangler TJ?

Yes, the kit fits 1997 to 2002 Jeep Wrangler TJ models, including the SE, Sahara and Sport trims. Confirm your model year and body style before ordering.

What is the Builder Ball?

The Builder Ball is a misalignment joint used with the rear Tri-Link. It allows up to 32 degrees of misalignment and has a 3 inch OD housing.

Should shocks be replaced at the same time as the arms?

Not always, but it is a good time to check them. If the existing shocks are worn or leaking, replacing them alongside the long arms keeps the ride balanced and avoids rebuilding the setup later.
