Rubicon Express 4.5 Inch Extreme Duty Radius Front/Rear 4-Link Long Arm Lift Kit with Mono-Tube Shocks – JKR444M

Rubicon Express

Shop Rubicon Express Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 4.5-inch lift with a radius front and 4-link rear long arm system
  • Includes Mono-Tube shocks
  • Adjustable chromoly upper and lower control arms with Super-Flex ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • No model years listed; confirm fitment before ordering

Description

Overview

The Rubicon Express JKR444M is a 4.5-inch lift kit with a radius front and 4-link rear long arm suspension, offered in Rubicon Express’s JK suspension line. It includes Mono-Tube shocks, which makes it the shock-equipped version of the JKR424M, the model that comes without shocks. The core of the system is adjustable chromoly upper and lower control arms with Super-Flex spherical ball joints and PT-Meg Super-Ride bushings.

The radius and 4-link layout keeps the wheels free to articulate on uneven terrain. The full-width transmission crossmember adds rigidity, and the system installs without welding. Optional belly pan and steering knuckle upgrades are available separately. Confirm fit against your vehicle’s year, model and trim before ordering.

Key features

  • 4.5-inch lift height in the 3 to 4.99-inch range on the chart
  • Radius front and 4-link rear long arm system
  • Mono-Tube shocks
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Optional belly pan and CNC-machined steering knuckle

Choosing the right setup

A radius front and 4-link rear arrangement divides the control duties between the two ends, so each axle location is handled by its own set of arms. Radius arms carry braking and acceleration loads into the frame, which makes the frame brackets and their bolts worth a check after the first drive. Mono-Tube shocks use a single tube design that helps dissipate heat during sustained use, which matters on long descents.

When comparing kits at this height, look at how the front and rear ends work together rather than only the lift number. Check steering clearance, brake hose length and driveshaft angles against your planned tire size. Radius arm bushings and ball joints wear over time, so inspect them at regular service intervals and replace any with play or torn boots.

  • Check frame bracket bolts after the first few trail runs
  • Look for play in the radius arm bushings
  • Recheck steering geometry after alignment

Specifications

Brand Rubicon Express
Part number JKR444M
UPC 70000651282
System type Extreme-duty radius front and 4-link rear long arm lift
Lift height 4.5 inches (manufacturer range 3 to 4.99 inches)
Front arm type Radius arm or radius arm brackets
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Shocks Mono-Tube
Made in USA

Vehicle fitment

This kit is part of the JK suspension line. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A radius and 4-link layout changes pinion angle and axle location, so the driveline angles and alignment need to be checked after the lift is installed. Because the radius arms sit on the front end, the steering geometry should also be verified once the work is finished.

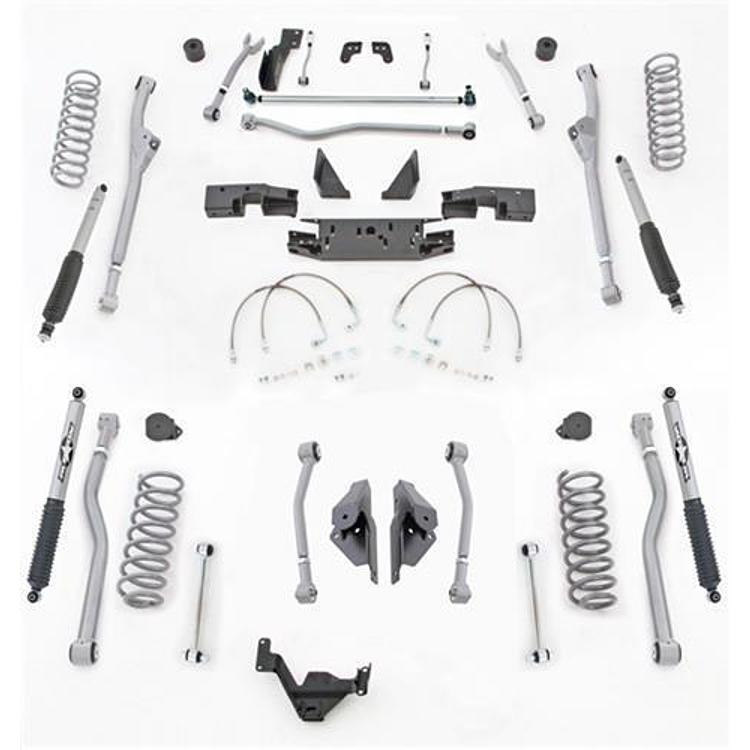

What’s included

The kit includes radius front and 4-link rear long arm parts, adjustable chromoly upper and lower control arms, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings, the full-width transmission crossmember and Mono-Tube shocks.

SKU: R/EJKR444M Category:

Specification

Shipping weight 314.10 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the JKR444M include shocks?

Yes. The kit includes Mono-Tube shocks, which separates this version from the JKR424M, the model that comes without shocks. The shock package is part of the kit, so no separate purchase is needed for the shocks themselves.

What arm layout does this lift use?

It uses a radius front and a 4-link rear. The radius arms run from the axle to a frame bracket and handle fore and aft movement, while the 4-link controls the rear axle's position under the vehicle.

Does the JKR444M require welding?

No, welding is not needed for installation. The full-width transmission crossmember is part of the design, and the chromoly control arms can be adjusted during the job.

Which Jeeps does the JKR444M fit?

It is part of the JK suspension line. Confirm your vehicle's year, model and trim before ordering, since fitment by model year and chassis code should be verified before buying the parts.

How often should the radius arm bushings be inspected?

Inspect them at regular service intervals and after hard off-road use. Look for cracked rubber, movement at the frame bracket or clunking over bumps. Replace worn parts before they affect alignment or steering.

Do Mono-Tube shocks need a different mounting setup?

Mount them with the correct eye orientation and clearance for the arms and tire at full compression. A shock length suited to the new ride height prevents bottoming, and the bushings at each end should be checked for wear.
