Overview
The Rubicon Express RE7133E is a 2.5-inch spacer lift for the Jeep JK. It levels the factory rake and lifts the vehicle enough to run 35-inch tires. A 2.5 coil spacer goes in the front and a 1 coil spacer in the rear, so the front-to-rear height is adjusted together. The kit comes without shocks, and shock extensions are the option for keeping factory shocks.
The kit adds brake line, bump stop and sway bar link extensions along with a new rear track bar bracket. It increases ground clearance and off-road capability. Because shocks are not part of the kit, the shock setup is a separate choice made before the job starts. It fits the Jeep JK.
Key features
- 2.5-inch lift height
- 2.5 coil spacer in the front and 1 coil spacer in the rear
- Bump stops
- Rear sway bar links and extensions
- Rear track bar bracket
- Shock extensions for use with factory shocks
- Clears 35-inch tires
Spacer lifts and shock setup
A spacer lift keeps the factory coil springs and adds height above them, which is a simpler job than swapping springs. The main decision is the shock setup, because a higher ride can change how a shock extends and compresses. Shock extensions suit owners who want to keep factory shocks, while new shocks give more control over how the vehicle rides at the new height.
Spacers also change the angles of the driveline and the sway bar links, so watch for binding or rubbing once the lift is in place. Inspect the bump stop extensions and brake line extensions for chafing, and recheck the bolts after the first few drives. Keeping the rear track bar bracket square to the axle makes the setup easier to check. A wheel alignment helps tire wear stay even on a leveled setup.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7133E |
| UPC | 70000662228 |
| Kit type | Economy spacer lift |
| Lift height | 2.5 inches |
| Front spacer | 2.5 coil spacer |
| Rear spacer | 1 coil spacer |
| Shocks | Not included; shock extensions available for factory shocks |
Vehicle fitment
It covers the 2007-2018 Jeep Wrangler (JK).
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The spacers are added at the coil springs, and the shocks must be chosen before the job starts: either new Rubicon Express shocks or the shock extensions that work with the factory shocks. The alignment should be checked after the lift is in.
What’s included

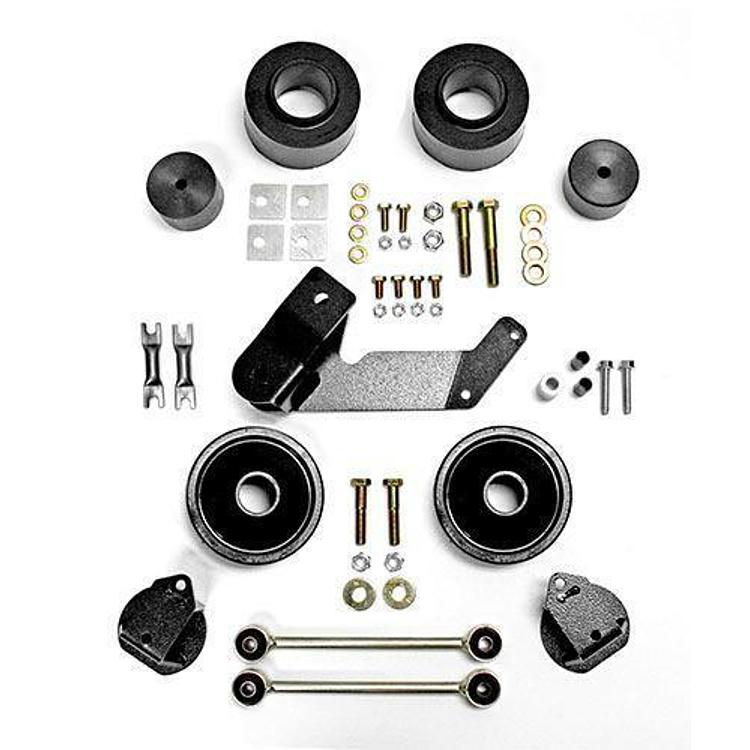

The kit includes coil spacers, brake line extensions, bump stop extensions, sway bar link extensions and a rear track bar bracket.
Not included: shock absorbers. Shock extensions are offered as an option for the factory shocks.
The spacers sit on the factory coil springs, so the kit is a spacer design rather than a spring replacement. The rear track bar bracket and sway bar link extensions are the other suspension pieces in the kit, and the brake line extensions and bump stop extensions carry the lift through the rest of the system.
