Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link and Twin Tube Shocks – RE7514T

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7514T 4.5 inch Extreme-Duty long arm lift kit with rear Tri-Link and twin tube shocks
  • Listed fit: 2003–2006 Jeep Wrangler TJ
  • Chromoly long arms, Builder Ball and tuned lift springs
  • Twin tube shocks included; lift range 3 to 4.99 inches

Description

Overview

The Rubicon Express RE7514T is a 4.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link and twin tube shocks for the 2003–2006 Jeep Wrangler TJ. The lift height range is 3 to 4.99 inches, and the shocks are included.

The long arm conversion swaps the stock arms for longer control arms. On a lifted TJ this geometry adds stability, reduces torque roll and improves trail traction compared with a standard short arm lift.

The Tri-Link replaces the rear track bar so the axle can move up and down freely, and it adds anti-squat for steep climbs. The kit also uses the Builder Ball, which Rubicon Express describes as its newest misalignment joint.

Key features

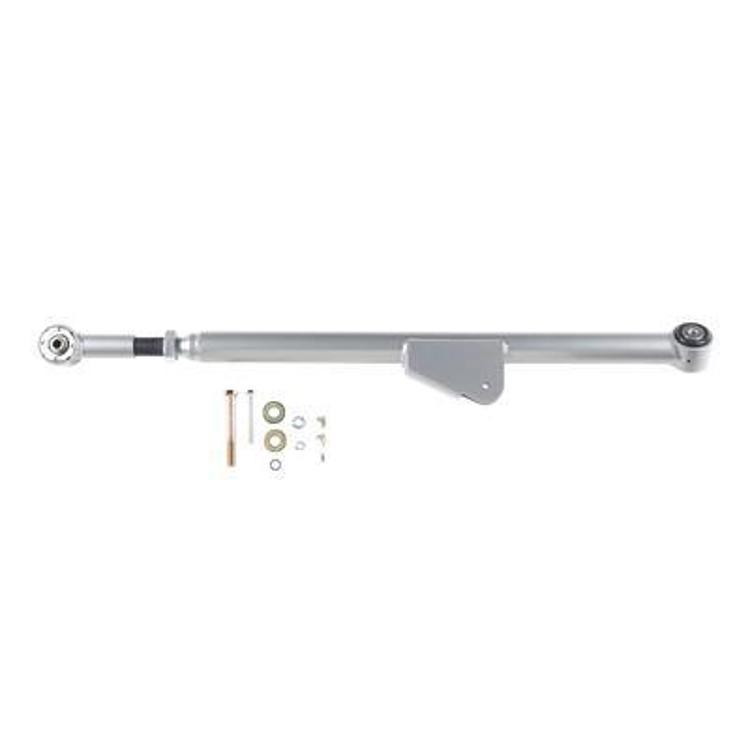

  • Chromoly long arms built from 4130 chromoly tubing
  • Rear Tri-Link that replaces the rear track bar
  • Builder Ball misalignment joint, rated by Rubicon Express for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Twin tube shocks included
  • Tuned lift springs and PT-Meg Super-Ride bushings
  • Stainless steel brake lines

Choosing a long arm setup

Long arm kits move the control arm pivots outward, so the axle keeps a steadier arc through its travel. That matters most on a lifted Wrangler that sees rock ledges, ruts and washouts, where the arms take hard hits and the axle needs room to articulate. Think about how you use the Jeep before buying: highway-heavy driving favors steady tracking, while frequent rock crawling puts more load on the joints and mounts.

Because the rear Tri-Link takes the place of the track bar, review any steering or axle components that relied on the old bar before the install. Inspect control arm bushings and ball joints after hard days on the trail, and replace any joint that shows play, cracking or a torn boot. Plan a driveshaft check at the same visit.

  • Check bushing condition at each oil change
  • Re-torque bolts after the first trail runs

Specifications

Brand Rubicon Express
Part number RE7514T
UPC 614901453249
Lift height range 3 to 4.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing

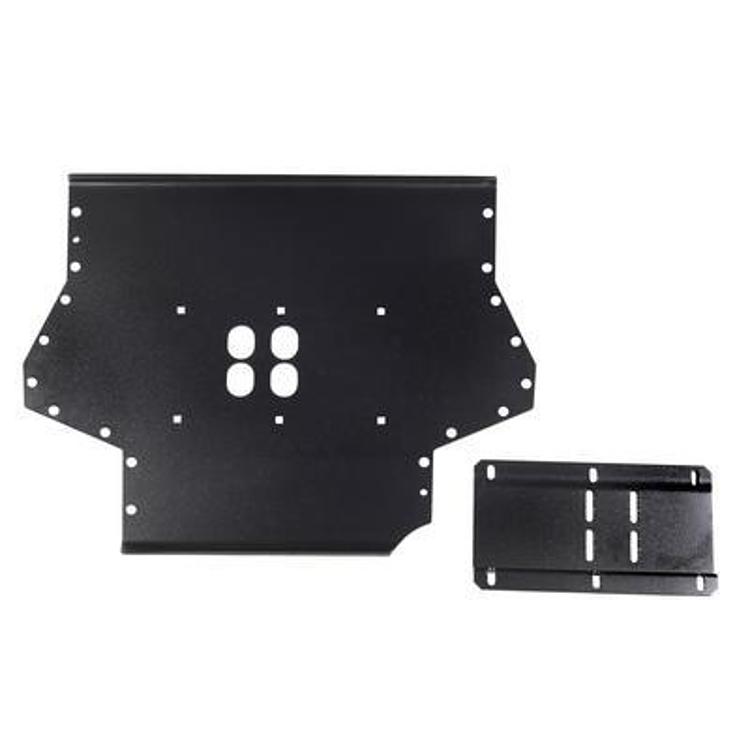

Belly pan Three-piece, for transfer case and transmission access
Shocks included Yes, twin tube
Fitment Direct fit

Vehicle fitment

It fits the 2003–2006 Jeep Wrangler (TJ), including the 65th Anniversary Edition, Rubicon, SE, Sahara and Sport models.

Fit covers 2003–2006 TJ models only. Check model year and trim against your vehicle before buying.

Installation notes

A long arm conversion changes alignment and driveline angles, so both should be checked after installation. The kit bolts on to factory Dana 35 and Dana 44 rear axles.

What’s included

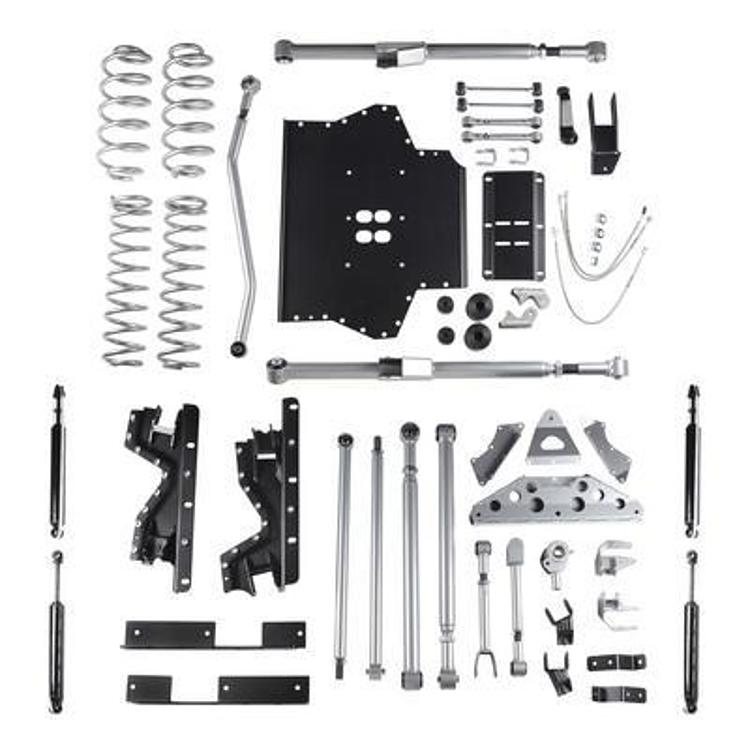

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, twin tube shocks, tuned lift springs, PT-Meg Super-Ride bushings and stainless steel brake lines.

SKU: R/ERE7514T Category:

Specification

Shipping weight 423.45 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)2003–200665th Anniversary Edition, Rubicon, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7514T include shocks?

Yes. Twin tube shocks are included with the long arm kit, so the shock replacement is part of the same package as the control arms and lift springs.

Does the RE7514T fit a 2006 Jeep Wrangler TJ?

Yes. It fits 2003 to 2006 Wrangler TJ models, including Rubicon, Sahara and Sport trims. Match the trim and body style to your vehicle before ordering.

What is the lift height on the RE7514T?

The listed lift height range is 3 to 4.99 inches, and the product name gives 4.5 inch. The kit is an Extreme-Duty long arm system with a Tri-Link rear.

How often should long arm joints be inspected?

Inspect them at every oil change and after hard trail days. Look for torn boots, grease leaks, play when the axle is lifted and cracked bushings. Replace worn parts promptly to keep alignment stable.
