Overview

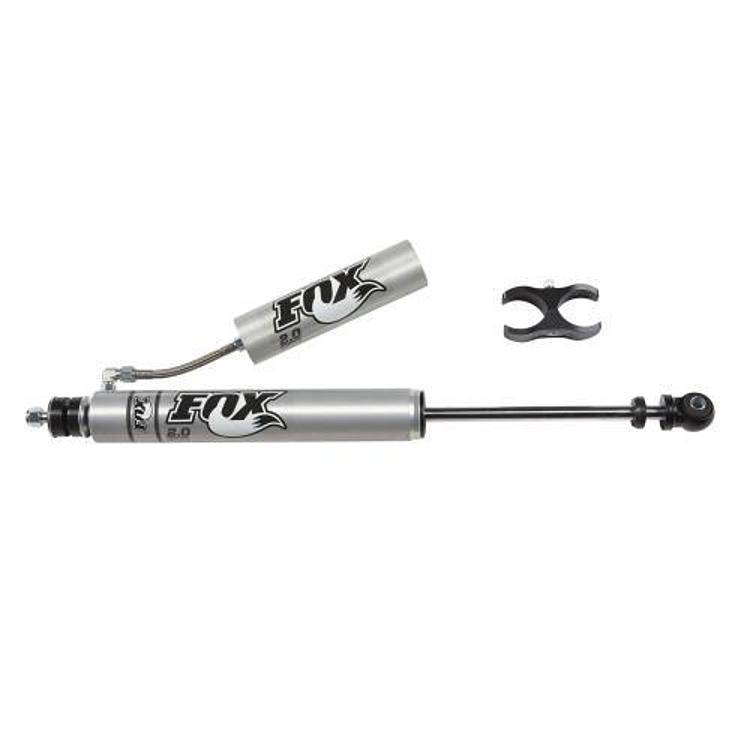

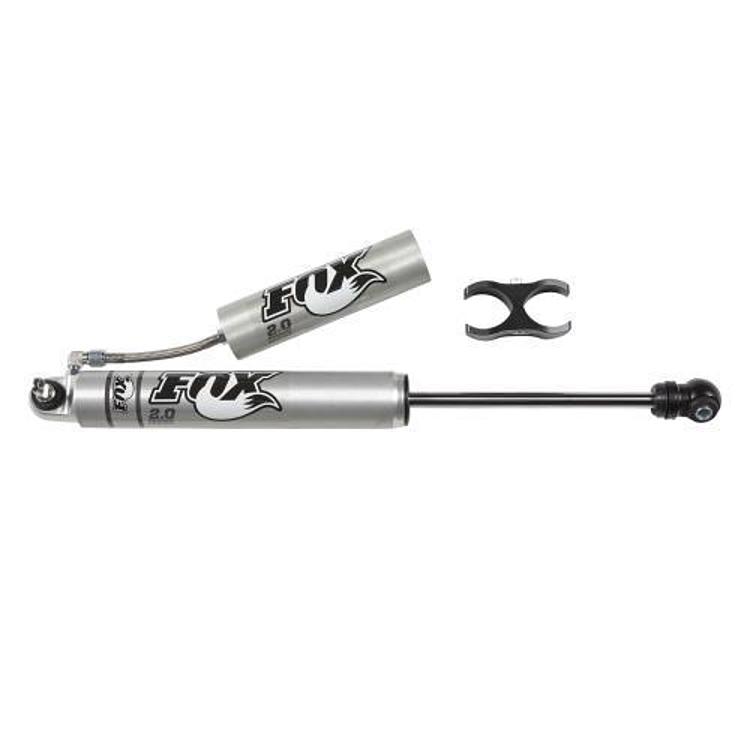

The Rubicon Express RE7125FPR is a 3.5 inch sport lift kit for 2-door Jeep Wrangler JK models, supplied with Fox Performance Resi shocks.
The kit includes a new high steer kit and control arm geometry correction brackets. Rear cam bolts allow pinion adjustment, and the package adds extended sway bar end links and bump stops.
The Fox Performance Resi shocks fall under the FOX warranty rather than the Rubicon Express Advantage Warranty. The kit is made in the USA.
Key features
- Fox Performance Resi shocks included
- New high steer kit
- Control arm geometry correction brackets
- Rear cam bolts for pinion adjustment
- Bump stops and rear track bar bracket
- Extended sway bar end links
- 3.5 inch front and rear replacement coil springs
- Upgrade path to the Super-Flex system
Steering geometry after lifting
A sport lift changes the angles that steering and driveline depend on, so the steering side deserves attention along with the springs. A high steer kit and geometry correction brackets are designed to keep the steering linkage in a sensible range, which supports straighter tracking.
Rear cam bolts control pinion angle, and that angle should be checked after installation with a digital angle finder. A pinion set at the wrong angle can cause driveline vibration and early U-joint wear, which often shows up as buzzing at highway speed. Adjust in small steps and recheck after each change.
Tie rod ends and drag link joints should be inspected at every service after the lift. Look for play, torn boots and uneven tire wear on the front tires, and replace worn parts before they affect steering control. Keep the steering stabilizer mounted cleanly so it moves freely through full travel.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7125FPR |
| Body style | 2-door models |
| Lift height range | 2.5 to 3.5 inches, sold as a 3.5 inch kit |
| Shocks | Fox Performance Resi, included |
| Springs | 3.5 inch front and rear replacement coil springs |
| Steering | New high steer kit |
| Control arms | Geometry correction brackets |
| Pinion adjustment | Rear cam bolts |
| Made in | USA |
| Warranty | FOX warranty on the shocks |
Vehicle fitment
It fits 2-door Jeep Wrangler JK models in the 2007–2018 range, which covers the most popular JK suspension systems.
The JL, the Gladiator, and the older TJ and LJ Wrangler are outside this fitment. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Newer trucks from 2012 onward may need an exhaust modification or a front drive shaft. Have the alignment and pinion angle checked after installation, since the brackets and cam bolts change those settings.
What’s included
A new high steer kit, control arm geometry correction brackets, rear cam bolts, bump stops, a rear track bar bracket, extended sway bar end links, 3.5 inch replacement coil springs and Fox Performance Resi shocks.
