Rubicon Express 3.5 Inch Progressive Coil Extreme Duty 4-Link Long Arm Lift Kit – JK4443P

Rubicon Express

Shop Rubicon Express Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch lift using progressive coil springs and a 4-link long arm system
  • Chromoly upper and lower control arms, adjustable, with Super-Flex ball joints
  • PT-Meg Super-Ride bushings and a full-width transmission crossmember
  • Designed to install without welding
  • Shocks not included; confirm fit before ordering

Description

Overview

The Rubicon Express JK4443P is a 3.5-inch lift kit that pairs progressive coil springs with a 4-link long arm suspension. It sits in Rubicon Express’s JK suspension range and uses adjustable chromoly control arms, Super-Flex spherical ball joints and PT-Meg Super-Ride bushings to control wheel travel and keep articulation available off-road.

The kit’s full-width transmission crossmember adds frame rigidity and simplifies installation. The system installs without welding. Shock absorbers are not part of this package, and optional belly pan and steering knuckle upgrades are sold separately. Confirm fit for your vehicle’s year, model and trim before ordering.

Key features

  • 3.5-inch lift height, within the 3 to 4.99-inch range on the chart
  • 4-link long arm system with a progressive coil rear lift component
  • Adjustable chromoly upper and lower control arms
  • Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings
  • Full-width transmission crossmember
  • Designed for installation without welding

Before you buy

A long arm lift changes how the axles and control arms sit under the vehicle, so it is worth thinking about the whole setup before ordering. Lift height changes the driveline angles, and the pinion angle often needs attention once the arms are in. Shock absorbers are not included with this kit, so plan that purchase alongside the arms and coils. Choose shocks with length and travel that suit the new ride height, and check that the brake lines and steering components have room at full articulation.

Progressive coil springs ride differently from linear coils, firming up as they compress, which can suit mixed road and trail use. Super-Flex spherical joints and PT-Meg bushings are often replaced together during a long arm job when the old parts show wear. Look for cracked boots, play in the joints or squeaking bushings during periodic inspection, and recheck bolt torque after the first few trail runs.

  • Measure shock length before ordering
  • Check steering clearance at full lock
  • Recheck driveline angles after alignment

Specifications

Brand Rubicon Express
Part number JK4443P
UPC 700008140181
System type Extreme-duty 4-link long arm
Lift height 3.5 inches (manufacturer range 3 to 4.99 inches)
Spring type Progressive coil
Control arms Chromoly upper and lower, adjustable
Joints Super-Flex spherical ball joints
Bushings PT-Meg Super-Ride
Transmission crossmember Full width
Shocks Not included

Vehicle fitment

It is part of the JK suspension range. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A long arm conversion changes control arm angles and the pinion angle, so the alignment and driveline angles should be checked once the lift is in. Plan to reuse or replace the shocks separately, since the kit does not include them.

What’s included

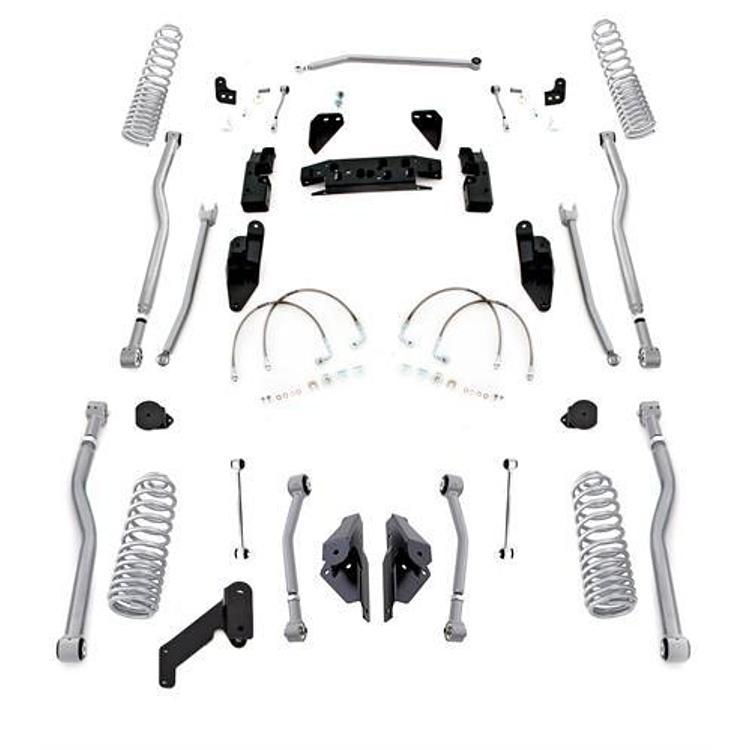

The kit includes adjustable chromoly upper and lower control arms, progressive coil springs, Super-Flex spherical ball joints, PT-Meg Super-Ride bushings and a full-width transmission crossmember.

Not included: shock absorbers. The belly pan and steering knuckle are optional upgrades.

SKU: R/EJK4443P Category:

Specification

Shipping weight 246.15 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Questions & Answers

Does the JK4443P come with shock absorbers?

No. The fitment details list shocks as not included, so the current shocks can be kept or a set chosen that suits the new 3.5-inch height. The progressive coils and control arm set are the parts this kit supplies.

How much lift does the JK4443P give?

It gives 3.5 inches of lift, within the 3 to 4.99-inch range, with progressive coil springs as the rear lift component.

Is welding needed to install the JK4443P?

No, welding is not needed. The full-width transmission crossmember helps simplify the install, and the arm set bolts into the vehicle's existing mounting points.

Will the JK4443P fit my Jeep?

Confirm fit for your vehicle's year, model and trim before ordering. Fitment by model year and chassis code should be verified before buying the parts.

Do the control arm joints need regular greasing?

Check the joints and bushings on a regular schedule. Spherical ball joints with a grease fitting should be greased at the joint's service interval, and worn boots or sloppy play mean they should be replaced.

Will a long arm kit need a driveline or pinion angle fix?

Often yes, depending on the lift and driveline setup. A long arm conversion changes pinion angle, so measure the driveline angles after installation and correct any vibration with the right driveline work.
