Overview
The Rubicon Express JKRR23FP is a 3.5 inch extreme duty radius long arm lift kit for the Jeep Wrangler JK. The radius long arm system uses chromoly upper and lower control arms that are adjustable.
Super-Flex spherical ball joints and Super-Ride bushings make up the joints, and a full width transmission crossmember is included. Installation requires no welding, and the kit is built for on and off-road use.

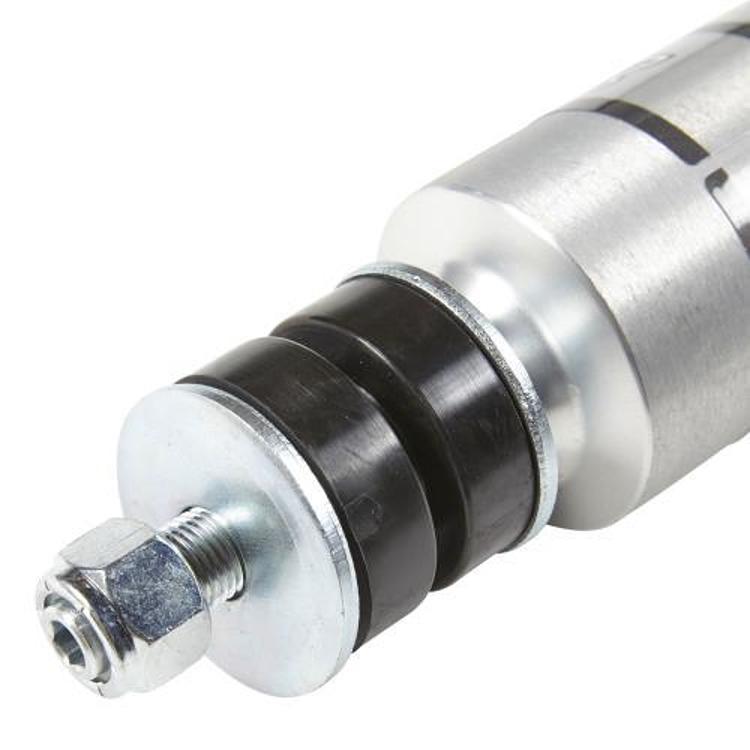

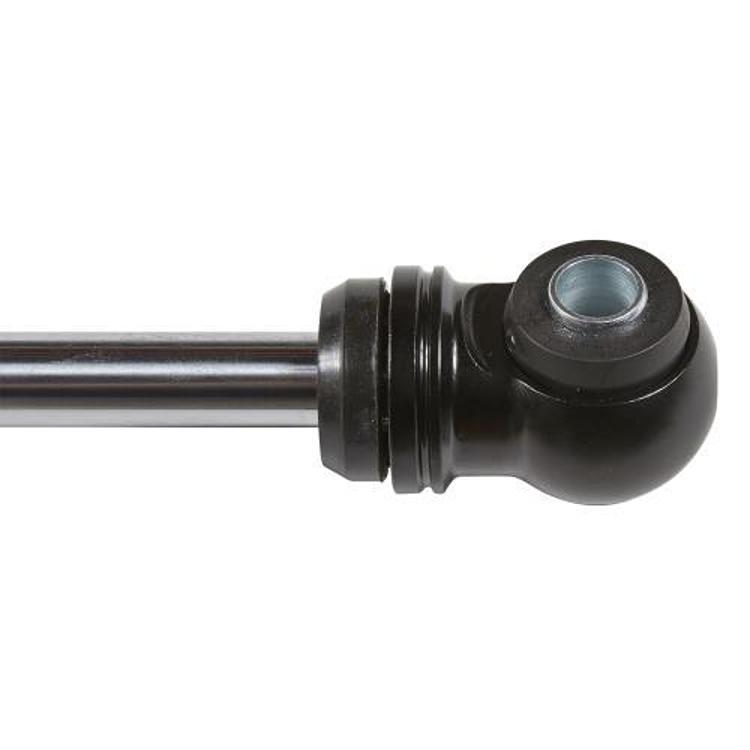

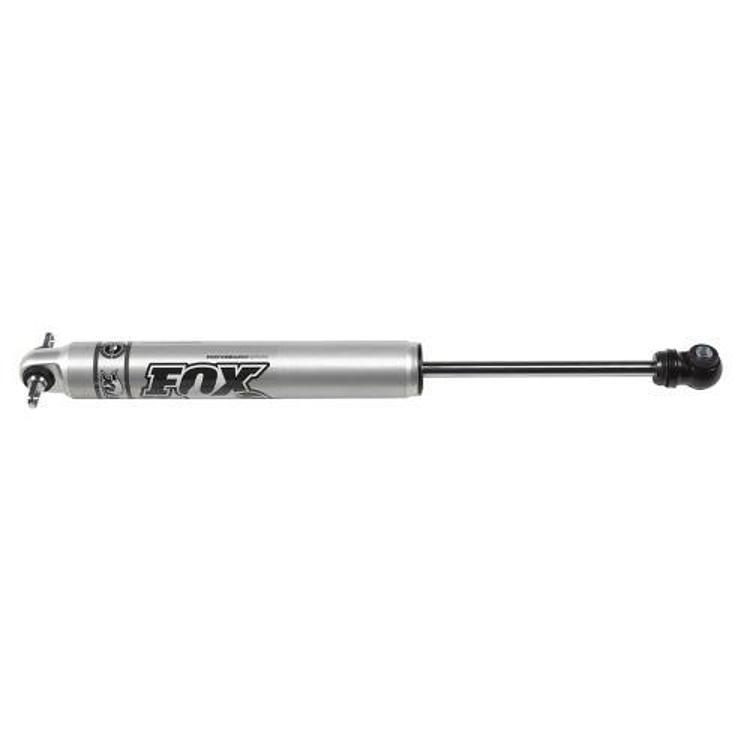

Front and rear Fox Performance shocks are included. The FOX Performance Series shocks are covered by the FOX warranty and do not qualify for the Rubicon Express Advantage Warranty.
Key features
- Radius long arm system
- Chromoly upper and lower control arms
- Adjustable control arms
- Super-Flex spherical ball joints
- Super-Ride bushings
- Front and rear Fox Performance shocks
- Full width transmission crossmember
- No welding, for on and off-road use
Radius arms and articulation
A radius arm suspension moves the axle through a fixed arc, so the arms take side and braking loads through their mounts. Over time the bushings and spherical joints settle and develop play, which shows up as wander on the highway or a clunk when the vehicle shifts between drive and reverse. Regular checks on the joints and bushings catch that wear before it reaches the frame.
On a radius setup, the arm angles and the axle position work together, so a worn joint can shift alignment and change tire wear. Check for uneven wear after changes, and keep the joints greased if they have grease fittings. Shock mounts and the crossmember should be looked at during the same inspection, since they share the load.
- Check joint boots for tears after mud runs
- Listen for clunks during slow turns
- Recheck alignment after joint replacement
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | JKRR23FP |
| Lift height | 3.5 inch |
| Lift height range | 2.5 to 3.5 inches |
| Suspension type | Extreme duty radius long arm |
| Control arm material | Chromoly |
| Ball joints | Super-Flex spherical |
| Bushings | Super-Ride |
| Shocks | Fox Performance, front and rear |
| Crossmember | Full width transmission |
| Welding | None required |
| Use | On and off-road |
| Warranty | FOX warranty on the shocks |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK). Make sure year, model and trim match your vehicle before you order.
Not covered: the JL, the Gladiator, and the TJ and LJ Wrangler generations. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Trucks from 2012 onward may need an exhaust modification or a front drive shaft. Radius long arm kits change axle location and driveline angles, so have both checked after the install.
What’s included

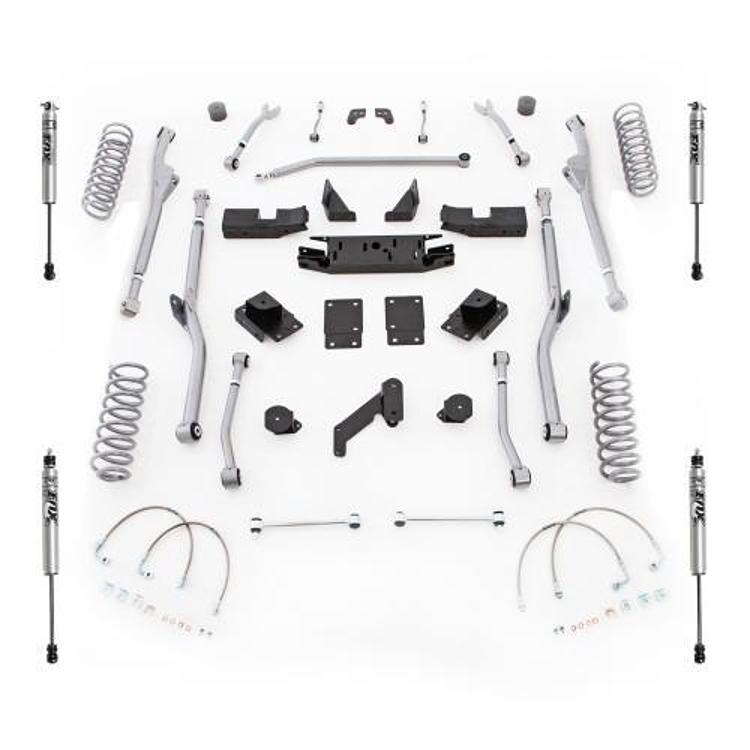

Chromoly radius long arm components, adjustable upper and lower control arms, Super-Flex spherical ball joints, Super-Ride bushings, a full width transmission crossmember and front and rear Fox Performance shocks.
