Rubicon Express 4.5 Inch Extreme-Duty Leaf Spring Lift Kit with Mono Tube Shocks – RE5520M

Rubicon Express

Shop Jeep Wrangler YJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

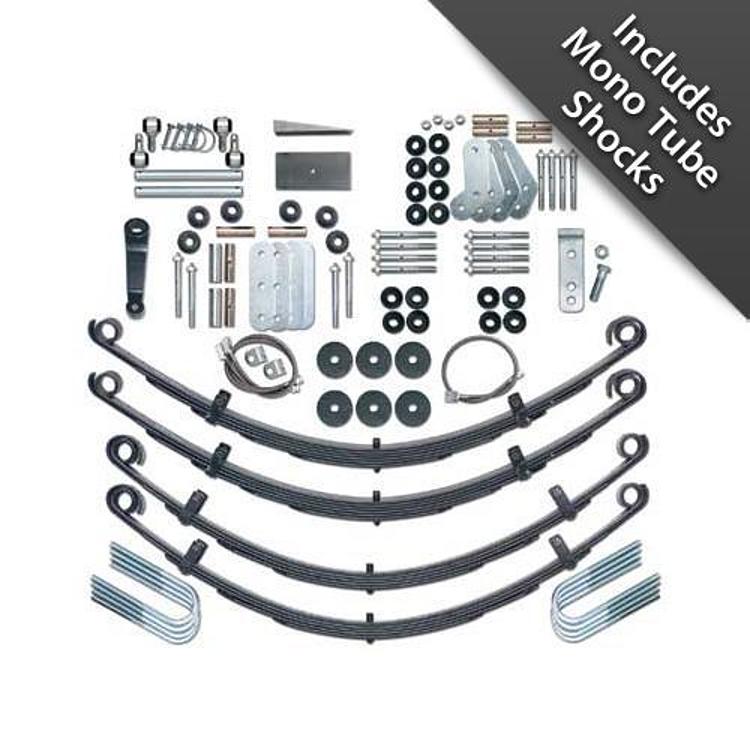

  • 4.5-inch Extreme-Duty leaf spring lift kit with mono tube shocks, for 1987–1995 Jeep Wrangler YJ
  • Greaseable shackles and main eye bushings
  • Sway bar disconnects, drop Pitman arm, stainless steel brake lines
  • Part number RE5520M, rated for 33-inch tires

Description

Overview

The Rubicon Express RE5520M is a 4.5-inch Extreme-Duty leaf spring lift kit with mono tube shocks for the 1987–1995 Jeep Wrangler YJ. It is meant for owners who want a clear gain in ground and tire clearance along with more suspension flexibility. The kit is rated for a 3 to 4.99-inch lift range.

The Extreme-Duty leaf springs are built to be durable and flexible, with good ride quality. Greaseable shackles and main eye bushings are included, along with stainless steel brake lines, sway bar disconnects and a drop Pitman arm. The system keeps the classic YJ ride while allowing 33-inch tires, and a 1-inch body lift allows 35-inch tires.

Mono tube shocks are the shock option for this kit. The 4.5-inch system keeps the classic YJ ride characteristics as tire size increases. Running 33-inch tires requires the SYE and CV driveshaft work.

Key features

  • Extreme-Duty leaf springs
  • Mono tube shocks included
  • Greaseable shackles and main eye bushings
  • Stainless steel brake lines
  • Sway bar disconnects and drop Pitman arm

Mono tube shock tradeoffs

Mono tube shocks use a single tube with a piston and gas section, which many drivers choose for steady damping on lifted leaf spring vehicles. They tend to hold up well to heat during longer trail runs. Their damping feel differs from twin tube designs, so the choice should follow how the vehicle is driven most often.

When a lift and larger tires are involved, check shock length, extension and mounting angle before ordering. Bushings at both ends should be inspected for wear, and any leak or noise is a reason to replace the shock. Pairing new shocks with fresh bushings and a proper alignment gives the most consistent results.

Driveline work and tire size also affect how the shocks feel, so review those together.

Specifications

Brand Rubicon Express
Part number RE5520M
Suspension type Extreme-Duty leaf spring
Lift height range 3 to 4.99 inches
Shocks Mono tube, included
Rear lift method Leaf springs
UPC 614901452600
Fitment type Direct fit

Vehicle fitment

It is a direct fit for the 1987–1995 Jeep Wrangler (YJ) in Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara and Sport trims.

Wrangler TJ, LJ and JK models are not on this list. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Fitting a SYE and CV driveshaft is a required step with this kit.

SKU: R/ERE5520M Category:

Specification

Shipping weight 222.30 lbs
Package dimensions 48.00 × 6.00 × 6.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (YJ)1987–1995Base, Islander, Laredo, Renegade, Rio Grande, S, SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE5520M include shocks?

Yes. The kit includes mono tube shocks. The rest of the package is Extreme-Duty leaf springs, greaseable shackles and stainless steel brake lines.

Will the RE5520M fit a 1988 Jeep Wrangler YJ?

Yes. It is a direct fit for the 1987–1995 Jeep Wrangler YJ, so a 1988 YJ falls within those years. Confirm fit for your vehicle's trim before ordering.

What tire size does the RE5520M allow?

It allows 33-inch tires. A 1-inch body lift allows 35-inch tires, and a SYE and CV driveshaft is required with the kit. Plan the driveshaft before the install.

Can mono tube shocks be used with a stock suspension?

Shock choice depends on your setup. Mono tube shocks are commonly used on lifted leaf spring vehicles where heat control and consistent damping matter. Check shock length and mounting points for your lift before ordering, and inspect them with each tire change.
