Rubicon Express 3.5 Inch Extreme Duty Radius

Rubicon Express

Shop Jeep Wrangler JK Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5 inch radius long arm suspension for the Jeep Wrangler JK, with front and rear 4-link radius arms
  • Chromoly upper and lower control arms with adjustable control arms and super-flex spherical ball joints
  • Front and rear Fox Performance shocks included
  • Full width transmission crossmember; no welding required

Description

Overview

The Rubicon Express 3.5 Inch Extreme Duty Radius is a 3.5 inch lift kit with a 4-link front and rear radius long arm suspension for the Jeep Wrangler JK. It is offered with Fox Performance shocks and is designed for owners who want a long arm setup with Fox shock damping.

The kit uses chromoly upper and lower control arms with adjustable arms, super-flex spherical ball joints and PT-MEG super-ride bushings. A full width transmission crossmember is included, and no welding is needed for installation.

Key features

  • 3.5 inch lift height
  • 4-link front and rear radius long arm system
  • Chromoly upper and lower control arms
  • Adjustable control arms
  • Super-flex spherical ball joints
  • PT-MEG super-ride bushings

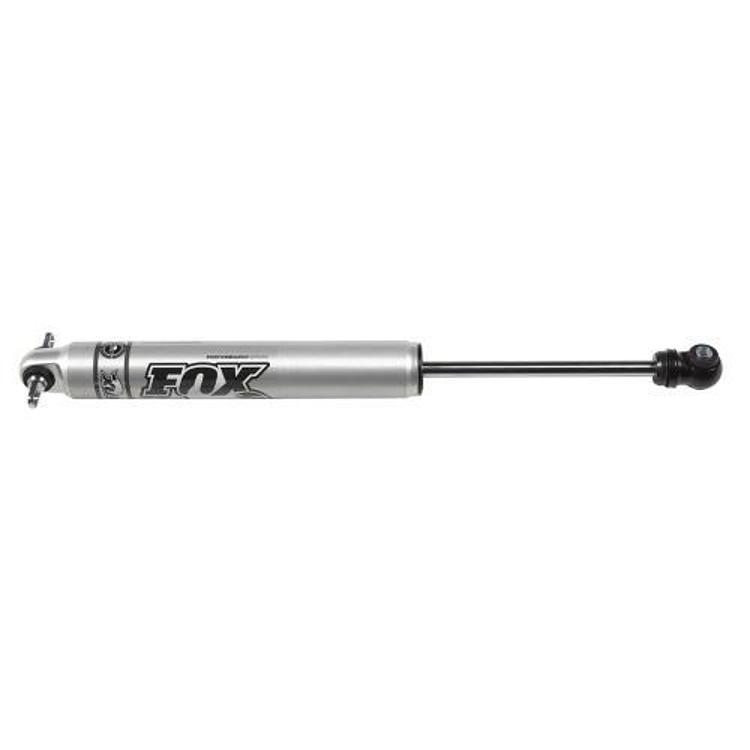

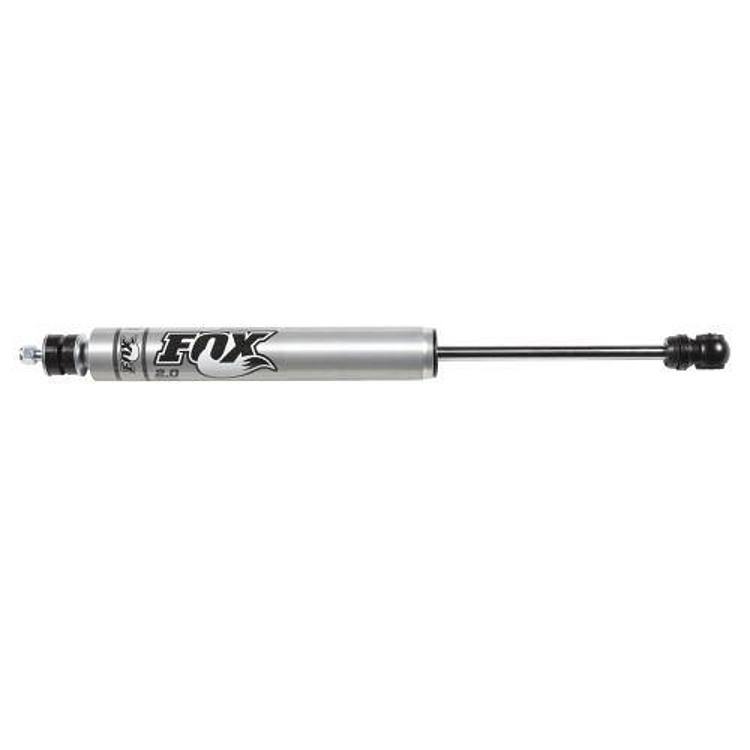

  • Front and rear Fox Performance shocks included
  • Full width transmission crossmember

Choosing the right setup

A radius long arm system controls axle movement front and rear, so the way the arms are set up affects steering feel and how the vehicle tracks on the road. Owners who run larger tires often pair this type of lift with a steering stabilizer check and a review of track width, since the wheels sit further out after a lift.

Shock and bushing care go hand in hand with a long arm system. Check the shock mounting bolts after the first few drives, and look at the rubber bushings for cracks or splits. Worn bushings let the arms wander, which shows up as uneven tire wear and a loose feeling at highway speed. Replacing the bushings as a set keeps the arms behaving evenly.

  • Steering stabilizer condition
  • Tire size and track width
  • Driveline angle after the lift
  • Shock mount and bushing checks

Specifications

Brand Rubicon Express
UPC 700008204211
Lift height 3.5 inch; the fitment table gives a 2.5 to 3.5 inch range
Suspension type 4-link front and rear radius long arm
Control arms Chromoly, adjustable
Ball joints Super-flex spherical
Bushings PT-MEG super-ride
Shocks Fox Performance, front and rear, included
Crossmember Full width transmission crossmember
Welding None required

Vehicle fitment

The kit is built for the Jeep Wrangler JK, covering the 2007-2018 model years.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Raising a JK with a long arm system changes its alignment and driveline angles, so have both checked after installation. No welding is required for installation.

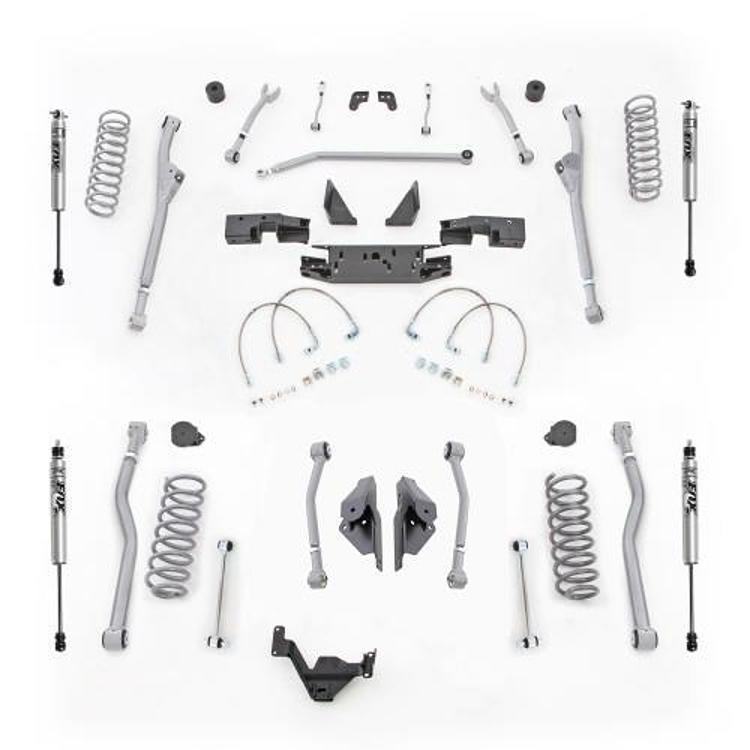

What’s included

The chromoly control arms, super-flex ball joints, PT-MEG bushings, full width transmission crossmember and front and rear Fox Performance shocks.

SKU: R/EJKR423FP Category:

Specification

Shipping weight 290.20 lbs
Package dimensions 0.00 × 0.00 × 0.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (JK) likely fits2007–2018All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does this 3.5 inch radius kit fit a Jeep JK?

Yes. It is built for the Jeep Wrangler JK, covering the 2007-2018 model years. The kit is a 4-link radius long arm suspension with front and rear arms, so it is a JK kit for Jeep JK owners.

Does the kit include Fox shocks?

Yes. Front and rear Fox Performance shocks are included with the kit. Fox Performance Series shocks are covered by the Fox warranty and do not qualify for the Rubicon Express Advantage Warranty.

Does this kit require welding?

No. The kit needs no welding for installation, and it includes a full width transmission crossmember. Check the crossmember and mounting hardware against your installation before starting.

Do long arm lifts need a steering or driveline check?

Yes. Long arm lifts change steering geometry and driveline angles, so inspect the steering components and driveshaft after installation. Look for binding, vibration or unusual tire wear during the first drives, and correct any issue before highway use.
