Rubicon Express 3.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar with Twin Tube Shocks – RE7203T

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch long arm lift, 3 to 4.99 inches of range
  • Chromoly long arms with adjustable control arms
  • Twin tube shocks and rear track bar included
  • Front and rear stainless brake lines included
  • Built for the Jeep TJ

Description

Overview

The Rubicon Express 3.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Track Bar and Twin Tube Shocks (part number RE7203T) is a long arm suspension lift for the Jeep TJ. The listed lift height range is 3 to 4.99 inches, and the kit comes with twin tube shocks.

The long arms are longer than a standard short arm set, which improves lifted suspension geometry. The design adds stability on and off road, reduces torque roll and improves trail traction.

Key features

  • Chromoly long control arms
  • PT-Meg Super-Ride bushings for on- and off-road use
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Tuned lift springs
  • Twin tube shocks included
  • Rear track bar included
  • Front and rear stainless brake lines
  • Three-piece belly pan for transfer case and transmission access

Plumbing and belly pan clearance

Stainless brake lines run from the frame to the axle, and a longer suspension moves the lines through a wider arc. Check that the lines have enough slack for full compression and droop, that they do not rub the frame or the arms, and that the fittings are not under tension at either end of travel.

The three-piece belly pan protects the transfer case and transmission but needs room to sit clear of the new arms and crossmember area. Once the kit is in, check the pan at full travel and after the first few drives, and tighten any fasteners that have loosened.

  • Look for rubbing at brake line brackets
  • Confirm the pan clears the transfer case
  • Recheck fasteners after the first drive

Specifications

Brand Rubicon Express
Part number RE7203T
Lift height range 3 to 4.99 inches
Suspension type Extreme-Duty long arm
Rear lift method Coil springs
Shock absorbers Twin tube, included
Track bar Rear, included
Brake lines Front and rear stainless
Fitment type Direct fit

Vehicle fitment

The kit fits the 1997–2006 Jeep Wrangler (TJ) with no trim limit.

The LJ, JK and JL Wranglers are not covered by this kit, and the Gladiator is not covered either. Confirm your vehicle’s year, model and trim before ordering.

Installation notes

A long arm system replaces the factory control arms and changes the suspension geometry. Set the alignment and check the driveline angles after installation, and confirm the belly pan clears the transfer case and transmission.

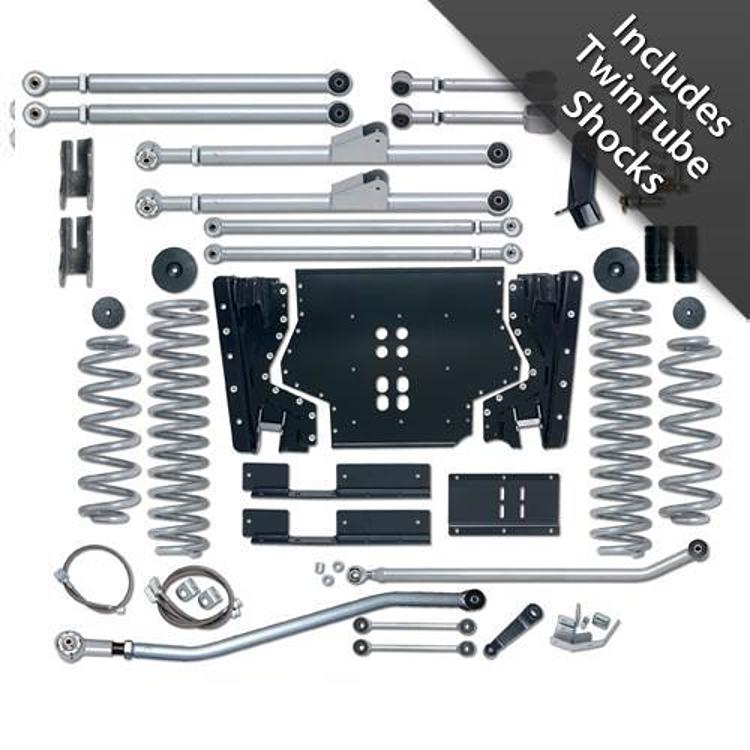

What’s included

Chromoly long arms with PT-Meg bushings and Super-Flex spherical ball joints, tuned lift springs, a rear track bar, twin tube shocks, front and rear stainless brake lines and a three-piece belly pan.

SKU: R/ERE7203T Category:

Specification

Shipping weight 347.45 lbs
Package dimensions 48.00 × 24.50 × 24.50 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ) likely fits1997–2006All

Vehicles marked "likely fits" are inferred from the product description rather than a manufacturer fitment list. Please confirm fitment with the manufacturer before ordering.

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Will the Rubicon Express RE7203T fit a 2001 Jeep Wrangler TJ?

Yes. A 2001 Wrangler TJ is within the 1997–2006 range this kit is built for, so it fits that model year. Confirm your vehicle's year, model and trim before ordering.

What lift height does the RE7203T provide?

This 3.5-inch long arm kit carries a 3 to 4.99 inch lift range, so the finished height depends on the springs and the installation.

Does the kit come with shocks and a track bar?

Yes. The kit includes twin tube shocks and a rear track bar, plus tuned lift springs and front and rear stainless brake lines. Compare the package contents with your installation plan before starting.

Should brake lines be inspected after a long arm install?

Yes. Check that the stainless lines have enough slack for full suspension travel and do not rub the frame or arms. Recheck routing after the first few drives.

Does a long arm kit change how the track bar works?

Yes, the track bar angle and the rear axle location both change with the lift. Check that the track bar bolts are tight and that the bar does not bind at full travel.
