Rubicon Express 4.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link and Mono Tube Shocks – RE7504M

Rubicon Express

Shop Jeep Wrangler TJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7504M 4.5 inch Extreme-Duty long arm lift kit with rear Tri-Link and mono tube shocks
  • Listed fit: 1997–2002 Jeep Wrangler TJ
  • Chromoly long arms, Builder Ball misalignment joint and Super-Flex spherical ball joints
  • Mono tube shocks included; lift range 3 to 4.99 inches

Description

Overview

The Rubicon Express RE7504M is a 4.5-inch Extreme-Duty long arm lift kit with a rear Tri-Link and mono tube shocks, made for the 1997–2002 Jeep Wrangler TJ. It sits in the 3 to 4.99-inch lift range.

The long arm design replaces the stock suspension arms with longer control arms, which improves the geometry of a lifted vehicle. The longer arms give more stability on and off road than standard short arm lifts, with less torque roll and better trail traction.

The rear Tri-Link replaces the rear track bar, so the axle moves up and down without the side constraint of a bar. The link adds anti-squat for steep climbs and improves tracking on the road. Mono tube shocks are included with this version of the kit.

Key features

  • Chromoly long arms made from 4130 chromoly tubing
  • Rear Tri-Link in place of the rear track bar
  • Builder Ball misalignment joint, rated by Rubicon Express for up to 32 degrees of misalignment

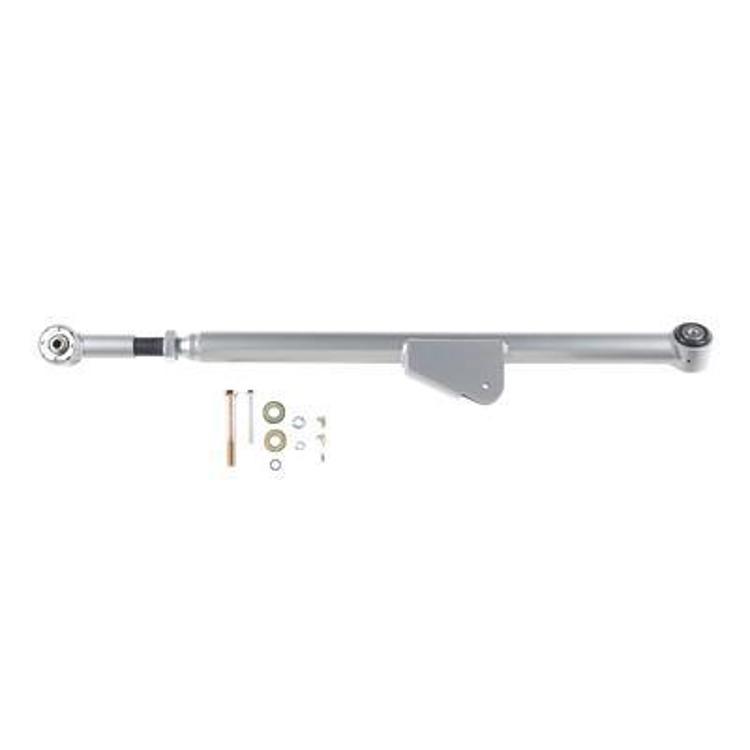

  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • PT-Meg Super-Ride bushings

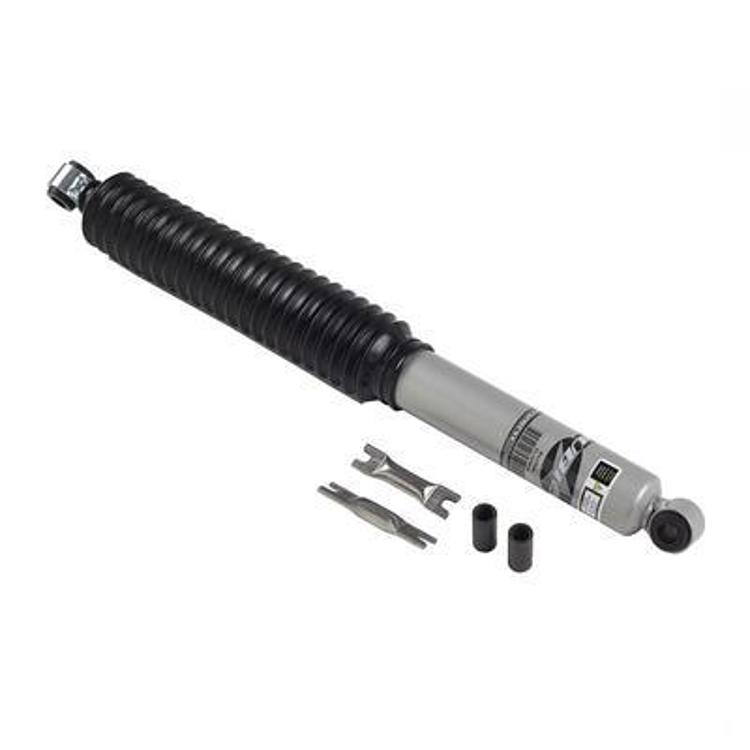

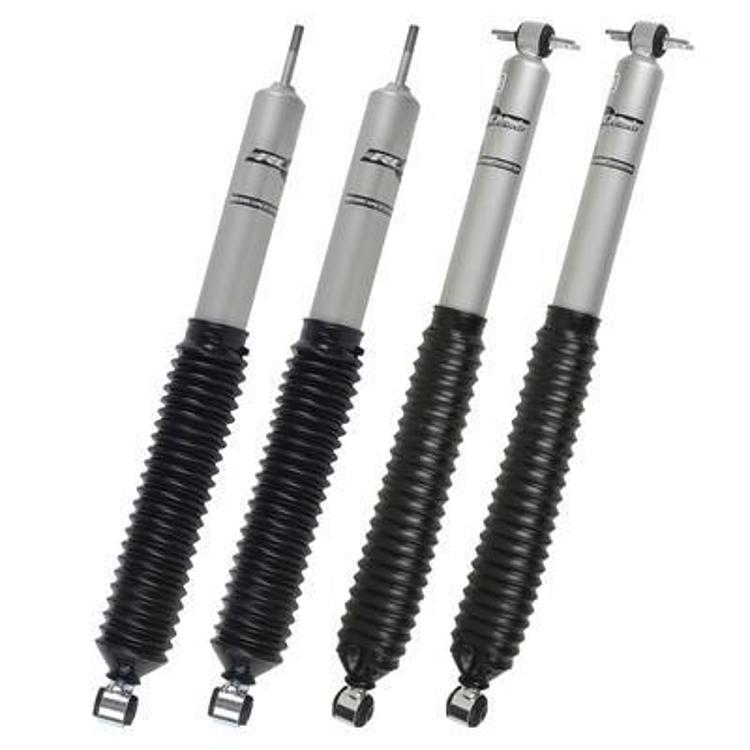

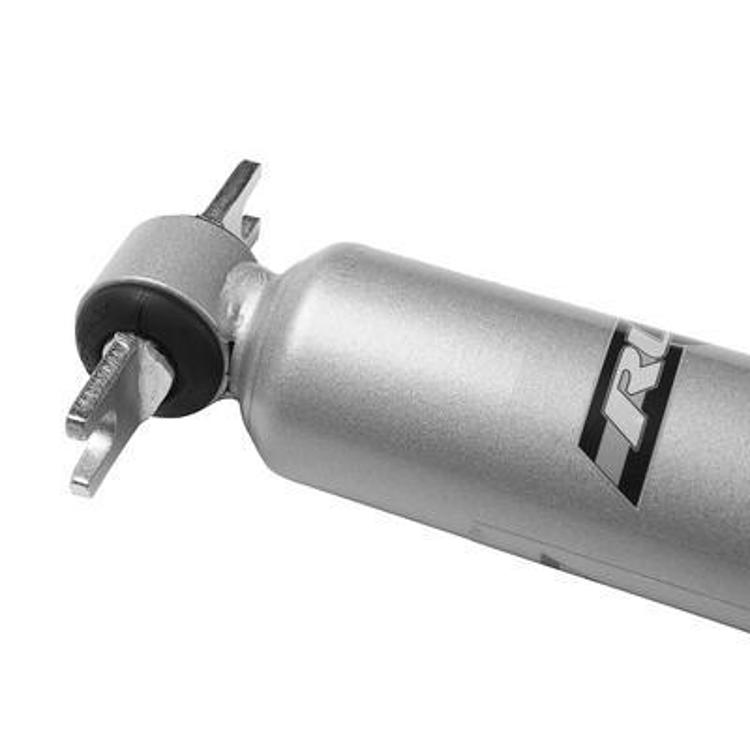

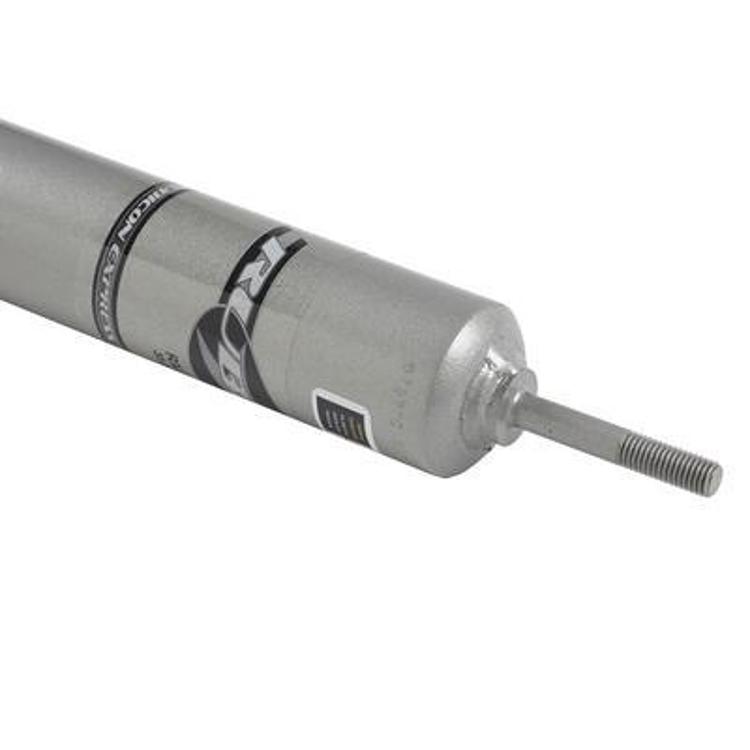

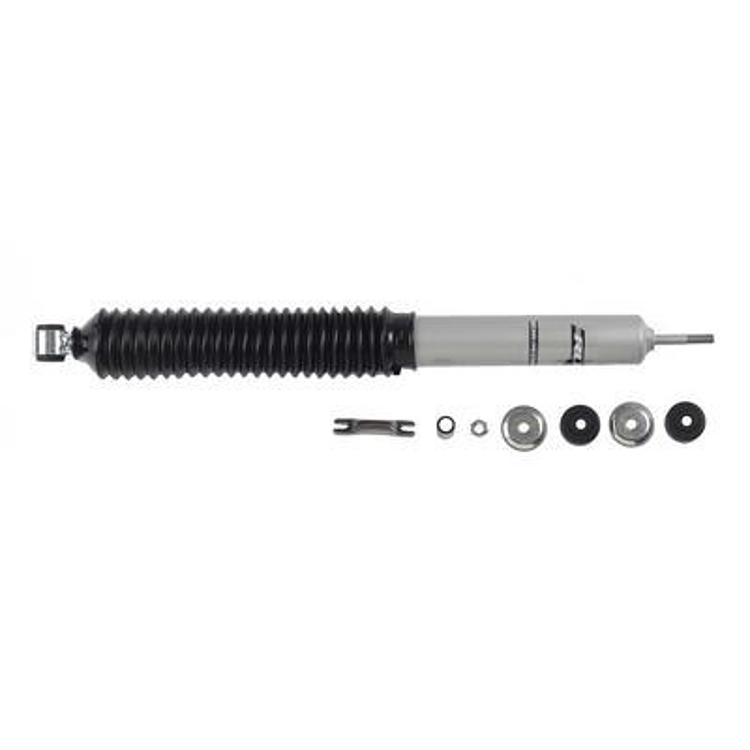

  • Mono tube shocks included
  • Tuned lift springs and stainless steel brake lines

Long arm alignment basics

Long arm kits move the axle mounting points, so the pinion angle and steering geometry change. Driveline vibration at highway speed is often the first sign of an angle that needs work. A tire rotation and a driveshaft inspection are simple places to start, and a shop with lift experience can measure the angles precisely.

Once a Tri-Link is in place, the bushings and joints carry more load at the rear end. Look for torn boots on the Builder Ball and heat or noise from the bushings during routine service. Greasing the joints and inspecting the mounting bolts after the first few trail runs helps the system stay tight.

  • Inspect the Builder Ball boot and housing
  • Recheck Tri-Link bolts after the first trail runs
  • Measure pinion angle after the long arms go in
  • Check brake hose length at full droop

Specifications

Brand Rubicon Express
Part number RE7504M
UPC 614901452938
Lift height range 3 to 4.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing

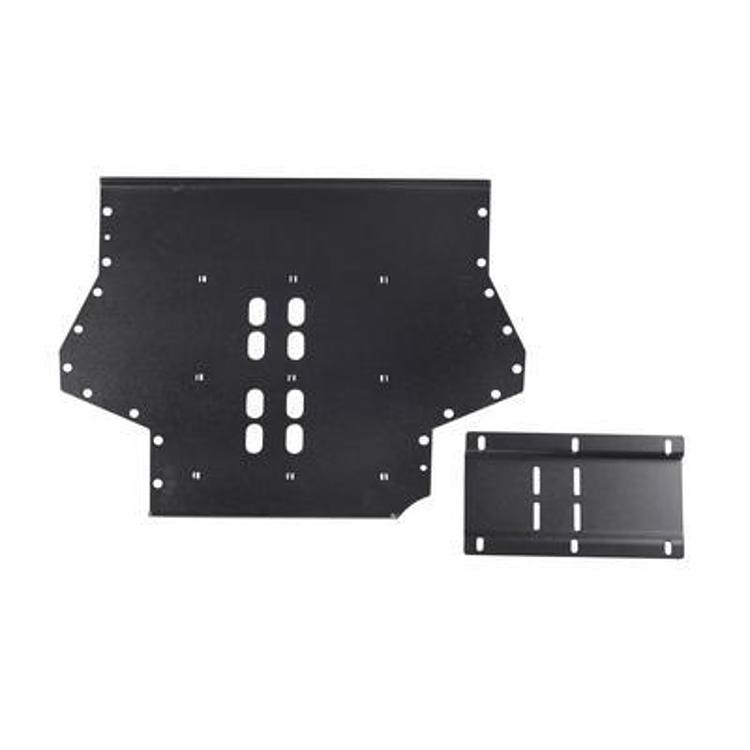

Belly pan Three-piece, for transfer case and transmission access
Shocks included Yes, mono tube
Fitment Direct fit

Vehicle fitment

It fits the 1997–2002 Jeep Wrangler (TJ), including the SE, Sahara and Sport models.

Confirm your vehicle’s year, model and trim before ordering, including whether it is a 2003–2006 TJ, JK or YJ.

Installation notes

The kit is a full long arm replacement, so alignment and driveline angles need checking after installation. It is bolt-on for factory Dana 35 and Dana 44 rear axles.

What’s included

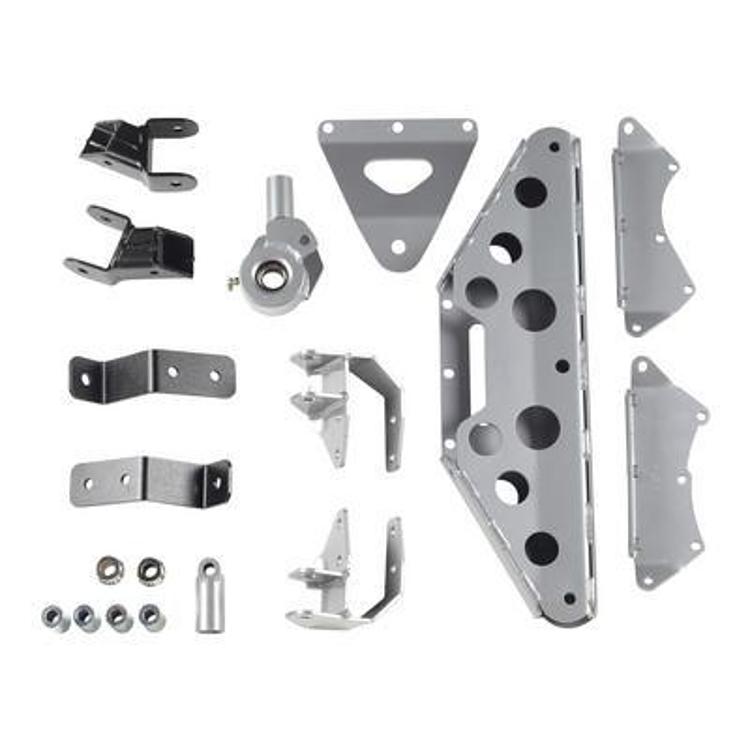

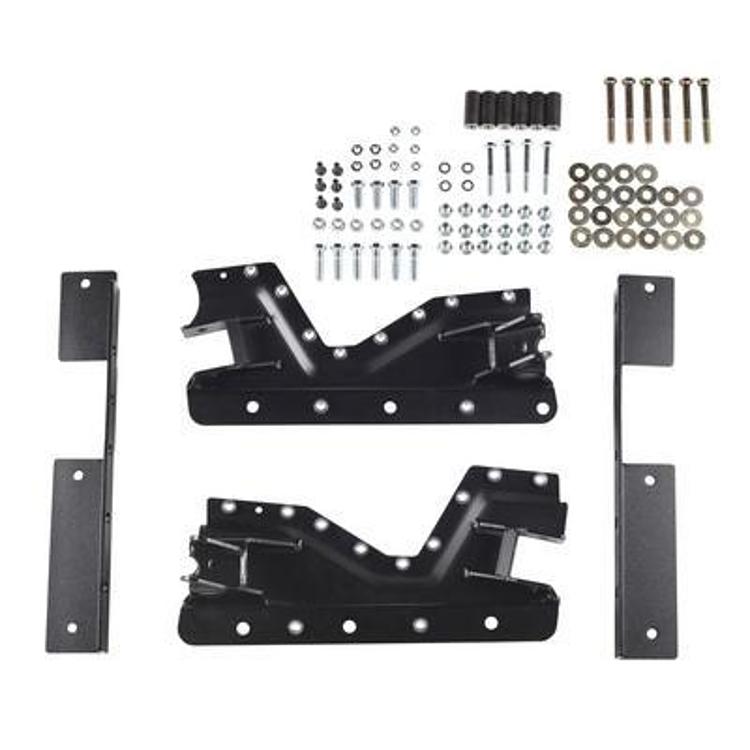

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, PT-Meg Super-Ride bushings, tuned lift springs, stainless steel brake lines, mono tube shocks and a three-piece belly pan.

SKU: R/ERE7504M Category:

Specification

Shipping weight 401.85 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (TJ)1997–2002SE, Sahara, Sport

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7504M include shocks?

Yes. Mono tube shocks are included, so the shock replacement is part of the same kit as the long arms and lift springs.

Is the RE7504M bolt-on for a Dana 35 or Dana 44?

Yes, the kit is bolt-on for factory Dana 35 and Dana 44 rear axles. Confirm your rear axle and vehicle's year, model and trim before ordering.

Does the RE7504M eliminate the rear track bar?

Yes. The rear Tri-Link replaces the track bar, and the Builder Ball is the misalignment joint that works with it.

How often should the Builder Ball be inspected?

Inspect it during routine service and after heavy off-road use. Look for a torn boot, grit in the housing or play in the joint, and replace the joint if movement feels loose.
