Overview
The Rubicon Express RE7140PT is a 2.5 inch super-flex suspension lift with twin tube shocks for the 2007–2018 Jeep Wrangler (JK) Unlimited four-door. The lift height range is 0 to 3.5 inches, and it is designed for 35-inch tires. It is a short arm system that keeps the factory mounting points and lowers the center of gravity compared with taller long arm kits.
The kit uses adjustable upper and lower control arms with PT-Meg bushings, serviceable super-flex joints, an adjustable front track bar and tuned progressive coil springs. The twin tube shocks are the damping choice in this version; the control arms, track bar and coil springs match the other RE7140 kits.
Key features
- 2.5 inch suspension lift

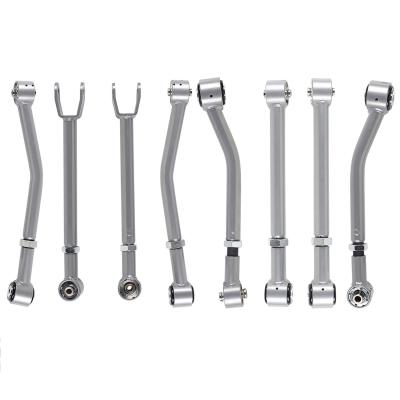

- Adjustable upper and lower control arms
- PT-Meg bushings and serviceable super-flex joints
- Adjustable front track bar

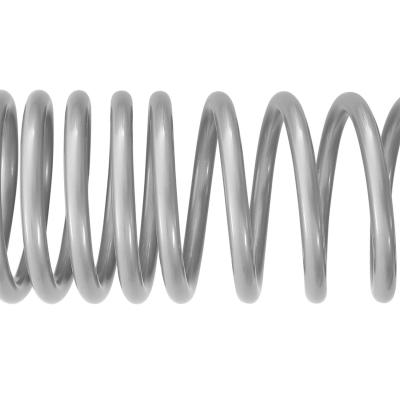

- Progressive coil springs with longer extended length for droop travel
- Twin tube shocks at the front and rear
- Shocks included with the kit
- It is a direct fit for the 2007–2018 Jeep Wrangler JK Unlimited four-door.

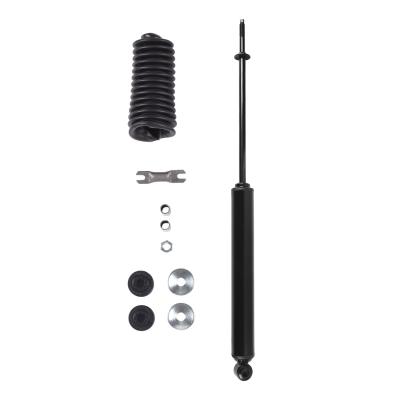

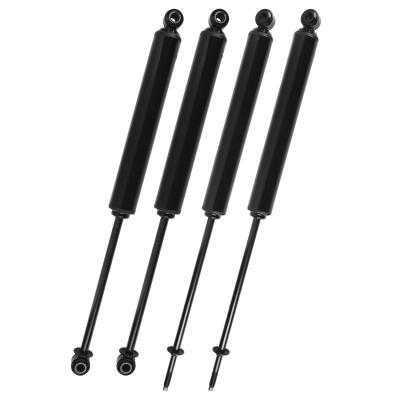

Twin tube shocks and damping
Twin tube shocks use an inner and outer tube with oil moving between them, a layout used on production vehicles for many years. They are a simpler design than many remote reservoir shocks, which many owners find straightforward to inspect. On this kit the shocks sit at both the front and rear, so the ride stays matched across the vehicle.
Changing control arms and coil springs changes the suspension geometry, so alignment and driveline angles should be checked after installation. Shock damping should suit the spring rate and the tire size, so avoid adding much larger tires without considering the overall setup. Look for oil on the shock bodies, uneven tire wear, or a ride that keeps bouncing after a bump as signs the shocks need attention.
Specifications
| Brand | Rubicon Express |
|---|---|
| Part number | RE7140PT |
| Suspension type | Lift kit, super-flex short arm |
| Lift amount | 2.5 inch suspension lift |
| Lift height range | 0 to 3.5 inches |
| Rear lift method | Coil springs |
| Front shocks | Twin tube |
| Rear shocks | Twin tube |
| Shocks included | Yes |
| Tire size | 35-inch |
Vehicle fitment
It fits the 2007–2018 Jeep Wrangler (JK) Unlimited four-door in 70th Anniversary, 75th Anniversary, Rubicon, Sahara, Sport, Sport S and X trims.
The list does not include two-door JK models or the 2018 and later JL. Confirm your vehicle’s year, model and trim before ordering.
Installation notes
Changing the control arms and coil springs changes the suspension geometry, so have the alignment and driveline angles checked after installation.

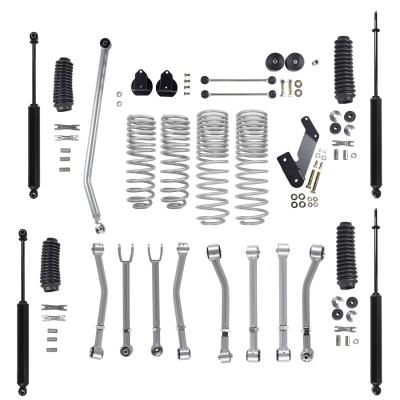

What’s included
Twin tube shocks are included with the control arms, track bar and coil springs. They are part of this kit, not an add-on. Check the hardware in the box against your installation before starting.
