Rubicon Express 5.5 Inch Extreme-Duty Long Arm Lift Kit with Rear Tri-Link – No Shocks – RE7525

Rubicon Express

Shop Jeep Wrangler LJ Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RE7525 5.5 inch Extreme-Duty long arm lift kit with rear Tri-Link, no shocks
  • Listed fit: 2004–2006 Jeep Wrangler LJ Unlimited and Unlimited Rubicon
  • Chromoly long arms, Builder Ball and adjustable control arms
  • Lift height range 5 to 6.99 inches; tuned lift springs

Description

Overview

The Rubicon Express RE7525 is a 5.5 inch Extreme-Duty long arm lift kit with a rear Tri-Link for the 2004–2006 Jeep Wrangler LJ Unlimited. The lift height range is 5 to 6.99 inches, and shocks are not included.

This is the LJ version of the long arm design used on the TJ. Longer control arms improve lifted geometry, adding stability on and off road, reducing torque roll and improving trail traction compared with short arm systems.

The Tri-Link replaces the rear track bar, letting the axle move straight up and down through its travel. It also adds anti-squat for steep climbs.

Key features

  • 5.5 inch lift with a listed range of 5 to 6.99 inches
  • Chromoly long arms built from 4130 chromoly tubing
  • Rear Tri-Link in place of the rear track bar
  • Builder Ball misalignment joint, rated for up to 32 degrees
  • Adjustable control arms with serviceable Super-Flex spherical ball joints
  • Tuned lift springs and PT-Meg Super-Ride bushings

Caring for long arm joints

Long arm joints carry the axle’s load at every corner, so they wear faster than stock joints when the vehicle sees repeated trail use. The serviceable Super-Flex ball joints can be greased, which keeps them moving freely and helps them last longer. Look at the boot seals regularly.

Inspect the Builder Ball joint and the Tri-Link ends when the Jeep is up on stands. Feel for play by hand, and check the bushings for cracks or separation from the metal sleeve. Clean mud and grit from the joints after deep water or wet trail days.

If a joint feels loose or a boot is torn, replace the part before the next trip rather than waiting for a noise to develop. Keep a record of service dates so the next check is easy to schedule.

  • Grease serviceable joints at each service
  • Check the Tri-Link ends after rough trails

Specifications

Brand Rubicon Express
Part number RE7525
UPC 614901442083
Lift height range 5 to 6.99 inches
Suspension type Long arm
Kit type Extreme-Duty long arm
Rear lift method 3-link (Tri-Link)
Control arm material 4130 chromoly, .250 wall
Misalignment joint Builder Ball, up to 32 degrees, 3 inch OD housing
Shocks included No
Fitment Direct fit

Vehicle fitment

It fits the 2004–2006 Jeep Wrangler (LJ), including the Unlimited and Unlimited Rubicon models.

Fit covers the Unlimited models only. Check trim and body style before you buy.

Installation notes

A 5 to 6.99 inch lift with long arms needs a driveline angle check and a full alignment after installation. The kit bolts on to factory Dana 35 and Dana 44 rear ends.

What’s included

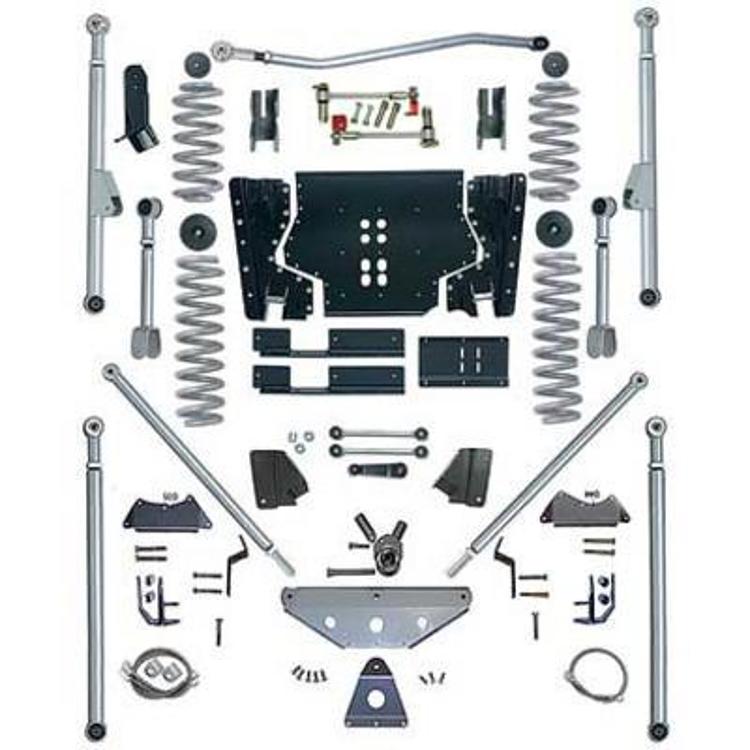

The kit includes front and rear control arms, the rear Tri-Link, the Builder Ball, tuned lift springs, PT-Meg Super-Ride bushings and a three-piece belly pan.

Not included: shocks.

SKU: R/ERE7525 Category:

Specification

Shipping weight 414.75 lbs
Package dimensions 48.00 × 24.00 × 24.00 in
brands

Fitment

VehicleYearsTrims
Jeep Wrangler (LJ)2004–2006Unlimited, Unlimited Rubicon

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the RE7525 include shocks?

No. Shocks are not included, so you will need your current shocks or a separate set that suits a 5 to 6.99 inch lift.

Does the RE7525 fit a 2005 Jeep Wrangler Unlimited?

Yes. It fits 2004 to 2006 Wrangler LJ Unlimited and Unlimited Rubicon models, so a 2005 Unlimited is covered. Check the trim before ordering.

How is the RE7525 different from the RE7524?

Both are Extreme-Duty long arm kits with a rear Tri-Link for the LJ. The RE7525 gives a 5 to 6.99 inch lift range, while the RE7524 is the lower-lift LJ kit in the same line.

Do serviceable Super-Flex joints need regular greasing?

Yes. Grease serviceable joints whenever the driveline is checked, and sooner after deep water or mud. Wipe grit from boots and look for leaks so the joints keep moving freely through their travel.
