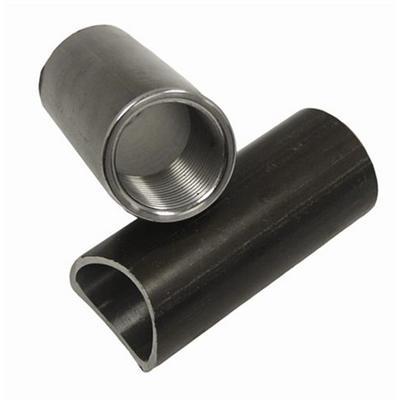

Rubicon Express 1″ Female Rod End Coupler – RM12040

Rubicon Express

$17.80In stock
Buy on Amazon

See similar parts on Amazon

Price and availability as of Nov 17, 2026 4:20 PM MST, from Amazon.com, and subject to change. The Amazon listing has the current details.

Check out with your Amazon account. Amazon handles delivery and returns.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • Rubicon Express RM12040 female rod end coupler, 1-inch thread
  • 1-inch-14 right-hand thread
  • Fits tube with 1-1/4-inch minimum inside diameter
  • Joint and jam nut not included

Description

Overview

The Rubicon Express RM12040 is a 1-inch female rod end coupler with a 1-inch-14 right-hand thread. It is made for replacing a damaged rod end on a tube with at least a 1-1/4-inch inside diameter.

It is sold as a single unit, and the joint is not included.

Key features

  • 1-inch-14 thread size
  • Right-hand thread direction
  • Minimum tube inside diameter of 1-1/4 inches
  • Joint not included
  • Jam nut not included

Installing a rod end coupler

A female coupler threads onto the end of a tube, and the rod end is threaded into the coupler, so the thread engagement determines how solid the joint feels. Clean the threads before assembly and check that the coupler turns smoothly by hand. Stop and recheck if it binds, since cross-threading ruins both parts.

Once the coupler is in place, the jam nut locks it against the tube so it cannot back out under load. Set the coupler’s length before tightening, and leave room for the joint to articulate freely. After the first drive, look at the jam nut and the coupler threads for movement or loosening.

  • Clean and lightly oil the threads before assembly
  • Set the length before the jam nut is tightened
  • Recheck the jam nut after the first few drives

Specifications

Brand Rubicon Express
Part number RM12040
Thread size 1 inch-14
Thread direction Right hand
Minimum tube inside diameter 1-1/4 inches
Jam nut Not included
Joint Not included

Vehicle fitment

No vehicle is named. The coupler is sized to a tube and thread, so the fit depends on the tube diameter and thread on your rod end rather than on a model.

Confirm the tube inside diameter and thread size on your rod end before ordering.

Installation notes

The jam nut and joint are sold separately, so have both on hand before the coupler goes in.

Questions & Answers

Is a jam nut included with the RM12040?

No. The jam nut is not included, so buy one separately to lock the coupler in place. Choose a jam nut that matches the 1-inch-14 thread.

What thread size does the RM12040 use?

It uses a 1-inch-14 thread with a right-hand direction. Measure the existing rod end thread before ordering, because a mismatched thread will not thread into the rod end.

What tube size does the RM12040 need?

The minimum tube inside diameter is 1-1/4 inches. A tube with a smaller inside diameter will not take this female coupler, so measure the tube before you order.

Can a worn female coupler be reused?

Check it first. Look for stripped threads, cracks around the tube joint or a loose fit on the rod end. If any of those are present, replace the coupler rather than trying to repair it, because a weak joint can fail under load.
