RockJock 1″ -14 Left Hand Threaded Bung – CE-9113BL1

RockJock 4x4

Shop RockJock 4X4 Tubing Tube Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 CE-9113BL1 weld-in 1 inch -14 left hand threaded bung
  • Hex shaped body for easier bar adjustment, not round
  • Designed to fit a tube with a 1 1/4 inch inside diameter
  • Made for forged Johnny Joint rod ends and other 1 inch -14 rod ends
  • Universal fit, with no vehicle named

Description

Overview

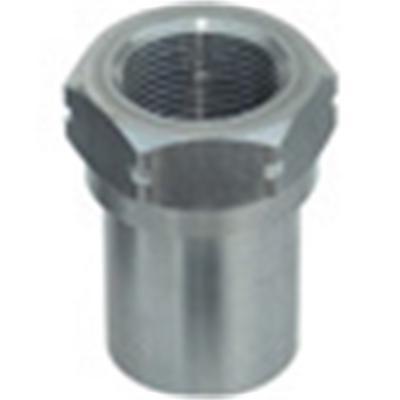

The RockJock 4×4 CE-9113BL1 is a custom machined, weld-in threaded bung with a 1 inch -14 left hand thread. It is made for forged Johnny Joint rod ends and for any other 1 inch -14 thread rod end. Its hex shape, rather than a round body, makes bar adjustment easier.

The bung is designed to fit into a tube with a 1 1/4 inch inside diameter. Part number R/JCE-9113BL1 identifies this model.

Key features

  • Custom machined weld-in design
  • Hex shape for easier bar adjustment
  • Left hand thread, 1 inch -14
  • Made for forged Johnny Joint rod ends and other 1 inch -14 rod ends

Weld-in bung considerations

A weld-in bung turns a tube into a threaded mounting point, which lets a rod end be adjusted and locked in place. Because the bung takes the load of the rod end, its position in the tube and the quality of the weld matter as much as the thread. Measure the tube and mark the bung position before cutting or welding, so the rod end can reach its full range.

Keep the bung threads clean and free of weld spatter before fitting a rod end. Spatter can damage threads and make the adjustment hard to set. After installation, check that the bung is square to the tube and that the rod end turns freely through its full travel.

  • Mark the bung position before cutting the tube
  • Clear weld spatter from the threads
  • Check that the rod end turns freely after fitting

Specifications

Brand RockJock 4×4
Part number R/JCE-9113BL1
Thread size 1 inch -14
Thread direction Left hand
Body shape Hex, not round
Tube inside diameter 1 1/4 inch
Fitment Universal fit

Vehicle fitment

It is a universal part, not tied to one make, model or year. Check that the rod end thread matches before welding. Confirm fit for your vehicle’s year, model and trim before ordering.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

This is a weld-in part, so it is welded into the tube rather than bolted on. Get the weld done by a qualified welder, since the bung carries load through the rod end.

What’s included

One weld-in bung.

Not included: the rod end, which threads into the bung.

SKU: R/JCE-9113BL1 Categories: , ,

Questions & Answers

Is the CE-9113BL1 left hand or right hand?

Left hand. The title, thread direction and description all describe a 1 inch -14 left hand thread on this weld-in bung, part number R/JCE-9113BL1. Match it to a left hand rod end.

Which rod ends does it work with?

It works with forged Johnny Joint rod ends and any other 1 inch -14 thread rod end. Check the thread size before welding.

What tube size does it need?

It fits into a tube with a 1 1/4 inch inside diameter. Plan to source the rod end and any jam nut separately, since they are not included.

What should I check on the weld after install?

Look for cracks, pinholes, or uneven beads around the bung, and confirm the weld covers the joint fully. Any sign of cracking means the weld should be redone before the bung is loaded.
