RockJock 1-1/4 Inch -12 Threaded Bung RH Thread – CE-9114BR

RockJock 4x4

Shop RockJock 4X4 Tubing Tube Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 CE-9114BR 1 1/4 inch -12 right hand threaded bung
  • Weld-in design for a tube with 1 1/2 inch minimum inside diameter
  • Built for forged Johnny Joint rod ends or any 1 1/4 inch rod end
  • Jam nut not included
  • Universal fit, with no specific car tied to it

Description

Overview

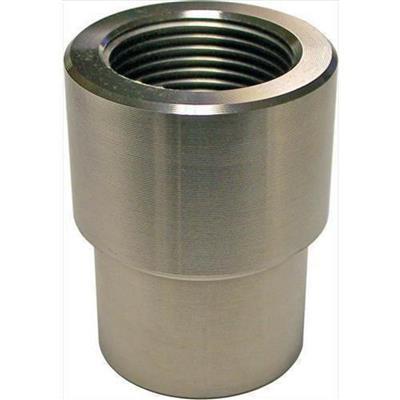

The RockJock 4×4 CE-9114BR is a custom machined, weld-in threaded bung with a 1 1/4 inch -12 right hand thread. It is built for forged Johnny Joint rod ends or any other 1 1/4 inch thread rod end, and it fits a tube with a 1 1/2 inch inside diameter. Jam nut not included.

Part number R/JCE-9114BR identifies the right hand version of this bung.

Key features

  • Custom machined weld-in design
  • Right hand thread, 1 1/4 inch -12
  • Minimum tube inside diameter of 1 1/2 inch
  • Built for Johnny Joint rod ends and other 1 1/4 inch thread rod ends

Welded threads and load paths

A threaded bung transfers the pull and push of a rod end into the tube, so the weld is what carries the load. Good fit-up matters more than a large weld bead. The bung should sit flush against the tube wall with no gaps, and the weld should cover the full joint around the bung. Let the assembly cool naturally, since fast quenching can weaken the surrounding metal.

Consider the rod end and jam nut together as one system. A right hand bung paired with a right hand rod end tightens in the same direction as the rest of the linkage, which keeps adjustment straightforward. Check the threads after welding for spatter or distortion, and run the jam nut on by hand before torquing. Inspect the weld periodically for cracks, especially after hard use.

Specifications

Brand RockJock 4×4
Part number R/JCE-9114BR
Thread size 1 1/4 inch -12
Thread direction Right hand
Minimum tube inside diameter 1 1/2 inch
Jam nut included No
Unit Each
Fitment Universal fit

Vehicle fitment

No specific car is tied to this bung; it is universal fit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

Match the thread direction to your rod end before welding, since this bung is right hand thread. Have the weld made by a welder experienced with tubing under vehicle loads.

What’s included

One weld-in bung.

Not included: the jam nut and the rod end.

SKU: R/JCE-9114BR Categories: , ,

Questions & Answers

Is the CE-9114BR right hand or left hand?

It is right hand. The thread is 1 1/4 inch -12, part number R/JCE-9114BR from RockJock 4x4. Confirm the thread on your rod end before welding the bung into the tube.

Does it come with a jam nut?

No, the jam nut is not included. You need a matching 1 1/4 inch -12 jam nut in right hand thread to lock the rod end once the bung is in place.

What tube size does it fit?

It is made for a tube with a 1 1/2 inch inside diameter, which is the minimum tube inside diameter. It is a weld-in part, not a bolt-on, so the bung is welded into the tube.

What should be checked on a bung after welding?

Check the internal threads for spatter, distortion or heat damage, and look at the weld for cracks or gaps. Run the jam nut and rod end on by hand to confirm smooth engagement before the joint sees load.
