RockJock 1 Inch -14 Threaded Bung With Jam Nut – LH Thread – CE-9113BL

RockJock 4x4

Shop RockJock 4X4 Tubing Tube Adapters on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • RockJock 4×4 weld-in bung, part number R/JCE-9113BL
  • Left hand, 1 inch – 14 thread
  • Hex shaped with a matching machined jam nut
  • Designed for tubing with a 1-1/4 inch minimum ID
  • Takes Johnny Joint or other 1 inch thread rod ends

Description

Overview

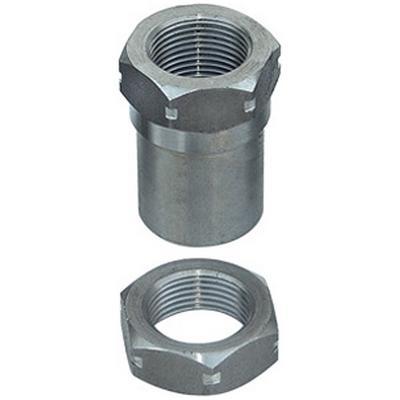

The RockJock 1 Inch -14 Threaded Bung With Jam Nut, left hand thread (part number R/JCE-9113BL), is a weld-in bung that accepts a 1 inch -14 rod end, such as a forged Johnny Joint or any other 1 inch thread rod end. It is intended for adjustable bars and links where the rod end is turned in and out to set length.

The bung is hex shaped rather than round, which makes it easier to turn when adjusting a bar. RockJock includes a custom machined jam nut with the same hex size. The bung is designed to fit into tubing with a 1 1/4 inch inside diameter.

Key features

  • Hex shape for easier bar adjustment
  • Left hand thread
  • Custom machined jam nut included
  • Weld-in design
  • Takes forged Johnny Joint or other 1 inch thread rod ends

Setting and locking bar length

A threaded bung is the adjustable point in a link or bar. Turning the rod end in or out changes the overall length, which lets a builder set alignment geometry without replacing the bar. Once the length is right, the jam nut is tightened against the bung so the rod end cannot back out under load. Recheck the jam nut after each change in setting and after the first few trail outings, since vibration can loosen it.

Because the bung is welded into the tube, the tube wall and the weld quality decide how well the assembly holds up. Inspect the weld for cracks after heavy use and look over the threads for damage before reusing a rod end. Left and right hand threads are common on paired links, so keep track of which bung goes on which end of the bar.

  • Mark the thread position before adjusting length
  • Retighten the jam nut after every setting change
  • Inspect the weld and tube for cracks periodically
  • Clean and grease rod end threads before installing

Specifications

Brand RockJock 4×4
Part number R/JCE-9113BL
Thread size 1 inch – 14
Thread direction Left hand
Minimum tube ID 1-1/4 inches
Shape Hex
Jam nut Included
Fitment Universal fit

Vehicle fitment

This bung is universal fit and is not built for a particular vehicle. Its use depends on the bar or link it is welded into, so match the thread size and tube diameter to your build.

Installation notes

This is a weld-in bung, so it is welded into the tube. It is designed for a tube with a 1 1/4 inch inside diameter, so confirm your tubing matches before welding.

What’s included

The bung and its custom machined jam nut are included.

Not included: The rod end, such as a forged Johnny Joint, which the bung is designed to accept.

SKU: R/JCE-9113BL Categories: , ,

Questions & Answers

Is the RockJock CE-9113BL left or right hand thread?

It is a left hand thread. The title and specifications list a 1 inch - 14 thread, and the bung is meant to take a 1 inch thread rod end such as a forged Johnny Joint.

What tube size does the CE-9113BL fit?

The bung is designed for a tube with a 1 1/4 inch inside diameter, which matches its minimum tube ID listing. It is a weld-in bung, so it is welded into the tube.

Does it come with a jam nut?

Yes. A custom machined jam nut is included, and it has the same hex size as the bung, which makes it easy to lock the rod end once the length is set.

How do I know when the jam nut needs replacing?

Replace the jam nut if its threads are stripped or it no longer holds the rod end firmly. Look at the bung threads and the surrounding weld for cracking, rust or distortion as well. Any visible crack means the bar should be inspected before further use.

Can this bung be used on a different tube size?

Use it only on tubing with the 1 1/4 inch inside diameter it is built for. A different tube size may not seat the bung square for welding. Confirm the tube fit before cutting or welding, and check the thread of any rod end you plan to install.
