Overview

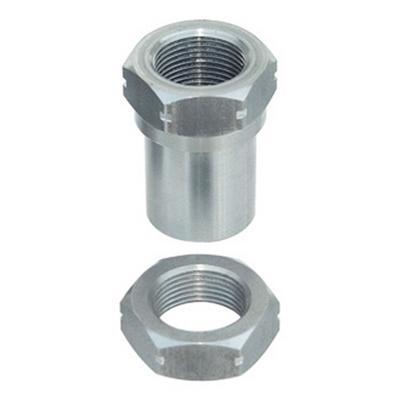

The RockJock 1-1/4 Inch -12 Threaded Bung With Jam Nut, left hand thread (part number R/JCE-9114BL), is a larger weld-in bung for a 1-1/4 inch -12 rod end. It is designed for tubing with a 1 1/2 inch inside diameter and accepts a forged Johnny Joint or any other 1 1/4 inch thread rod end.
Like the smaller RockJock bungs, the body is hex shaped rather than round, so the bar can be adjusted by turning it with a wrench. A custom machined jam nut of the same hex size is included to lock the setting once the length is correct.
Key features
- Hex shape for easier bar adjustment
- Left hand thread
- Custom machined jam nut included
- Weld-in design for 1 1/2 inch inside diameter tubing
- Takes forged Johnny Joint or other 1-1/4 inch thread rod ends
Choosing rod ends for larger bars
Larger bungs carry more load than smaller ones, so the rod end and the bar both need to suit the expected stress. Heavier builds and bars that articulate often put strain on the threads, which makes thread engagement and the jam nut especially important. Select a rod end whose shank and thread strength fit the bar rather than choosing on thread size alone.
Welding a large bung into heavier tube calls for careful heat control and a clean joint. Weld distortion can shift thread alignment, so check that the bung sits square to the tube before the weld cools. After installation, inspect the bung and jam nut for wear and corrosion, and keep the threads greased so the length can still be adjusted without seizing.
- Check thread engagement on the rod end
- Grease threads before setting length
- Inspect welds after heavy trail use
- Match rod end strength to the bar’s load path
Specifications
| Brand | RockJock 4×4 |
|---|---|
| Part number | R/JCE-9114BL |
| Thread size | 1-1/4 inches – 12 |
| Thread direction | Left hand |
| Minimum tube ID | 1-1/2 inches |
| Shape | Hex |
| Jam nut | Included |
| Fitment | Universal fit |
Vehicle fitment
This bung is universal fit and is not built for a particular vehicle. Match the 1-1/4 inch thread and the 1 1/2 inch tube size to the bar you are building.
Installation notes
This bung is welded into the tube, so the tube must be the 1 1/2 inch inside diameter it is designed for. Measure the tubing before you start welding.
What’s included
The bung and its custom machined jam nut are included.
Not included: The rod end, such as a 1-1/4 inch thread Johnny Joint.
