Overview
The Rough Country 2-inch Toyota suspension lift kit in aluminum, part number R/C767, is made for 4Runners equipped with the X-REAS system. It covers the 2010–2024 Toyota 4Runner and adds front strut extensions, rear coil spring spacers and shock extensions to level the vehicle and add ground clearance.
This kit fits only X-REAS equipped models. For 4Runners without X-REAS, the R/C764 kit is the right choice. The shock extensions are what set this kit apart from the non-X-REAS version.
Key features
- Aluminum front strut extensions
- Rear coil spring spacers for a level stance
- Shock extensions for X-REAS equipped models
- No need to disassemble the struts to install
- Hardware included
- Listed lift height range of 0 to 3.5 inches
Shock extensions explained
Shock extensions lengthen the shock body so it can work at the raised height, which keeps the damper from running out of travel. On an X-REAS equipped truck, the system also controls the dampers electronically, so confirm the installation keeps any sensors and wiring clear of the new parts. Because the shocks are changed, it is worth checking that they still control the body well after the install.
Aluminum parts save weight compared with steel, which helps keep the lift from adding excess load to the front end. Strut extensions and spacers generally raise the front without changing the spring or damper inside the strut, so the ride is based on the stock components. Inspect the mounts and bump stops after the first few weeks of driving.
- Check shock extension clearance at full compression
- Inspect wiring and sensor leads after installation
- Confirm alignment after the lift is complete
- Recheck hardware torque after the first drives
Specifications
| Brand | Rough Country |
|---|---|
| Part number | R/C767 |
| Material | Aluminum |
| Front lift component | Strut extension |
| Rear lift component | Coil spring spacer |
| Shock extensions | Included |
| Lift height range | 0 to 3.5 inches |
| Fitment type | Direct fit |
Vehicle fitment
It fits the 2010–2024 Toyota 4Runner equipped with the X-REAS system.
Non-X-REAS 4Runners should use the R/C764 kit. Confirm the X-REAS system on your vehicle before ordering, since the year ranges are not split by equipment.
Confirm your vehicle’s year, model and trim before ordering.
Installation notes
The kit includes shock extensions, so the shocks are installed with the extensions in place. Check strut and shock clearances after installation.
What’s included

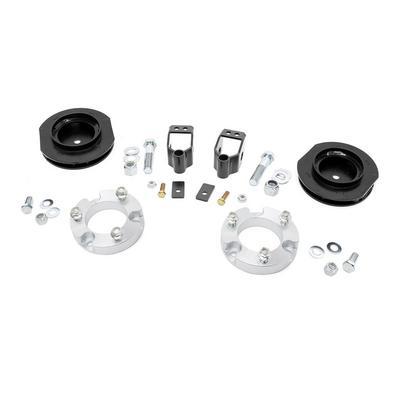

Aluminum front strut extensions, rear coil spring spacers, shock extensions and hardware.
