Rough Country 3.5″ Bolt-On Lift Kit – 74231

Rough Country

Shop Toyota Tacoma Lift Kits on Amazon

Compare current versions and compatible options on Amazon, then check out with your Amazon account.

Slickrock 4X4 is a participant in the Amazon Associates Program. As an Amazon Associate we earn from qualifying purchases.

  • 3.5-inch bolt-on lift for 2005–2023 Toyota Tacoma
  • Tubular upper control arms with Clevite bushings
  • N3 nitrogen-charged shocks and loaded N3 struts
  • Fabricated rear blocks
  • Requires minor cutting and drilling

Description

Overview

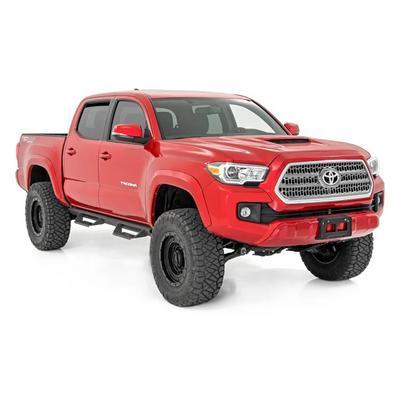

The Rough Country 3.5-inch bolt-on suspension lift kit, part number R/C74231, fits the 2005–2023 Toyota Tacoma. It raises the truck with loaded N3 struts and fabricated rear blocks, and the included upper control arms are tubular with Clevite rubber bushings.

The kit includes N3 nitrogen-charged shocks, which the brand says give ride quality on and off the pavement. The upper control arms are designed to keep the ball joint at optimum angles after lifting, which the brand says gives better range of motion with less stress, wear and tear.

Installation is a bolt-on process that requires minor cutting and drilling. It can be done with common tools in a home garage, and the truck can be returned to stock at any time.

Loaded struts combine the shock, spring and mount into one assembly, so the front is changed as a unit. The fabricated rear blocks are the rear lift component, and they add height between the springs and the axle.

Key features

  • Tubular upper control arms designed for better ball joint angles
  • Clevite rubber bushings for durability
  • Loaded N3 struts at the front
  • Fabricated rear blocks for lift height from front to rear
  • N3 nitrogen-charged shocks
  • Lifetime replacement warranty

Alignment and front geometry

A lift this size moves the lower control arm angles, steering geometry and caster. Tubular upper control arms help restore ball joint angles, but the alignment still needs to be set on the finished truck. Caster and toe are the settings most likely to drift on a lifted Tacoma, and uneven tire wear along one shoulder is the usual sign.

Loaded struts replace the shock, spring and mount as a unit, so the old front assembly should be inspected before it comes off. Check sway bar end links and brake hoses for stretch once the front is raised. Replacing worn tie rod ends at the same time is practical when the front end is already apart.

  • Measure caster and toe after installation
  • Inspect sway bar end links for play
  • Check brake hoses for tension at full droop

Specifications

Brand Rough Country
Part number R/C74231
Lift size 3.5 inches
Upper control arms Tubular, with Clevite rubber bushings
Front components Loaded N3 struts
Rear components Fabricated blocks
Shock type N3 nitrogen-charged
Installation Bolt-on, minor cutting and drilling
Fitment type Direct fit

Vehicle fitment

It fits the 2005–2023 Toyota Tacoma, including the Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail and X-Runner versions.

Toyota models other than the Tacoma are not on the list, and the years listed are the only ones covered by the kit.

Confirm your vehicle’s year, model and trim before ordering.

Installation notes

The install requires minor cutting and drilling, so plan for that work before starting. Have the alignment checked after the lift is installed, since the upper control arms change the front geometry.

What’s included

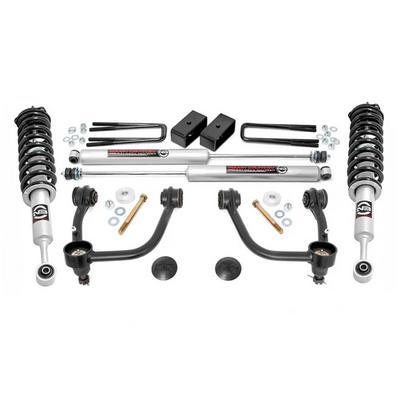

Tubular upper control arms with bushings, loaded N3 struts, fabricated rear blocks and N3 shocks.

SKU: R/C74231 Categories: ,

Fitment

VehicleYearsTrims
Toyota Tacoma2005–2023Base, Limited, Pre Runner, SR, SR5, TRD Off-Road, TRD Pro, TRD Sport, Trail, X-Runner

Use “Select your vehicle” at the top of the page to check this part against your vehicle.

Questions & Answers

Does the Rough Country R/C74231 fit a 2015 Toyota Tacoma?

Yes. It fits 2005–2023 Toyota Tacoma models, which includes 2015. Check the year, model and trim against your Tacoma before ordering.

Does this kit require drilling?

Yes, minor cutting and drilling is required. The rest of the installation is a bolt-on process that can be completed with common tools in a home garage.

What shocks come with the kit?

The kit includes N3 nitrogen-charged shocks, and the loaded N3 struts are also included at the front of the truck.

Is this a good time to replace the upper strut mounts?

Yes. The upper strut mount and bearing are easy to replace while the assembly is out. Look for cracking or binding in the mount, since a worn bearing can make the steering feel loose.

How long do the rubber bushings in the upper arms last?

Bushing life depends on driving conditions and off-road use. Inspect the bushings for cracks, tears and looseness at each service, and replace them if the arm moves on the mount or the steering feels vague.
